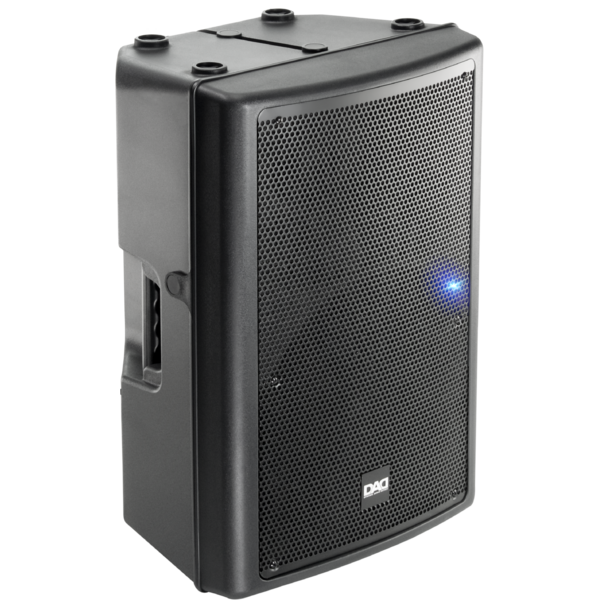

LIVE12A
Share me

Immagine Principale
  • LIVE12A
  • LIVE12A
  • LIVE12A
  • LIVE12A
  • LIVE12A
  • Active loudspeaker, AB-class bi-amp, 2-way 330W+70W, 124dB SPL

    Features:
    Low frequency:12 '' woofer/3''v.c.
    High frequency:1 '' driver/1.7''v.c.
    Frequency response:50-18000 Hz (±3dB)
    Reproduction of voice and music for live and recorded performances
    Polypropylene enclosure, designed for stage-monitor application
    For indoor/outdoor sound installations where quality and sound pressure are required
    For portable PA systems, mobile DJ sets and voice/multimedia applications

    LOUDSPEAKER
    • System type:
      active 2 way
    COMPONENTS
    • Low frequency:
      12
      ''
      woofer/3''v.c.
    • High frequency:
      1
      ''
      driver/1.7''v.c.
    FEATURES
    • Built-in amp LF/HF:
      330+70
      W
      /4/8Ohm
    • SPL max:
      128
      dB
      @1m (free field)
    ACOUSTICAL SPECIFICATIONS
    • SPL cont/peak:
      122/128
      dB
      @1m (free field)
    • Frequency response:
      50-18000
      Hz
      (±3dB)
    • Coverage angle HxV:
      80x60
      °
    • Cross over frequency:
      2200
      Hz
    ELECTRONICS
    • Amplifier:
      AB class
    • Power:
      330+70
      W
      /4/8Ohm
    • Input sensitivity:
      -2 dBu (0,6Vrms) adjustable
    • Protection:
      limiter temp.
    • User controls:
      mic, line, master, eq LF-HF
    • Processor:
      analog
    • Operating voltage/frequency:
      100~120V/220~240V 60Hz/50Hz
    INPUT/OUTPUT CONNECTORS
    • Input signal:
      XLR IN/OUT, jack 6.35 mm
    • Power connection:
      VDE
    CABINET CONSTRUCTION
    • Cabinet material:
      4
      mm
      polypropilene
    • Sospension system:
      eyebolt, 35 mm pole mount
    • Angle:
      45
      °
      monitor applications
    • Handles:
      1 on side
    PHYSICAL
    • Dimensions (WxHxD):
      416x615x356
      mm
    • Weight:
      25.5
      kg
    Product Code
    Accessory Code
    Description
    LIVE12A (optional)
    LIVEPACK1500D (optional)
    LIVE15 (optional)
    LIVE15A (optional)
    LIVE10 (optional)
    LIVE10A (optional)
    MS18SW (optional)
    MS118SW (optional)
    LIVE8A (optional)
    LIVE8 (optional)
    LIVE12 (optional)
    LIVE18S (optional)
    LIVE15S (optional)
    LIVE15SA (optional)
    LIVE18SA (optional)
    LIVE12SA (optional)
    AS230AS230
    DISCONTINUED
    *Adjustable spacer Bar for subwoofers, min h. 82,5, max h. 132cm
    LIVE12A (optional)
    LIVE12 (optional)
    Fabric protection for LIVE12/LIVE12A
    LIVE12A (optional)
    LIVE8 (optional)
    EVENT10 (optional)
    EVENT8 (optional)
    EVENT10A (optional)
    IKOS10A (optional)
    IKOS10P (optional)
    IKOS15A (optional)
    IKOS12A (optional)
    IKOS12P (optional)
    IKOS15P (optional)
    IKOS8P (optional)
    IKOS8A (optional)
    LIVE12 (optional)
    LIVE10A (optional)
    LIVE10 (optional)
    LIVE15A (optional)
    LIVE15 (optional)
    FUSION12MP (optional)
    FUSION15P (optional)
    FUSION12P (optional)
    FUSION10P (optional)
    FUSION15MA (optional)
    FUSION12MA (optional)
    FUSION15A (optional)
    FUSION12A (optional)
    FUSION10A (optional)
    FUSION15MP (optional)
    Wall mount support for acoustic speakers, horiz. & vertical, max load 60 kg
    LIVE12A (optional)
    IKOS15P (optional)
    IKOS12P (optional)
    IKOS12A (optional)
    IKOS15A (optional)
    EVENT10 (optional)
    EVENT8 (optional)
    EVENT10A (optional)
    LIVE15 (optional)
    LIVE15A (optional)
    LIVE10 (optional)
    LIVE10A (optional)
    LIVE12 (optional)
    M8 eye-bolt suitable for suspension of loudspeakers
