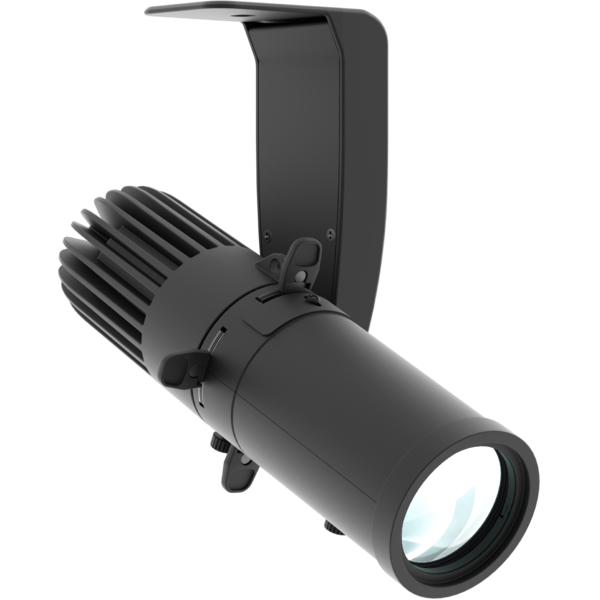

EclMiniProfile
ORDER CODE: MINIECL
Share me

Immagine Principale
  • MINIECL
  • MINIECL
  • MINIECL
  • MINIECL
  • MINIECL
  • MINIECL
  • MINIECL
  • MINIECL
  • MINIECL
  • MINIECL
  • EclMiniProfile
    Code CCT CRI Lumen Avail.
    MINIECLTU 3.000 K 92 582 lm
    MINIECLDY 5.700 K 80 743 lm

    EclMiniProfile is a new concept of mini LED ellipsoidal. Demonstrating a stylish design, ease of use, precise optics, sharp image projection and bright even projection - all in a compact housing that is just a quarter of the size of the traditional ellipsoidal fixtures. EclMiniProfile is designed for applications in commercial spaces, museums, restaurants, churches, educational theatres and any other installation where size is an important factor. Available in tungsten and daylight versions, EclMiniProfile performs even field projection with high CRI at any level of brightness and linear dimmer over the entire curve.

    Features:
    Bright and compact LED ellipsoidal with sharp optics and shutters
    Available with warm and cold white high CRI LED sources
    19° - 26° - 36° - 50° lens options

    LIGHT SOURCE
    • Source:
      28
      W
      CREE LED
    • CCT:
      (TU) 3.000 K - (DY) 5.700
      K
    • Luminous flux:
      (TU) (19°) 563 lm - (26°) 554 lm - (36°) 582 lm - (50°) 552
      lm
      @full
    • Luminous flux:
      (DY) (19°) 731 lm - (26°) 729 lm - (36°) 743 lm - (50°) 693 lm @full
    • Lux:
      (TU) (19°) 330 lx - (26°) 180 lx - (36°) 96 lx - (50°) 51
      lx
      @5 m full
    • Lux:
      (DY) (19°) 397 lx - (26°) 212 lx - (36°) 107 lx - (50°) 52
      lx
      @5 m full
    • CRI:
      (TU) >92; (DY) >80
    • TLCI:
      (TU) >90; (DY) >68
    • TM30 Rf:
      (TU) >90; (DY) >79
    • TM30 Rg:
      (TU) >97; (DY) >97
    • Source life expectancy:
      > 70.000 hrs (L70B10 @Ta 25° C / 77° F)
    OPTICS
    • Beam angle:
      optional 19° / 26° / 36° / 50
      °
    • Lens type:
      high-quality glass lens optics
    DYNAMIC EFFECTS
    • Fixed gobos:
      gobo holder Included in optics
    • Gobo size:
      E, outer: 37,3 mm - image: 24 mm - thickness: 1,1 mm
    • Manual mode:
      manual adjustment of dimmer and strobe
    BODY
    • Body:
      sturdy die-cast aluminium body
    • Body colour:
      RAL 9004
    ELECTRONICS
    • Dimmer:
      linear 0 ~ 100%, manual knob dimmer
    • Operating temperature:
      -20° C / +45° C (-4° F / +113° F)
    • LED Control:
      flicker free operation
    ELECTRICAL
    • Mains power supply:
      100-240V - 50/60Hz
    • Max power consumption:
      22
      W
    • Power factor:
      >0,47
    PHYSICAL
    • IP rating:
      20
    • Cooling:
      passive cooling and fan-free
    • Suspension and fixing:
      bracket for hanging and positioning
    • Power connection:
      moulded IP power IN connector
    • Dimensions (WxHxD):
      112x176x226
      mm
    • Weight:
      1
      kg
    BOX CONTENT
    • 1 x MINIECL
    • User Manual
