MINIECLTR
Share me

Immagine Principale
  • MINIECLTR
  • MINIECLTR
  • MINIECLTR
  • MINIECLTR
  • MINIECLTR
  • MINIECLTR
  • MINIECLTR
  • MINIECLTR
  • MINIECLTR
  • MINIECLTR
  • MINIECLTR
    Code CT CRI Lumen Avail.
    MINIECLTRTU 3.000 K 92 582 lm
    MINIECLTRDY 5.700 K 80 743 lm

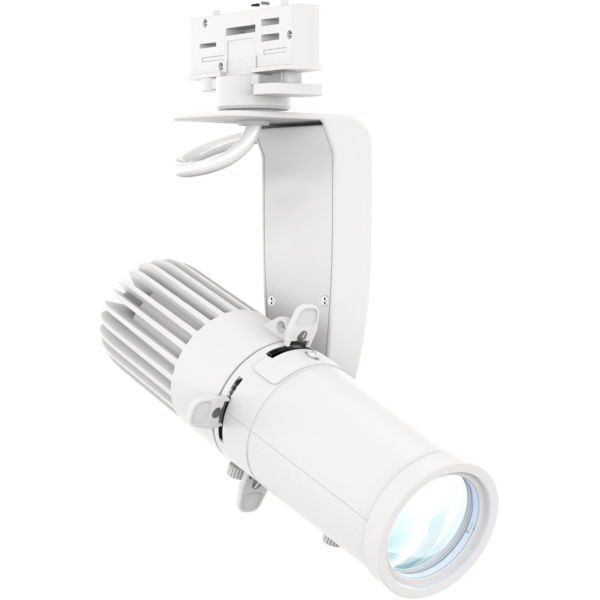

    EclMiniProfile TR is a 28W CREE LED new concept of mini LED ellipsoidal. Demonstrating a stylish design, ease of use, due to the manual knob, has precise optics, sharp image projection and bright even projection - all in a compact housing that is just a quarter of the size of the traditional ellipsoidal fixtures. EclMiniProfile is designed for applications in commercial spaces, museums, restaurants, churches, educational theatres and any other installation where size is an important factor. Available in tungsten and daylight versions, EclMiniProfile performs even field projection with high CRI at any level of brightness and linear dimmer over the entire curve.

    Features:
    28W White LED source available in Tungsten and Daylight variants
    19° / 26° / 36° / 50° optional lenses
    Local knob dimming and removable track adapters for easy implementation

    LIGHT SOURCE
    • Source:
      28
      W
      CREE LED
    • CCT:
      (TU) 3.000 K - (DY) 5.700
      K
    • Luminous flux:
      (TU) (19°) 563 lm - (26°) 554 lm - (36°) 582 lm - (50°) 552
      lm
      @full
    • Luminous flux:
      (DY) (19°) 731 lm - (26°) 729 lm - (36°) 743 lm - (50°) 693 lm @full
    • Lux:
      (TU) (19°) 330 lx - (26°) 180 lx - (36°) 96 lx - (50°) 51
      lx
      @5 m full
    • Lux:
      (DY) (19°) 397 lx - (26°) 212 lx - (36°) 107 lx - (50°) 52
      lx
      @5 m full
    • CRI:
      (TU) >92; (DY) >80
    • TLCI:
      (TU) >90; (DY) >68
    • TM30 Rf:
      (TU) >90; (DY) >79
    • TM30 Rg:
      (TU) >97; (DY) >97
    • Source life expectancy:
      70.000 hrs (L70 @25° C / 77° F)
    OPTICS
    • Beam angle:
      optional 19° / 26° / 36° / 50
      °
    • Lens type:
      high-quality glass lens optics
    DYNAMIC EFFECTS
    • Fixed gobos:
      gobo holder included in optics
    • Gobo size:
      E, outer: 37,3 mm - image: 24 mm - thickness: 1,1 mm
    • Static colour mode:
    BODY
    • Body:
      sturdy aluminum profile
    • Body colour:
      RAL 9003
    ELECTRONICS
    • Dimmer:
      linear 0 ~ 100%, manual knob dimmer
    • Operating temperature:
      -20° C / +45° C (-4° F / +113° F)
    • LED Control:
      flicker free operation
    ELECTRICAL
    • Mains power supply:
      100-240 V – 50/60 Hz
    • Max power consumption:
      22
      W
    • Power factor:
      >0,40
    PHYSICAL
    • Cooling:
      passive cooling and fan-free
    • Power connection:
      moulded IP power IN connector
    • IP rating:
      20
    • Dimensions (WxHxD):
      112x210x226
      mm
    • Weight:
      1,2
      kg
    CODICE PRODOTTO
    Accessory Code
    Description
    MINIECLTR (include)
    MINIECLTRWD (include)
    GALLERYECL (optional)
    GALLERYECLFC (optional)
    MINIECL (optional)
    MINIECLWD (optional)
    Track adaptor
    MINIECLTR (optional)
    MINIECLTRWD (optional)
    Optics for MINIECLTR profiler, gobo holder included, 19° beam
    MINIECLTR (optional)
    MINIECLTRWD (optional)
    Optics for MINIECLTR profiler, gobo holder included, 26° beam
    MINIECLTR (optional)
    MINIECLTRWD (optional)
    Optics for MINIECLTR profiler, gobo holder included, 36° beam
    MINIECLTR (optional)
    MINIECLTRWD (optional)
    Optics for MINIECLTR profiler, gobo holder included, 50° beam

    Firmware

    Accomplish more with our product updates
    Make sure you always get your product updated to the most recent software/hardware versions to obtain the best result out of your fixture and your show.
    Collecting feedbacks from users, we constantly add new capabilities, and improve customer experience and  technical endurance.
    Get in touch with our team for any questions or assistance.

    Drawings

    Miniecltrtu_3D.skpDownload
    Miniecltrdy_3D.skpDownload
    Miniecltrtu_CAD_3D.dwgDownload
    Miniecltrtu_CAD_2D.dwgDownload
    Miniecltrtu_TECHNICAL_DRAWING.pdfDownload

    Fixture Libraries / DMX Charts

    Photometrics

    Software Upgrades

    Tech Docs


    Italian/English manual
    Download
    Miniecltrtu_A4_DATASHEET.pdfDownload
