  • EclMiniProfile TRWD
    Code CT CRI Lumen Avail.
    MINIECLTRWDTU 3.000 K 92 582 lm
    MINIECLTRWDDY 5.700 K 80 743 lm

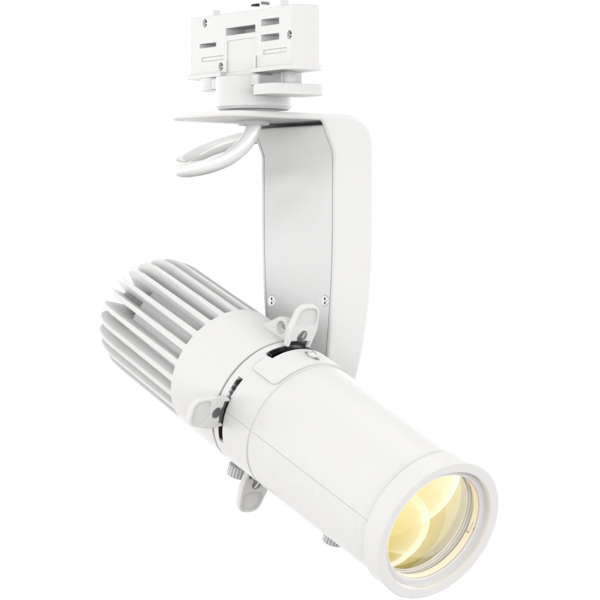

    EclMiniProfile TRWD is a new concept of mini LED ellipsoidal based on a 28 W CREE LED. Performing a stylish design, ease of use, precise optics, sharp image projection and bright even projection all in a compact housing that is just a quarter of the size of traditional ellipsoidals. EclMiniProfile TRWD comes with a built-in Wireless DMX (W-DMX) module for cable-free operation, extending the possible applications of this light. Designed for applications in commercial installations, museums, restaurant, churches, educational theatres, and any other installation where size is an important factor. Available in Tungsten and Daylight versions, EclMiniProfile TRWD performs even field projection, high CRI at any level of brightness and linear dimmer over the entire ramp.

    Features:
    28W White LED source available in Tungsten and Daylight variants
    19° / 26°/ 36°/ 50° optional lenses
    Wireless DMX control and removable track adapters for easy implementation

    LIGHT SOURCE
    • Source:
      28
      W
      CREE LED
    • CCT:
      (TU) 3.000 K - (DY) 5.700
    • Luminous flux:
      (TU) (19°) 563 lm - (26°) 554 lm - (36°) 582 lm - (50°) 552
      lm
      @full
    • Luminous flux:
      (DY) (19°) 731 lm - (26°) 729 lm - (36°) 743 lm - (50°) 693 lm @full
    • Lux:
      (TU) (19°) 330 lx - (26°) 180 lx - (36°) 96 lx - (50°) 51
      lx
      @5 m full
    • Lux:
      (DY) (19°) 397 lx - (26°) 212 lx - (36°) 107 lx - (50°) 52
      lx
      @5 m full
    • CRI:
      (TU) >92; (DY) >80
    • TLCI:
      (TU) >90; (DY) >68
    • TM30 Rf:
      (TU) >90; (DY) >79
    • TM30 Rg:
      (TU) >97; (DY) >97
    • Source life expectancy:
      > 70.000 hrs (L70B10 @Ta 25° C / 77° F)
    OPTICS
    • Beam angle:
      optional profile lens 19° / 26° / 36° / 50° (gobo holder included) - wash zoom lens 15°-30°/ 25°-50
      °
    • Lens type:
      high-quality glass lens optics
    DYNAMIC EFFECTS
    • Fixed gobos:
      gobo holder included in optics
    • Gobo size:
      E, outer: 37,3 mm - image: 24 mm - thickness: 1,1 mm
    • Manual mode:
      manual adjustment of dimmer and strobe
    BODY
    • Body:
      sturdy die-cast aluminium body
    • Body colour:
      RAL 9003
    CONTROL
    • Protocols:
      W-DMX
    • DMX channels:
      1 / 2 / 5
      channel
    • Wireless Control:
      included, wireless solution receiver
    • Display:
      LCD display
    • Firmware upgrade:
      yes, via USB - DMX interface (UPBOX1) not included
    ELECTRONICS
    • Dimmer:
      linear 0 ~ 100% electronic dimmer
    • Dimmer curves:
      4
      selectable dimming modes available
    • Strobe / shutter:
      1 - 25
      Hz, electronic
    • Operating temperature:
      -20° C / +45° C (-4° F / +113° F)
    • LED Control:
      flicker free operation
    • Selectable PWM:
      600 ~ 25.000 Hz
    ELECTRICAL
    • Mains power supply:
      100-240V - 50/60Hz
    • Max power consumption:
      22
      W
    • Power factor:
      >0,40
    PHYSICAL
    • IP rating:
      20
    • Cooling:
      passive cooling and fan-free
    • Suspension and fixing:
      track-adapter included for suspension and fixing
    • Power connection:
      track adaptor (EUTRAC, STAFF, GLOBAL, IVELA, Eurostandard Plus compatible)
    • Dimensions (WxHxD):
      112x229x226
      mm
    • Weight:
      1
      kg
    CERTIFICATIONS / APPROVALS
    • Certifications / Approvals:
      CE, UKCA, RCM
    BOX CONTENT
    • 1 x MINIECLTRWD
    • User Manual
    ITEMS REF.
    Accessory Code
    Description
    MINIECLTRWD (optional)
    {ProdottiDaAccessorio}
    BlackBox F-1 G6 transrec, 512ch, 2.45GHz, DMX&RDM,Bluetooth,G3,G4,G4S, G5, CRMX
    MINIECLTRWD (optional)
    {ProdottiDaAccessorio}
    BlackBox R-512 G6 receiver 512Ch, 2.45GHz,DMX&RDM,Bluetooth,G3,G4,G4S,G5,CRMX
    MINIECLTRWD (optional)
    {ProdottiDaAccessorio}
    BlackBox R-512 G5 receiver 512Ch, 2.45GHz & 5.8GHz, DMX/RDM optional
    MINIECLTRWD (include)
    {ProdottiDaAccessorio}
    Track adaptor, max load 10Kg
    MINIECLTRWD (optional)
    {ProdottiDaAccessorio}
    BlackBox F-1 G5 transmitter, 2,45GHz & 5.2/5,8 GHz, DMX/RDM, 512Ch
    MINIECLTRWD (optional)
    {ProdottiDaAccessorio}
    Slim aluminium clamp, 200 kg loading, 48-51 mm tubes, M10 bolt
    MINIECLTRWD (optional)
    {ProdottiDaAccessorio}
    Steel security cable for hanging bodies, inox steel shackle
    MINIECLTRWD (optional)
    {ProdottiDaAccessorio}
    Optics for MINIECLTR profiler, gobo holder included,
    MINIECLTRWD (optional)
    {ProdottiDaAccessorio}
    Optics for MINIECLTR profiler, gobo holder included,
    MINIECLTRWD (optional)
    {ProdottiDaAccessorio}
    Optics for MINIECLTR profiler, gobo holder included,
    MINIECLTRWD (optional)
    {ProdottiDaAccessorio}
    Optics for MINIECLTR profiler, gobo holder included,
    MINIECLTRWD (optional)
    {ProdottiDaAccessorio}
    Zoomable Wash Lens 15-30° for EclMini
    MINIECLTRWD (optional)
    {ProdottiDaAccessorio}
    Zoomable Wash Lens 25-50° for EclMini
    MINIECLTRWD (optional)
    {ProdottiDaAccessorio}
    Half Snoot for EclMini
    MINIECLTRWD (optional)
    {ProdottiDaAccessorio}
    Full Snoot for EclMini
    MINIECLTRWD (optional)
    {ProdottiDaAccessorio}
    Anti-glare louvre for EclMini
    MINIECLTRWD (optional)
    {ProdottiDaAccessorio}
    Barndoor and filter frame (compatible with Wash Lenses) for EclMini
    MINIECLTRWD (optional)
    {ProdottiDaAccessorio}
    WDMX battery transmitter, mini 5p DMX and WIFI IN, 2.4 GHz, 0.4 kg
