    Code CT CRI Lumen Avail.
    MINIECLTRWDTU 3.000 K 92 582 lm
    MINIECLTRWDDY 5.700 K 80 743 lm

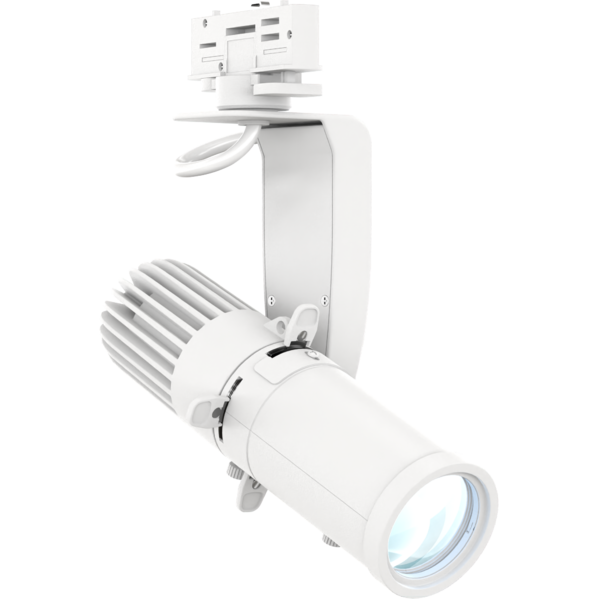

    EclMiniProfile TRWD is a new concept of mini LED ellipsoidal based on a 28 W CREE LED. Performing a stylish design, ease of use, precise optics, sharp image projection and bright even projection all in a compact housing that is just a quarter of the size of traditional ellipsoidals. EclMiniProfile TRWD comes with a built-in Wireless DMX (W-DMX) module for cable-free operation, extending the possible applications of this light. Designed for applications in commercial installations, museums, restaurant, churches, educational theatres, and any other installation where size is an important factor. Available in Tungsten and Daylight versions, EclMiniProfile TRWD performs even field projection, high CRI at any level of brightness and linear dimmer over the entire ramp.

    Features:
    28W White LED source available in Tungsten and Daylight variants
    19° / 26°/ 36°/ 50° optional lenses
    Wireless DMX control and removable track adapters for easy implementation

    LIGHT SOURCE
    • Source:
      28
      W
      CREE LED
    • CCT:
      (TU) 3.000 K - (DY) 5.700
      K
    • Luminous flux:
      (TU) (19°) 563 lm - (26°) 554 lm - (36°) 582 lm - (50°) 552
      lm
      @full
    • Luminous flux:
      (DY) (19°) 731 lm - (26°) 729 lm - (36°) 743 lm - (50°) 693 lm @full
    • Lux:
      (TU) (19°) 330 lx - (26°) 180 lx - (36°) 96 lx - (50°) 51
      lx
      @5 m full
    • Lux:
      (DY) (19°) 397 lx - (26°) 212 lx - (36°) 107 lx - (50°) 52
      lx
      @5 m full
    • CRI:
      (TU) >92; (DY) >80
    • TLCI:
      (TU) >90; (DY) >68
    • TM30 Rf:
      (TU) >90; (DY) >79
    • TM30 Rg:
      (TU) >97; (DY) >97
    • Source life expectancy:
      70.000 hrs (L70 @25° C / 77° F)
    OPTICS
    • Beam angle:
      optional 19° / 26° / 36° / 50
      °
    • Lens type:
      high-quality glass lens optics
    DYNAMIC EFFECTS
    • Fixed gobos:
      gobo holder included in optics
    • Gobo size:
      E, outer: 37,3 mm - image: 24 mm - thickness: 1,1 mm
    • Static colour mode:
    • Manual colour mode:
      manual adjustment of dimmer and strobe
    • Auto mode:
    BODY
    • Body:
      sturdy die-cast aluminium body
    • Body colour:
      RAL 9003
    CONTROL
    • Protocols:
      W-DMX
    • DMX channels:
      1 / 2 / 5
      channel
    • W-DMX:
      included, wireless solution receiver
    • Display:
      LCD display
    • Firmware upgrade:
      yes, via USB - DMX interface (UPBOX1) not included
    ELECTRONICS
    • Dimmer:
      linear 0 ~ 100% electronic dimmer
    • Dimmer curves:
      4
      Selectable dimming modes available
    • Strobe / shutter:
      1 - 25
      Hz, electronic
    • Operating temperature:
      -20° C / +45° C (-4° F / +113° F)
    • LED Control:
      flicker free operation
    • Selectable PWM:
      600 ~ 25.000 Hz
    ELECTRICAL
    • Mains power supply:
      100-240 V – 50/60 Hz
    • Max power consumption:
      22
      W
    • Power factor:
      >0,40
    PHYSICAL
    • Cooling:
      passive cooling and fan-free
    • Sospension and fixing:
      track-adapter included for suspension and fixing
    • Power connection:
      moulded IP power IN connector
    • IP rating:
      20
    • Dimensions (WxHxD):
      112x229x226
      mm
    • Weight:
      1,7
      kg
    CODICE PRODOTTO
    Accessory Code
    Description
    MINIECLTRWD (include)
    MINIECLTR (include)
    GALLERYECL (optional)
    GALLERYECLFC (optional)
    MINIECL (optional)
    MINIECLWD (optional)
    Track adaptor
    MINIECLTRWD (optional)
    MINIECLTR (optional)
    Optics for MINIECLTR profiler, gobo holder included, 19° beam
    MINIECLTRWD (optional)
    MINIECLTR (optional)
    Optics for MINIECLTR profiler, gobo holder included, 26° beam
    MINIECLTRWD (optional)
    MINIECLTR (optional)
    Optics for MINIECLTR profiler, gobo holder included, 36° beam
    MINIECLTRWD (optional)
    MINIECLTR (optional)
    Optics for MINIECLTR profiler, gobo holder included, 50° beam
    MINIECLTRWD (optional)
    AIR5FAN (optional)
    RUBYFCX (optional)
    SMARTOWER (optional)
    SMARTOWERPACK (optional)
    RA3000PROFILE (optional)
    PANORAMAIPSPOT (optional)
    PANORAMAIPWBX (optional)
    DISPLAYCOBTRWDFC (optional)
    BlackBox F-1 G5 transmitter, 2,45GHz & 5.2/5,8 GHz, DMX/RDM, 512Ch
    MINIECLTRWD (optional)
    SMARTOWER (optional)
    SMARTOWERPACK (optional)
    AIR5FAN (optional)
    PANORAMAIPWBX (optional)
    RA3000PROFILE (optional)
    PANORAMAIPSPOT (optional)
    RUBYFCX (optional)
    Micro F-1 G5 transmitter, int. omni antenna 2dBi, 2,45GHz. 512Ch, 12VDC, Batt.
