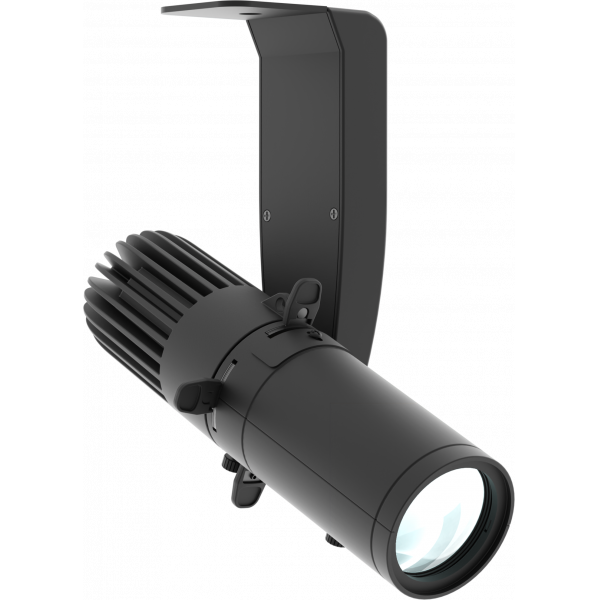

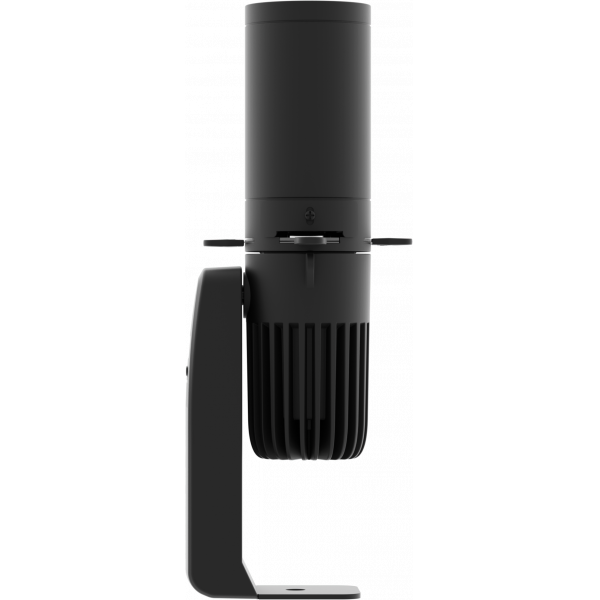

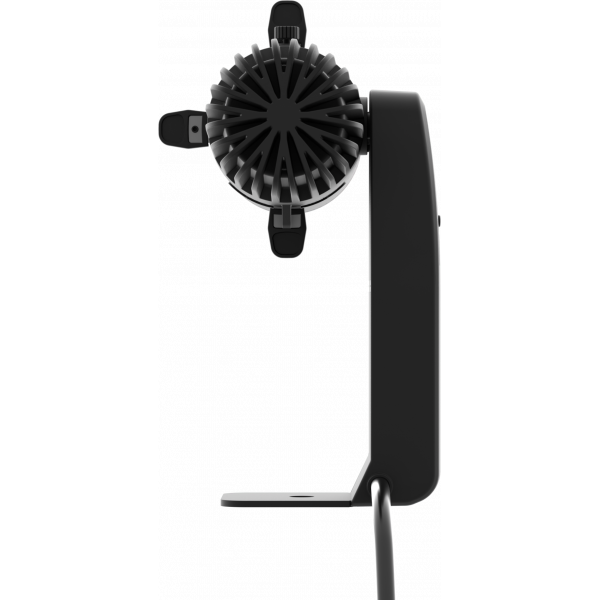

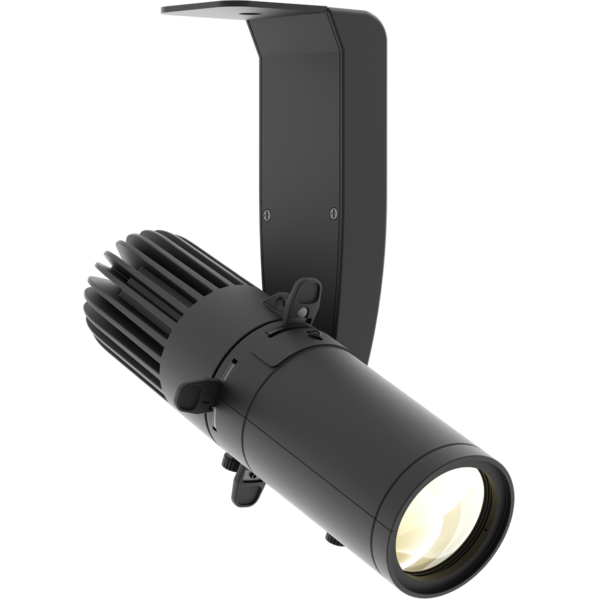

    • EclMiniProfile WDMX
    Code CT CRI Lumen Avail.
    MINIECLWDTU 3.000 K 92 582 lm
    MINIECLWDDY 5.700 K 80 743 lm

    EclMiniProfile WDMX is a new concept of mini LED ellipsoidal. Showcasing a stylish design, ease of use, precise optics, sharp image projection and bright even projection all in a compact housing that is just a quarter of the size of traditional ellipsoidals. EclMiniProfile WDMX comes with a built-in Wireless DMX (WDMX) module for cable-free operation, extending the possible applications of this light. Designed for applications in commercial installtions, museums, restaurant, churches, educational theatres, and any other installation where size is an important factor. Available in Tungsten and Daylight versions, EclMiniProfile WDMX performs even field projection, high CRI at any level of brightness and linear dimmer over the entire ramp.

    Features:
    Bright, compact LED ellipsoidal with sharp optics and wireless DMX control.
    Available with Warm and Cold White High CRI LED sources.
    19° - 26° - 36° - 50° lens options

    LIGHT SOURCE
    • Source:
      28
      W
      CREE LED
    • CCT:
      (TU) 3.000 K - (DY) 5.700
    • Luminous flux:
      (TU) (19°) 563 lm - (26°) 554 lm - (36°) 582 lm - (50°) 552
      lm
      @full
    • Luminous flux:
      (DY) (19°) 731 lm - (26°) 729 lm - (36°) 743 lm - (50°) 693 lm @full
    • Lux:
      (TU) (19°) 330 lx - (26°) 180 lx - (36°) 96 lx - (50°) 51
      lx
      @5 m full
    • Lux:
      (DY) (19°) 397 lx - (26°) 212 lx - (36°) 107 lx - (50°) 52
      lx
      @5 m full
    • CRI:
      (TU) >92; (DY) >80
    • TLCI:
      (TU) >90; (DY) >68
    • TM30 Rf:
      (TU) >90; (DY) >79
    • TM30 Rg:
      (TU) >97; (DY) >97
    • Source life expectancy:
      > 70.000 hrs (L70B10 @Ta 25° C / 77° F)
    OPTICS
    • Beam angle:
      optional profile lens 19° / 26° / 36° / 50° (gobo holder included) - wash zoom lens 15°-30°/ 25°-50
      °
    • Lens type:
      high-quality glass lens optics
    DYNAMIC EFFECTS
    • Fixed gobos:
      gobo holder Included in optics
    • Gobo size:
      E, outer: 37,3 mm - image: 24 mm - thickness: 1,1 mm
    • Static mode:
      selection of static colour
    • Manual mode:
      manual adjustment of dimmer and strobe
    • Auto mode:
      built-in programs with execution speed adjustment
    BODY
    • Body:
      sturdy die-cast aluminium body
    • Body colour:
      RAL 9004
    CONTROL
    • Protocols:
      W-DMX
    • DMX channels:
      1 / 2 / 5
      channel
    • Wireless Control:
      included, wireless solution receiver

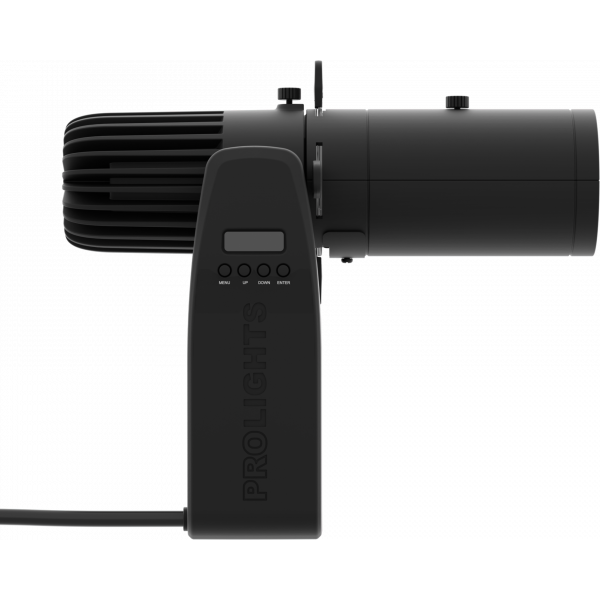

    • Display:
      LCD display
    • Firmware upgrade:
    ELECTRONICS
    • Dimmer:
      linear 0 ~ 100% electronic dimmer
    • Dimmer curves:
      4
      selectable dimming modes available
    • Strobe / shutter:
      1 - 25
      Hz, electronic
    • Operating temperature:
      -20° C / +45° C (-4° F / +113° F)
    • LED Control:
      flicker free operation
    • Selectable PWM:
      600 ~ 25.000 Hz
    ELECTRICAL
    • Mains power supply:
      100-240V - 50/60Hz
    • Max power consumption:
      22
      W
    • Power factor:
      >0,40
    PHYSICAL
    • IP rating:
      20
    • Cooling:
      passive cooling and fan-free
    • Power connection:
      moulded IP power IN connector
    • Dimensions (WxHxD):
      112x202x226
      mm
    • Weight:
      1
      kg
    CERTIFICATIONS / APPROVALS
    • Certifications / Approvals:
      CE, UKCA, RCM
    BOX CONTENT
    • 1 x MINIECLWD
    • User Manual
    ITEMS REF.
    Accessory Code
    Description
    MINIECLWD (optional)
    {ProdottiDaAccessorio}
    WSBBF1G6WSBBF1G6
    BlackBox F-1 G6 transrec, 512ch, 2.45GHz, DMX&RDM,Bluetooth,G3,G4,G4S, G5, CRMX
    MINIECLWD (optional)
    {ProdottiDaAccessorio}
    WSBBR512G6WSBBR512G6
    BlackBox R-512 G6 receiver 512Ch, 2.45GHz,DMX&RDM,Bluetooth,G3,G4,G4S,G5,CRMX
    MINIECLWD (optional)
    {ProdottiDaAccessorio}
    WSBBR512G5WSBBR512G5
    BlackBox R-512 G5 receiver 512Ch, 2.45GHz & 5.8GHz, DMX/RDM optional
    MINIECLWD (optional)
    {ProdottiDaAccessorio}
    WSBBF1G5WSBBF1G5
    BlackBox F-1 G5 transmitter, 2,45GHz & 5.2/5,8 GHz, DMX/RDM, 512Ch
    MINIECLWD (optional)
    {ProdottiDaAccessorio}
    RSR0630BRSR0630B
    Steel security cable for hanging bodies, inox steel shackle, L=60 cm, black
    MINIECLWD (optional)
    {ProdottiDaAccessorio}
    C6002BC6002B
    Slim aluminum clamp, 200kg loading, 48-51mm tubes, M10 bolt, Black
    MINIECLWD (optional)
    {ProdottiDaAccessorio}
    MINIECLL19MINIECLL19
    Optics for MINIECL profiler, gobo holder included, 19° beam
    MINIECLWD (optional)
    {ProdottiDaAccessorio}
    MINIECLL26MINIECLL26
    Optics for MINIECL profiler, gobo holder included, 26° beam
    MINIECLWD (optional)
    {ProdottiDaAccessorio}
    MINIECLL36MINIECLL36
    Optics for MINIECL profiler, gobo holder included, 36° beam
    MINIECLWD (optional)
    {ProdottiDaAccessorio}
    MINIECLL50MINIECLL50
    Optics for MINIECL profiler, gobo holder included, 50° beam
    MINIECLWD (optional)
    {ProdottiDaAccessorio}
    ECLMINIWASHL1530BECLMINIWASHL1530B
    Zoomable Wash Lens 15-30° for EclMini, black
    MINIECLWD (optional)
    {ProdottiDaAccessorio}
    ECLMINIWASHL2550BECLMINIWASHL2550B
    Zoomable Wash Lens 25-50° for EclMini, black
    MINIECLWD (optional)
    {ProdottiDaAccessorio}
    ECLMINIHSNOOTWECLMINIHSNOOTW
    Half Snoot for EclMinix, white
    MINIECLWD (optional)
    {ProdottiDaAccessorio}
    ECLMINIFSNOOTWECLMINIFSNOOTW
    Full Snoot for EclMini, white
    MINIECLWD (optional)
    {ProdottiDaAccessorio}
    ECLMINILOUVREBECLMINILOUVREB
    Anti-glare louvre for EclMini, black
    MINIECLWD (optional)
    {ProdottiDaAccessorio}
    ECLMINIBDNFFBECLMINIBDNFFB
    Barndoor and filter frame (compatible with Wash Lenses) for EclMini, black
    MINIECLWD (optional)
    {ProdottiDaAccessorio}
    TRACKADATRACKADA
    Track adaptor, max load 10Kg
    MINIECLWD (optional)
    {ProdottiDaAccessorio}

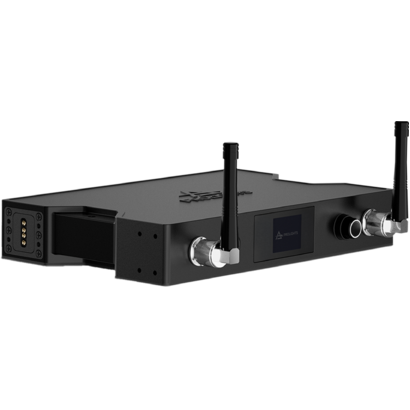

    WDBBOXWDBBOX
    WDMX battery transmitter, mini 5p DMX and WIFI IN, 2.4 GHz, 0.4 kg

    Data sheet & specs

    File name File size Download
    Minieclwd_A4_DATASHEET_(EN).pdf 339KB
    Minieclwd_A4_DATASHEET_(IT).pdf 327KB

    User manual

    File name File size Download
    Minieclwd_USER_MANUAL_EN.pdf 3MB

    DMX chart & personalities

    File name File size Download
    Minieclwd_DMX_CHARTS.pdf 76KB
    PROLIGHTS_VECTORWORKS_v23_LIBRARY.vwx 304MB
    PROLIGHTS_VECTORWORKS_v23_LIBRARY.vwx 304MB
    VECTORWORKS_SYMBOLS.vwx 438KB
    VECTORWORKS_SYMBOLS.vwx 413KB
    PROLIGHTS_VECTORWORKS_v18_LIBRARY.vwx 443MB
    PROLIGHTS_VECTORWORKS_v18_LIBRARY.vwx 443MB
    MINIECLWD Firmware rev. 1.1
    manufacturer fixture library (Link) Link
    prolights_minieclipsewddy.d4Download
    prolights_minieclipsewdtu.d4Download
    manufacturer fixture library (Link) Link
    prolights_minieclipsewd_1ch.hedDownload
    prolights_minieclipsewd_2ch.hedDownload
    prolights_minieclipsewd_5ch.hedDownload
    minieclipse_tr dy_1ch.fdfDownload
    minieclipse_tr tu_1ch.fdfDownload
