NANOLASERFXRB
ORDER CODE: NANOLASERFXRB
Share me

Immagine Principale
  • NANOLASERFXRB
  • NANOLASERFXRB
  • NANOLASERFXRB
  • NANOLASERFXRB
  • NANOLASERFXRB
  • NANOLASERFXRB
  • NANOLASERFXRB
  • NANOLASERFXRB

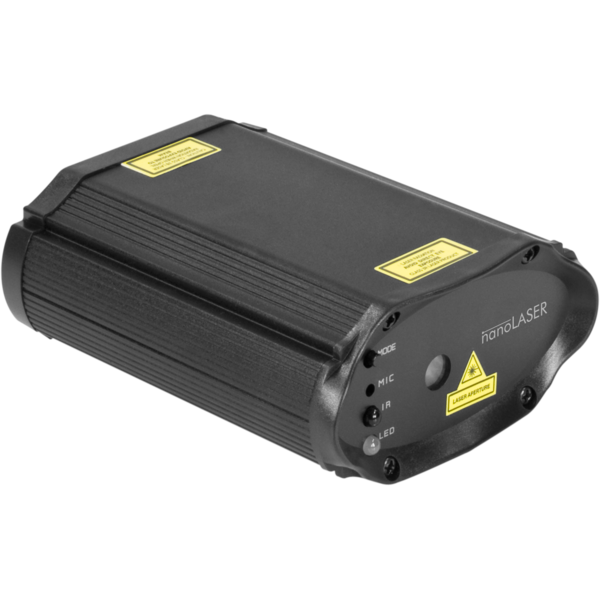

  • NANOLASERFXRB produces animation, figures and razor-sharp red and blue beams with several operating modes as auto-show, sound-active, manual control. The bundle contains an adaptor for truss and wall mounting, a tripod desk stand and the remote IR controller for immediate access to all functions.

    Features:
    Light source: 100 mW 650 nm red diode + 80 mW 450 nm blue
    Infrared controller for remote control of auto-shows, sound-active, effect library with speed adjustment
    Wall/truss adapter and tripod desk support included
    Safety: compliant with EN60825 - 1:2007 standards

    LIGHT SOURCE
    • Light source:
      laser diode 100 mW 650 nm red - 80 mW 450 nm blue
    • Laser radiation class:
      3R
    OPTICS
    • Beam angle:
      100
      °
    COLOUR SYSTEM
    • Colour mixing:
      2 colours (red, blue)
    DYNAMIC EFFECTS
    • Auto mode:
      built-in programs with execution speed adjustment
    • Sound mode:
      music activation through internal microphone and sensitivity control
    BODY
    • Body colour:
      black
    CONTROL
    • Control units:
      IR controller for remote control
    ELECTRICAL
    • Mains power supply:
      DC 12 V 600 mA
    • Max power consumption (at 120V):
      6
      W
    PHYSICAL
    • Suspension and fixing:
      bracket for hanging and positioning
    • Dimensions (WxHxD):
      111x85x45
      mm
    • Weight:
      0,3
      kg
    CERTIFICATIONS / APPROVALS
    • Certifications / Approvals:
      CE
    BOX CONTENT
    • 1 x NANOLASERFXRB
    • 1 x external power supply
    • 1 x ir controller
    • 1 x wall mount adapter
    • 1 x tripod
    • 1 x key for switch on/off
    • User Manual
    ITEMS REF.
    Accessory Code
    Description
    NANOLASERFXRB (optional)
    {ProdottiDaAccessorio}
    Slim aluminium clamp, 200 kg loading, 48-51 mm tubes, M10 bolt
    NANOLASERFXRB (optional)
    {ProdottiDaAccessorio}
    Steel security cable for hanging bodies, inox steel shackle

    Data sheet & specs

    File name File size Download

    User manual

    File name File size Download
    Nanolaserfxrb_USER_MANUAL_ITEN.pdf 2MB
