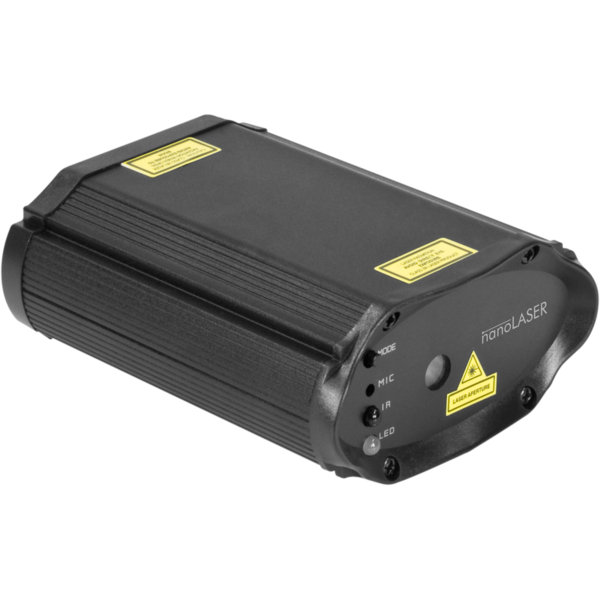

NANOLASERRG
ORDER CODE: NANOLASERRG

Share me

NANOLASERRG is a simple plug & play compact multi-beam laser effect. NANOLASERRG produces hundreds of green and red points, with several operating modes such as auto-show, sound-active, manual control. The bundle contains an adaptor for truss and wall mounting, a tripod desk stand and the remote IR controller for immediate access to all functions.

Features:
Light source: laser diode 100mW 650nm red+50mW 532nm green
Control mode: IR controller for remote control of auto-shows, sound-active, effect library with speed adjustment
Wall/truss adapter and tripod desk support included
Safety: compliant with EN60825 - 1:2007 standards

LIGHT SOURCE

Light source:

laser diode 100 mW 650 nm red + 50 mW 532 nm green
Laser radiation class:

3R

OPTICS

Beam angle:

100
°

COLOUR SYSTEM

Colour mixing:

2 colours (red, green)

DYNAMIC EFFECTS

Auto mode:

built-in programs with execution speed adjustment
Sound mode:

music activation through internal microphone and sensitivity control

BODY

Body colour:

black

CONTROL

Control units:

IR controller for remote control

ELECTRICAL

Mains power supply:

DC 12 V 600 mA
Max power consumption (at 120V):

6
W

PHYSICAL

Suspension and fixing:

bracket for hanging and positioning
Dimensions (WxHxD):

111x85x45
mm
Weight:

0,3
kg

BOX CONTENT

1 x NANOLASERRG
1 x external power supply
1 x ir controller
1 x wall mount adapter
1 x tripod
1 x key for switch on/off
User Manual

ITEMS REF.

Accessory Code

Description

NANOLASERRG (optional)

C6002B

Slim aluminum clamp, 200kg loading, 48-51mm tubes, M10 bolt, Black

NANOLASERRG (optional)

RSR0630B

NEW

Steel security cable for hanging bodies, inox steel shackle, L=60 cm, black
