NOVAHIC1
ORDER CODE: NOVAHIC1
Condividimi

Immagine Principale
  • NOVAHIC1

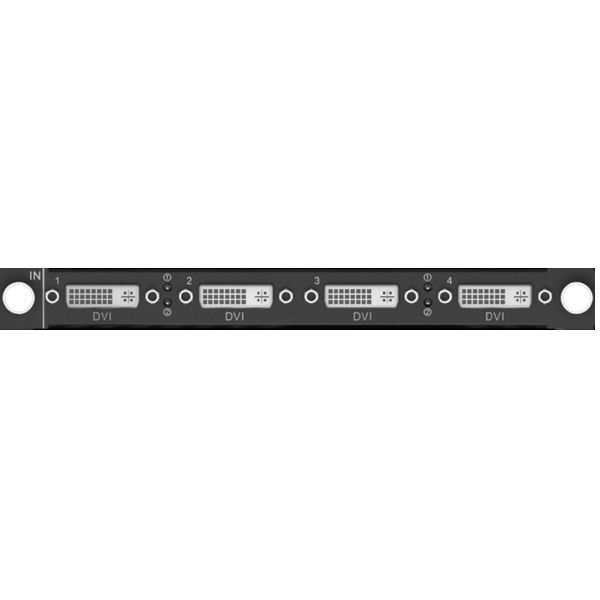

  • Novastar input card for NOVAH, 4xDVI.



    • Support for single link and dual link input modes, and 10-bit input source.
    • HDCP 1.4 compliant.
    • Does not support interlaced signal input.
    • Single link mode:
      − Four DVI connectors are all used for input.
      − Each connector supports the maximum resolution of 2048 ×1152 @60Hz and the minimum resolution of 800×600@60Hz.
      − Custom resolutions: max. width: 2560 pixels (2560×972@60Hz), max. height: 2560 pixels (884×2560@60Hz).
    • Dual link mode:
      − Connectors 2 and 4 are used for input, and connectors 1 and 3 are unavailable.
      − Each connector supports the maximum resolution of 3840×1080@60Hz and the minimum resolution of 800×600@60Hz.

            − Custom resolutions: max. width: 4096 pixels ( 4096 ×1124@60Hz), max. height: 4095 pixels ( 10141014×4095@60Hz).

    • Status LEDs:
      − On: The input source is accessed normally.
      − Off: No input source is accessed or the input source is abnormal.
    Al prodotto non sono correlati accessori, per ulteriori informazioni si consiglia di consultare il catalogo e il manuale di istruzioni del prodotto.
