  • Code SO CPU DDR4 (GB) SSD (GB) Avail.
    NOVAMBOX600-2 LINUX Celeron NV-3855U 4 128
    NOVAMBOX600-4 LINUX I5-7200U 4 128
    NOVAMBOX600-6 WIN10 IOT Enterprise Celeron NV-3855U 4 128

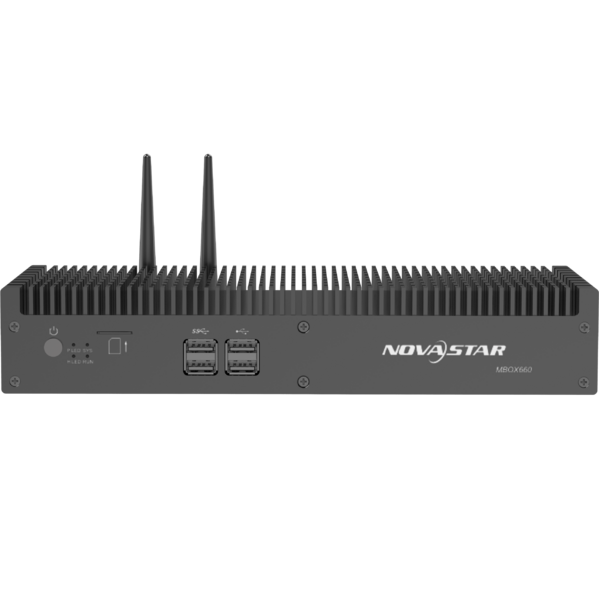

    Launched by NovaStar, the MBOX600 is an independent sending device featuring large loading capacity and can be applied to the scenarios where no PC is used to control the LED display.



    • Loading capacity up to 2,300,000 pixels with a maximum width of 3840 pixels and maximum height of 3840 pixels
    • Supported common resolutions: 1440×900, 1920×1080, 1920×1200, 2048×1152, and 2560×960
    • Uses Intel processor: Celeron 3855U: dual-core, 1.6 GHz, TDP 15 W, support for EIST power-saving technology or i5-7200U: dual-core, 2.5 GHz, TDP 15 W, support for Turbo and EIST power-saving technologies
    • OS: Linux (english edition) or Windows 10 IOT Enterprise (english edition)
    • 4 GB DDR4 memory
    • GPU: Celeron 3855U: HD510 or i5-7200U: HD620
    • 64 GB or 128 GB HDD
    • Automatic power-on
    • 4 x USB 2.0 ports on front and 2 × USB 3.0 ports on back
    • 4 x Ethernet output
    • 1 x Light sensor connector
    • 1 x Temperature sensor connector
    • 1 x Audio output connector
    • 1 x HDMI output
    • 1 x Audio output
    • 1 x Wi-Fi antenna connector
    • 1 x Gigabit Ethernet port
    • 1 x Reserved port
    • 1 x Power input connector (12 V DC)
    • Capacity 2.3 million pixels
    • Max power consumption 43 W
    • Temperature: -20°C–60°C
    • Humidity: 0% RH–80% RH, non-condensing
    • Storage environment -40°C - +80°C
    • Dimensions (LxWxH): 285.0 mm x 135.2 mm x 46.5 mm
    • Weight: 1.5 kg
