NOVAMFN
ORDER CODE: NOVAMFN
Share me

Immagine Principale
  • NOVAMFN
  • NOVAMFN
  • NOVAMFN
  • NOVAMFN
  • Code Avail.
    NOVAMFN300
    NOVAMFN300B

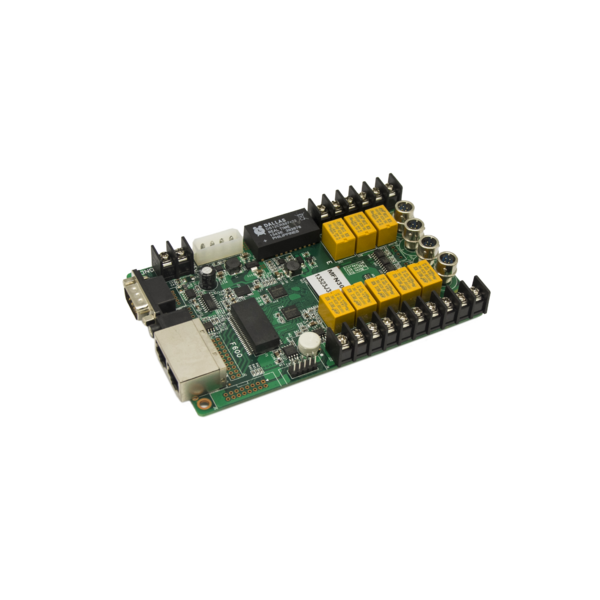

    Nova M3 MFN300 is a multifunction card with a variety of auxiliary functions. It has the following features:

    • RS232 serial or Gigabit Ethernet port communication;
    • Ethernet port connection between two receiving cards or at the end;
    • Timer function which is able to replace timer and delayer;
    • Temperature detection of power distribution box;
    • Humidity detection of power distribution box;
    • Audio output;
    • 4-way light sensor connection to achieve automatic brightness adjustment;
    • Temperature and humidity module connection;
    • 8-way power switch control.



    Thickness of the board is about 1.6mm. The overall thickness (board thickness+thickness of the components on front and back side) is about 20mm.

    Features:
    8 power switch management
    4 light sensor / ambient temperature sensor interface
    Auto power control of fan / air condition / LED display based temperature
    Audio output integrated
    Certification: CE, RoHS

    ELECTRICAL
    • Power Supply:
      5.0V - 0,38A
    ELECTRICAL
    • Working temperature:
      -20° ~ +75°
      °C
    • Working humidity:
      0 - 99
      %
    PHYSICAL
    • Weight:
      0,165
      kg
    For the product no accessories are related, for more information please consult the catalogue or the relevant user manual
