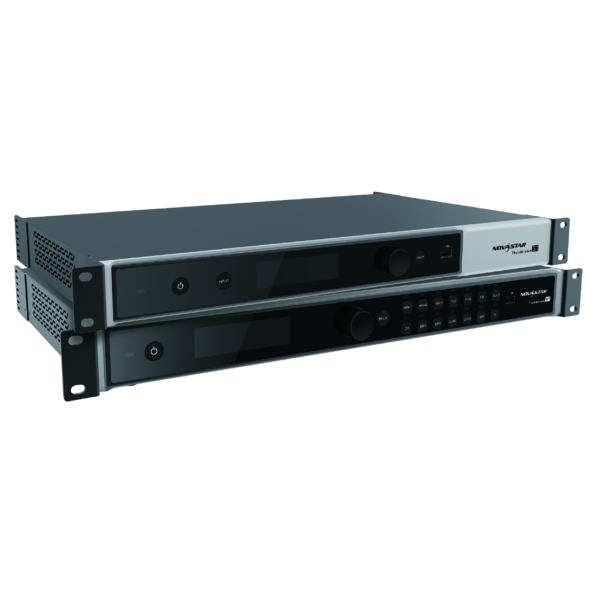

With multiple I/O and control interfaces, controller S1 is ideal for different applications. It has higher data transmission bandwidth. One coaxial cable can support1920×1080 @60Hz making the LED display connection simpler. Benefiting from the SerDes technology, controller S1 has lower frame latency and is specially designed for high-end LED display applications.



Features:
The inputs of the S1 include 3G-SDI×1, HDMI×1, DVI×1 and support input resolutions up to 1920×1080@60Hz
The outputs of the S1 include BNC×2 pairs
Low latency feature, the whole system including S1 and TR100 only 1 frame
The loading capacity: 2.3 million pixels
Capable of cascading multiple controllers to load a large screen
Support pixel-level calibration technology
The system can be configured with a knob and a button on the front panel. Computer software for system configuration is not necessary
The OLED display makes operations much easier
Support the hardware backup solution.
