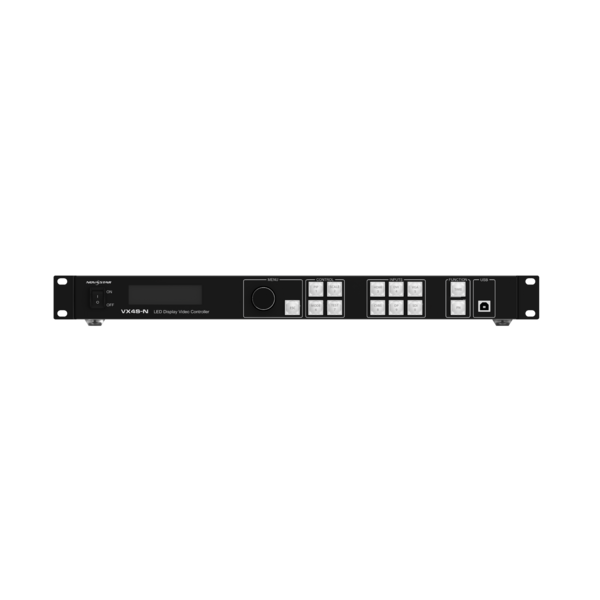

The VX4S-N is a professional LED display controller developed by NovaStar. Besides the function of display control, it also features powerful image processing capabilities. With excellent image quality and flexible image control, the VX4S-N greatly meets the needs of the media industry.

FEATURES

• Industry-standard input connectors
  − 1x CVBS
  − 1x VGA
  − 1x DVI (IN+LOOP)
  − 1x HDMI 1.3
  − 1x DP
  − 1x 3G-SDI (IN+LOOP)
• 4x Gigabit Ethernet outputs, capable of loading up to 2,300,000 pixels
• Quick screen configuration supported. Computer software for system configuration is not necessary.
• Seamless high-speed switching and fade effect supported, to present professional-quality images
• Adjustable PIP position and size, free control at will
• Nova G4 engine adopted, enabling exquisite image display with a good sense of depth, without flickering and scanning lines
• White balance calibration and color gamut mapping based on different features of LEDs used by screens, to ensure the reproduction of true colors
• Independent external audio output supported
• High bit-depth video input: 10-bit and 8-bit
• Multiple device units connected for image mosaic
• NovaStar's new-generation pixel level calibration technology adopted, ensuring a fast and efficient calibration process
• An innovative architecture adopted, allowing for smart screen configuration. The screen debugging can be completed within several minutes, which greatly shortens the preparation time on the stage.

INPUT

3G-SDI

• Up to 1920×1080@60Hz input resolution
• Support for progressive and interlaced signal inputs
• Support for deinterlacing processing
• Support for loop through

AUDIO: A connector for connecting the external audio

VGA: VESA standard, up to 1920×1200@60Hz input resolution

CVBS: A connector for accepting PAL/NTSC standard video inputs

DVI

• VESA standard, up to 1920×1200@60Hz input resolution
• Support for custom resolutions
  − Max. width: 3840 pixels (3840×652@60Hz)
  − Max. height: 1920 pixels (1246×1920@60Hz)
• HDCP 1.4 compliant
• Support for interlaced signal inputs
• Support for loop through

HDMI1.3

• Up to 1920×1200@60Hz input resolution
• Support for custom resolutions
  − Max. width: 3840 pixels (3840×652@60Hz)
  − Max. height: 1920 pixels (1246×1920@60Hz)
• HDCP 1.4 compliant
• Support for interlaced signal inputs

DP

• Up to 1920×1200@60Hz input resolution
• Support for custom resolutions

OUTPUT

Ethernet port

• 4 ports load up to 2,300,000 pixels.
• Max. width: 3840 pixels
• Max. height: 1920 pixels
• Only Ethernet port 1 can be used for audio output. When the multifunction card is used for audio decoding, the card must be connected to the Ethernet port 1.

DVI OUT: A connector for monitoring the output images

CONTROL

ETHERNET

• Connect to the control PC for communication.
• Connect to the network.

USB (Type-B)

• Connect to the control PC for device control.
• Input connector to link another device

USB (Type-A): Output connector to link another device

SPECIFICATIONS

Electrical Specifications

• Power connector: 100-240V~, 50/60Hz. 1.5A
• Power consumption: 25 W

Operating Environment

• Temperature: -20°C ~ +60°C
• Humidity: 20% RH to 90% RH, non-condensing
• Storage Humidity: 10% RH to 95% RH, non-condensing

Physical Specifications

• Dimensions: 482.6 mm ×250.0 mm ×50.0 mm
• Net weight: 2.55 kg
• Gross weight: 5.6 kg

Packing Information

• Carrying case 540 mm × 140 mm × 370 mm
• Accessories 1x Power cord
• 1x USB cable
• 1x DVI cable
• 1x HDMI cable
• 1x User Manual
• Packing box 555 mm × 405 mm × 180 mm

Certifications: CE, RoHS, FCC, UL, CMIM

Noise Level (typical at 25°C/77°F): 38 dB (A
