  • PBC63123
  • PBC63123

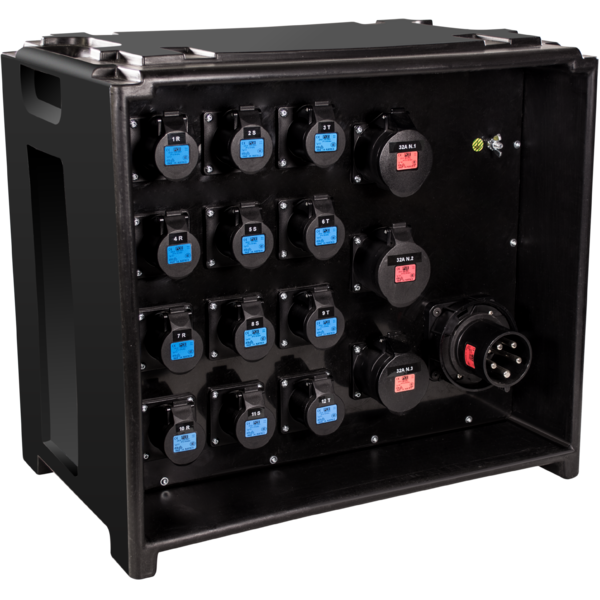

  • Power distribution box, 63A 5p input plug

    Features:
    Structure:
    IP 54 shock resistant, robust and mobile insulated thermoplastic box with stackable shape
    IP 55 hinged windows to protect switches and instruments
    Box dimensions (WxHxD): 60x40x54 cm
    Input:
    63A-5p (3P+N+E) panel mount CEE plug, 400V 50/60Hz IP67, 1pc (code 913315)
    Output:
    32A-5p (3P+N+E) panel mount CEE socket with slim flange, 400V 50/60Hz IP44, 3pcs (code 912425)
    16A-3p (1P+N+E) panel mount CEE socket, 230V 50/60Hz IP44, 12pcs (code 911413)
    Protection:
    4P magneto-thermic switch, 4 modules, 63A curve C 6kA, 1pc (code 923121)
    Residual current circuit breaker overcurrent protection, 4P, 4 mod, 40A tipe A, 30mA, 2pcs(923322)
    Residual current circuit breaker w  overcurrent protection, 4P, 4 mod,32A, curve C 6kA tipe A,30mA, 3pcs
    Magneto-thermic switch 1P+N, 1 module, 16A curve C 6kA, 12pcs (code 921111)
    Tools:
    4P fuser block, 4 modules, 1pc (code 927114)
    Digital multimeter, 3 voltmeters (35-480), 3 ammeters (5-8000A), timer, 4 modules, 1pc (code 927531)

    For the product no accessories are related, for more information please consult the catalogue or the relevant user manual
