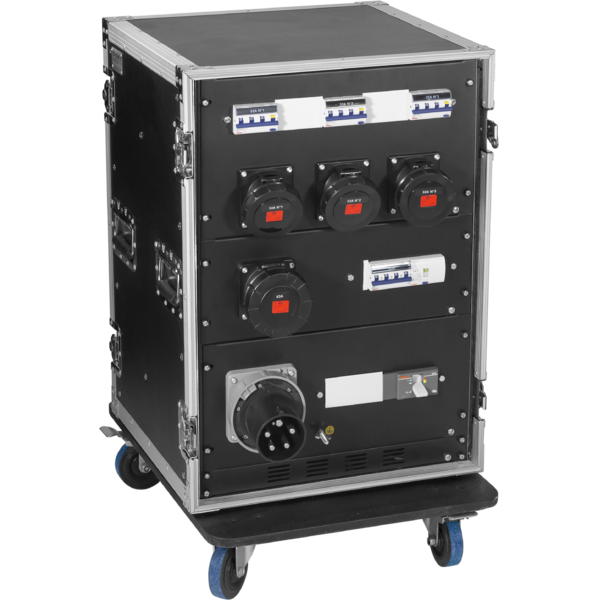

  • Power distribution box, 125A 5p input plug

    Features:
    Structure:
    16U 19'' rack, 9mm plywood, 2 openings, skate with wheels
    Inner metal foil protective covering
    Dimensions (WxHxD): 56x91x72 cm
    Input:
    125A-5p (3P+N+E) panel mount CEE plug, 400V 50/60Hz IP67, 1pc (code 914315)
    Output:
    63A-5p (3P+N+E) panel mount CEE socket, 400V 50/60Hz IP67, 1pc (code 913415)
    32A-5p (3P+N+E) panel mount CEE socket, 400V 50/60Hz IP67, 2pcs (code 912415)
    32A-3p (1P+N+E) panel mount CEE socket with slim flange, 230V 50/60Hz IP44, 3pcs (code 912423)
    16A-3p (1P+N+E) panel mount CEE socket, 230V 50/60Hz IP44, 12pcs (code 911413)
    16A-3p (1P+N+E) panel mount Italian/German socket, 230V 50/60Hz with DIN support, 1pc (code 911463)
    Protection:
    4P magneto-thermic switch , 400-415V, 125A curve C 18kA, 1pc
    Residual current circuit breaker w overcurrent protection, 4P, 7 mod, 63A, curve C 6kA tipe A, 30mA, 1pc
    Residual current circuit breaker w overcurrent protection, 4P, 7 modules,32A, curve C 6kA tipe A, 30mA, 3pcs
    Residual current circuit breaker, 1P+N, 2 modules, 32A, curve C 6kA tipe A, 30mA, 3pcs
    Magneto-thermic switch 1P+N, 2 modules, 16A curve C 6kA, 12pcs
    Residual current circuit breaker, 1P+N, 2 modules, 16A, curve C 6kA tipe A, 30mA, 1pc
    Residual current circuit breaker w/o overcurrent protection, 4P, 4 mod, 63A tipe A, 30mA, 2pcs
    Tools:
    4P fuser block, 4 modules, 1pc
    Triple LED indicator, 1pc
    Digital multimeter, 1pc

    For the product no accessories are related, for more information please consult the catalogue or the relevant user manual
