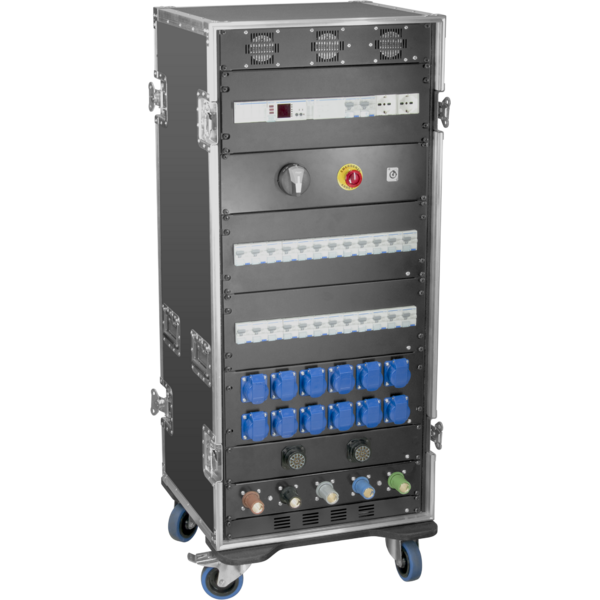

  • Power distribution box, 250/400A power lock single-pole sockets

    Features:
    Structure:
    26U 19'' Rack, 11mm plywood, 2 openings, skate with wheels
    Inner metal foil protective covering
    Module for forced ventilation, with 3 fans (80 mm, 220V)
    Dimensions (WxHxD): 56x135x72 cm
    Input:
    400A panel-mount power lock socket, drain IN (L1, L2, L3, N, E), 5pcs
    Output:
    63A-5p (3P+N+E) panel mount CEE socket, 400V 50/60Hz IP67, 3pcs (code 913415)
    32A-5p (3P+N+E) panel mount CEE socket, 400V 50/60Hz IP67, 6pcs (code 912415)
    32A-3p (1P+N+E) panel mount CEE socket with slim flange, 230V 50/60Hz IP44, 6pcs (code 912423)
    16A-3p (1P+N+E) panel mount CEE socket, 230V 50/60Hz IP44, 12pcs (code 911413)
    Panel mount multi-pin sockets 19P IP67 Socapex compatible, 2pcs (code 9262191FP)
    10/16A socket 2P+G 230V, 2pcs (code 911463)
    Protection:
    4P Magneto-thermic Switch , 400-415V, 250A curve C 40kA, 1pc (code 925261)
    Residual circuit breaker over-current protection, 4P, 7 modules, 63A, curve C 6kA tipe A, 30mA, 3pcs
    Residual circuit breaker over-current protection, 4P, 7 modules, 32A, curve C 6kA tipe A, 30mA, 6pcs
    Residual circuit breaker over-current protection, 1P+N, 2 modules, 32A, curve C 6kA tipe A, 30mA, 6pcs
    Residual circuit breaker over-current protection, 1P+N, 2 modules, 16A, curve C 6kA tipe A, 30mA, 26pcs
    Tools:
    Safety device with luminous emergency push button and low-tension powerCON input for emergency remote control
    4P Fuser block, 4 modules, 1pc
    Triple LED indicator, 1pc
    Digital multimeter, 1pc
