PHYRO1500UFC
ORDER CODE: PHYRO1500UFC
Share me

Immagine Principale
  • PHYRO1500UFC
  • PHYRO1500UFC
  • PHYRO1500UFC

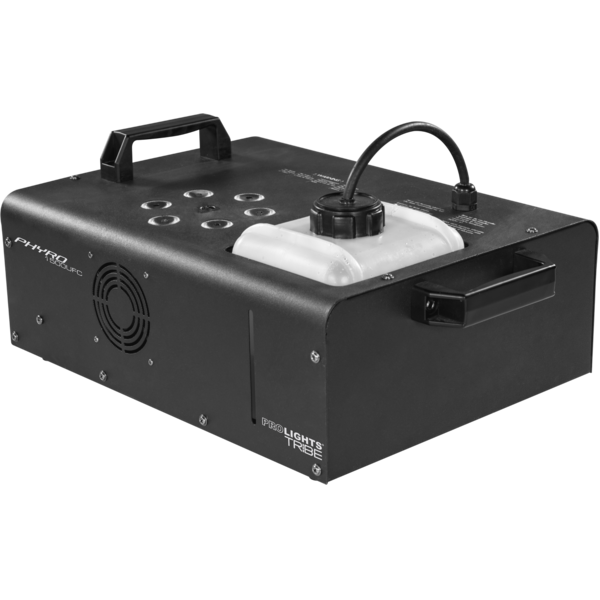

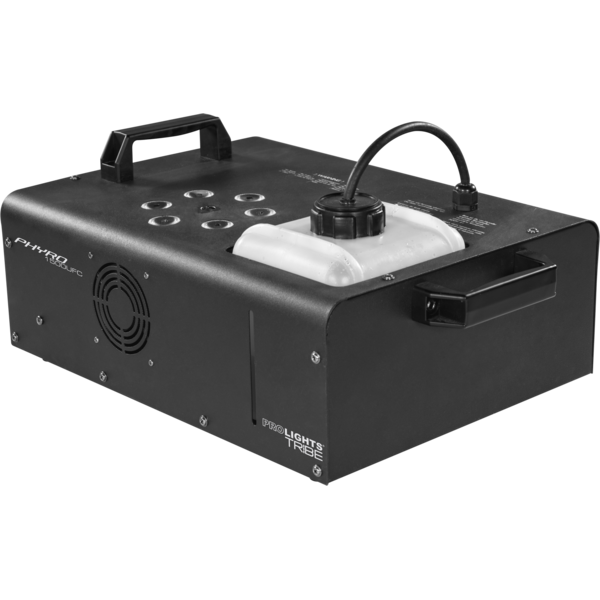

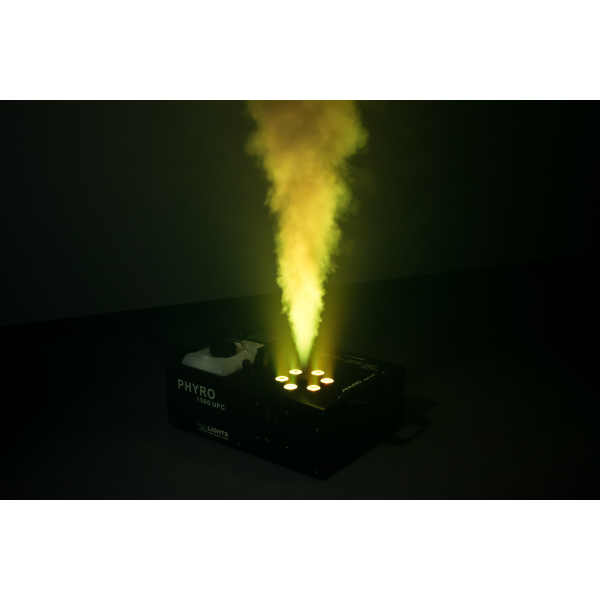

    • PHYRO1500UFC is the latest fog machine by TRIBE able to emit a high-pressure vertical jet, simulating the special effect that until today has only been achievable with a CO2 based machine. The special design of the pump and heater allows for an instant emission of start and stop with a jet which reaches a considerable height and through the use of specific liquids the fading is almost immediate in the environment.

    Features:
    LED source: 6x3 W RGB / FC
    Plug & play technology: PHYRO1500UFC is ready to work when connected with no need of additional settings or connection
    Wireless controller included
    Electronic thermal sensor against over-heating failures
    Security system against clogging or pump failures
    Functioning based on an internal heater for high pressure and voluminous fog emission

    ELECTRICAL
    • Power Supply:
      AC 100 - 240 V 50 / 60 Hz
    • Power Consumption (at 120V):
      1.550
      W
    • LED Source:
      6x3 W RGB / FC
    • Heather:
      1.500 W
    FLUID
    • Operating Time:
      18 sec
    • First Heat-up Time:
      5 min
    • Output:
      5 m height - 1 m width
    • Tank Capacity:
      2,5
      L
    • Fluid Consumption Rate:
      200
      ml/min
    • Liquid Used:
      liquido per fumo a base d'acqua
    CONTROL
    • Protocols:
      DMX512
    • Display:
      4 digit display
    • Remotes:
      DIN 5p remote controller - remote timer
    PHYSICAL

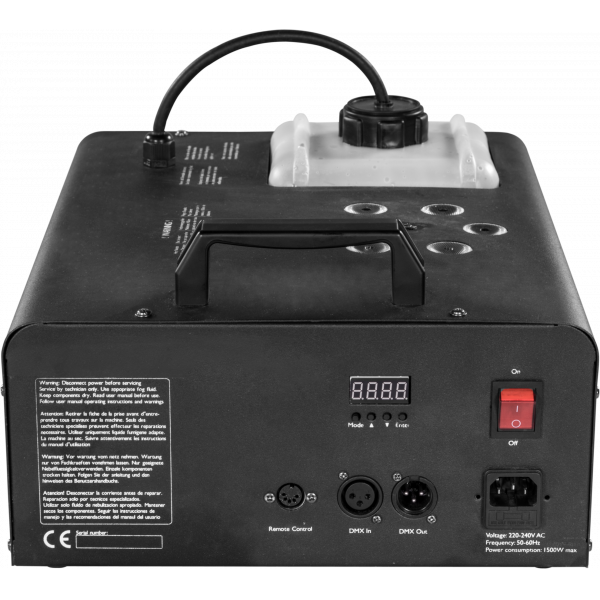

    • Signal connection:
      XLR - 3p IN/OUT
    • Power connection:
      IEC 10 A IN
    • Dimensions (WxHxD):
      500x370x245
      mm
    • Weight:
      8,32
      kg
    CERTIFICATIONS / APPROVALS
    • Certifications / Approvals:
      CE, UKCA
    BOX CONTENT
    • 1 x PHYRO1500UFC
    • 1 x 1,5 meters BARE END - IEC power cable
    • 1 x remote control
    • User Manual
    ITEMS REF.
    Accessory Code
    Description
    PHYRO1500UFC (optional)
    {ProdottiDaAccessorio}
    TOUR53413L03TOUR53413L03
    Dmx cable HC5340. CANC3MXX XLR 3p->CANC3FXX XLR (f) 3p, L.3m
    PHYRO1500UFC (optional)
    {ProdottiDaAccessorio}
    VDE15SEUVDE15SEU
    Power cable VDE socket, Shuko plug
    PHYRO1500UFC (optional)
    {ProdottiDaAccessorio}
    RSR0630BRSR0630B
    Steel security cable for hanging bodies, inox steel shackle, L=60 cm, black
    PHYRO1500UFC (optional)
    {ProdottiDaAccessorio}
    C6002BC6002B
    Slim aluminum clamp, 200kg loading, 48-51mm tubes, M10 bolt, Black
    PHYRO1500UFC (optional)
    {ProdottiDaAccessorio}
    FLCLFLCL
    Cleaner fluid for fog machines
    PHYRO1500UFC (optional)
    {ProdottiDaAccessorio}
    FLHZFLHZ
    Low-density haze machine fluid, water-based
    PHYRO1500UFC (optional)
    {ProdottiDaAccessorio}
    FLMDFLMD
    Medium/standard density fluid for fog machines, pink fluid
    PHYRO1500UFC (optional)
    {ProdottiDaAccessorio}
    FLHDFLHD
    High-density fluid for fog machines, orange fluid
    PHYRO1500UFC (optional)
    {ProdottiDaAccessorio}
    FLSDFLSD
    Super-density fluid for fog machines, green fluid
    PHYRO1500UFC (include)
    {ProdottiDaAccessorio}
    PHYROWRCPHYROWRC
    Wireless remote controller for PHYRO series athmosperic machines
    PHYRO1500UFC (include)
    {ProdottiDaAccessorio}
    PHYRORC1PHYRORC1
    Wired remote controller for PHYRO fogger machines

    Data sheet & specs

    File name File size Download

    User manual

    File name File size Download
    Phyro1500ufc_USER_MANUAL_ITEN.pdf 2MB
    Phyro1500ufc_USER_MANUAL_ITEN.pdf 2MB

    DMX chart & personalities

    File name File size Download

    manufacturer fixture library (Link) Link
    prolights_phyro1500ufc.d4Download
    manufacturer fixture library (Link) Link
    prolight_phyro1500ufc_7ch.hed Download

    Photometrics

    File name File size Download

    CAD symbols & drawings

    File name File size Download

    Tech docs

    File name File size Download

    Software

    File name File size Download

    Firmware

    Only the latest firmware versions for each hardware revision are available for download.
    To download previous firmware versions, log in to the customer care section.
    Update Tool:
    Check hardware changelog before downloading firmware
    Revision Release date Firmware changelog HW Compatibility
    0.1 STABLE 04/07/2018
