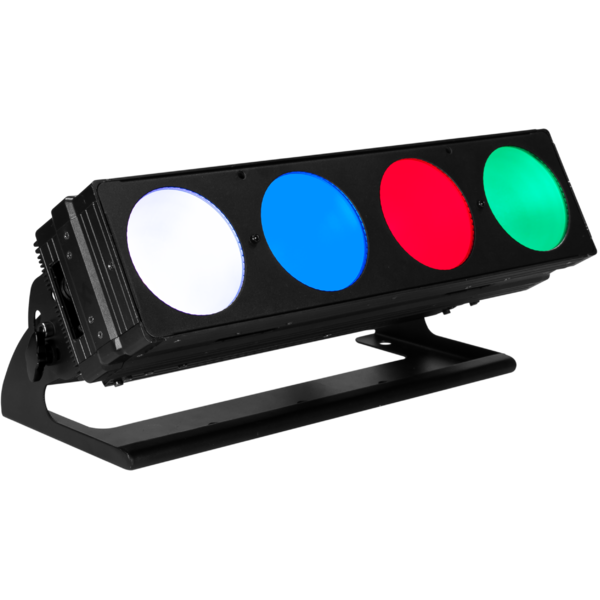

PIXBAR4
ORDER CODE: PIXBAR4
Share me

Immagine Principale
  • PIXBAR4
  • PIXBAR4
  • PIXBAR4
  • PIXBAR4
  • PIXBAR4
  • PIXBAR4
  • PIXBAR4
  • PIXBAR4
  • PIXBAR4
  • PIXBAR4 is a linear bar equipped with pixel-control to provide an enhanced generation of effects, overcoming the concept of a simple illuminator. PIXBAR4 is a projector with an extremely flexible and versatile design, ideal for clubs, tours, broadcasts and sceneries.

    Features:
    4x30 W COB RGB / FC LED
    LED + parabolic reflector featuring wide beam coverage like classic DWE lamps
    Pixel control: individual control of each single LED
    Advanced FX generator with dynamic pixel macros, static patterns, adjustable foreground and background colours, dimmer fade, speed and rotation

    LIGHT SOURCE
    • Source:
      4x30
      W
      COB RGB / FC LEDs
    • Luminous flux:
      1'389
      lm
    • Lux:
      256
      lx
      @3 m full
    • Source life expectancy:
      > 30.000 h
    OPTICS
    • Beam angle:
      47
      °
    • Field angle:
      79
      °
    • Pixel pitch:
      115
      mm
    • Lens type:
      parabolic reflector in combination with HD fresnel lens
    COLOUR SYSTEM
    • Colour mixing:
      RGB / FC
    • White presets:
      2.800 K - 10.000
      K
    • Colour wheel:
      virtual colour wheel with macros
    DYNAMIC EFFECTS
    • Pixel patterns:
      pre-programmed dynamic and static patterns
    • FX generator:
      adjustable foreground/background colour, index, speed, direction
    • Static mode:
      selection of static colour
    • Manual mode:
      manual adjustment of colour
    • Auto mode:
      built-in programs with execution speed adjustment
    • Sound mode:
      music activation through internal microphone and sensitivity control
    BODY
    • Hardware on-board:
      on board mechanics for modular assembly of multiple fixtures
    • Body:
      sturdy die-cast aluminium body
    • Body colour:
      black
    CONTROL
    • Protocols:
      DMX512
    • DMX channels:
      3 / 5 / 7 / 12
      channel
    • Pixel control:
      pixel2pixel control
    • Display:
      LCD display
    • Master/Slave:
      for synchronised operation of more units linked in a chain
    ELECTRONICS
    • Dimmer:
      linear 0 ~ 100% electronic dimmer
    • Dimmer curves:
      4
      selectable dimming modes available
    • Strobe / shutter:
      1 - 25
      Hz, electronic
    • Operating temperature:
      -10° ~ +45°
    • LED Control:
      flicker free operation
    ELECTRICAL
    • Mains power supply:
      100-240V - 50/60Hz
    • Max power consumption:
      105
      W
    • Output (at 230V):
      12
      units on a single power line
    PHYSICAL
    • IP rating:
      33
    • Cooling:
      active, silent operation
    • Suspension and fixing:
      bracket for truss rigging and hardware for connection of more units
    • Signal connection:
      XLR 3p + 5p IN/OUT connectors
    • Power connection:
      Neutrik powerCON IN/OUT connectors
    • Dimensions (WxHxD):
      462x147x218
      mm
    • Weight:
      5,6
      kg
    CERTIFICATIONS / APPROVALS
    • Certifications / Approvals:
      CE, UKCA
    BOX CONTENT
    • 1 x PIXBAR4
    • 1 x 1,5 meters power cable (SCHUKO plug - NEUTRIK POWERCON)
    • User Manual
