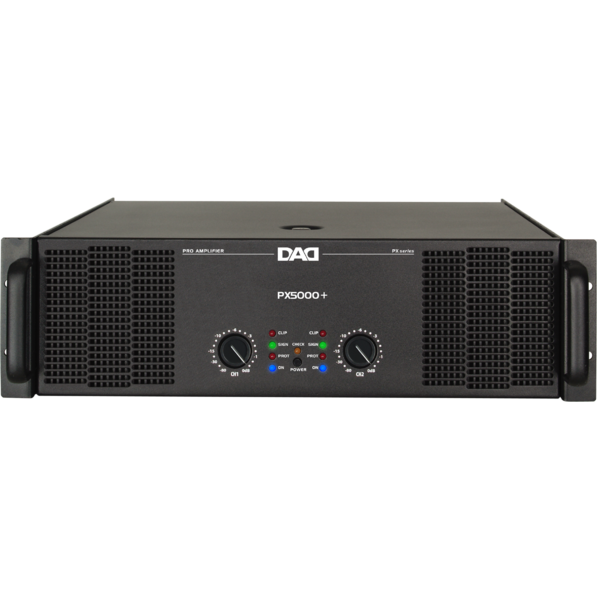

PX5000PLUS
ORDER CODE: PX5000PLUS
Condividimi

Immagine Principale
  • PX5000PLUS
  • PX5000PLUS
  • Il modello più potente della serie PX, sviluppato con Classe H a 3 step per gli stadi di uscita, è in grado di fornire 2x2700W @2Ohm e 2x2025W @4Ohm.
    Queste caratteristiche lo rendono ideale per diffusori professionali full-range, sezioni Sub/MF/HF in sistemi multi-amplificati caratterizzati da ampia dinamica ed elevate prestazioni.
    DATI TECNICI PX5000PLUS
    8 Ohm stereo power (EIA/THD1%) 1300Wx2
    4 Ohm stereo power (EIA/THD1%) 2025Wx2
    2 Ohm stereo power (Pulse/THD1%) 2700Wx2
    4 Ohm bridge power (Pulse/THD1%) 5400W
    Frequency response 20Hz-20Khz@ 8 Ohm -0.5 dB
    THD N <0.03%
    Slew rate >20V/us
    Damping factor >300
    Subsonic filter 30Hz
    Subwoofer crossover 150Hz
    S/N rate >95dB
    Input sensitivity 0.775/1/1.4V
    Voltage gain/8 Ohm 42,5dB
    Input impedance (balance/unbalance) Balance 20K / Unbalance 10K
    Output circuit class 3 Steps class H
    Protection Clip/limiter, Over-heat, VHF, VLF Short-circuit, DC, Automatic fade in, progressive volume
    Cooling air-flow Airflow from rear panel to front panel.
    Power voltage / frequency ~220V 10%/50Hz
    Dimensions (WxHxD) 483x152x500 mm
    Rack Units 3
    Weight 32,9 Kg
    Al prodotto non sono correlati accessori, per ulteriori informazioni si consiglia di consultare il catalogo e il manuale di istruzioni del prodotto.

    Data sheet & specs

    File name File size Download

    User manual

    File name File size Download
    User manual Px5000plus_USER_MANUAL_EN.pdf 1MB
    User manual Px5000plus_USER_MANUAL_EN.pdf 4MB
