    Code Tube (mm) Diagonal (mm) W (cm) H (cm) D (cm) Weight (kg) Volume (mc) Avail.
    SF22050 35x1,5 8 50 3,5 22 0,6 0,004
    SF22100 35x1,5 8 100 3,5 22 1,2 0,008
    SF22150 35x1,5 8 150 3,5 22 1,8 0,012
    SF22200 35x1,5 8 200 3,5 22 2,3 0,015
    SF22250 35x1,5 8 250 3,5 22 2,7 0,019
    SF22300 35x1,5 8 300 3,5 22 3,3 0,023
    SF22350 35x1,5 8 350 3,5 22 3,9 0,027
    SF22400 35x1,5 8 400 3,5 22 4,5 0,031

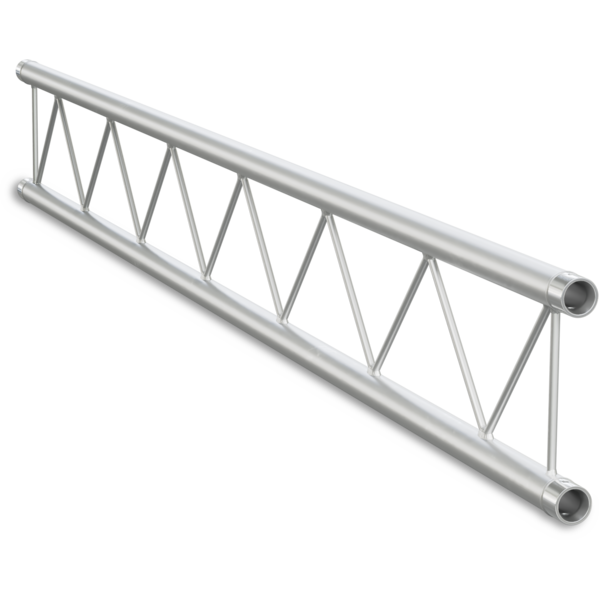

    Flat section aluminium truss with 22cm long sides

    Features:
    Lengthwise: extruded tubes, Ø 35x1,5 mm 6082 T6
    Diagonal: extruded tubes, Ø 8mm 6082 T6
    Plate: conical quick-lock connectors
    Fast connection kit FCF3 included

    Product Code
    Accessory Code
    Description
    SF22 (include)
    SF22C (include)
    SF22L2 (include)
    SF22L3 (include)
    SF22T3 (include)
    SF22X4 (include)
    SF22T4 (include)
    SF22LX4 (include)
    Quick connection, 2 spigots, 4 pins, 4 safety spring, SF22
    SF22 (optional)
    2-way L corner for SF22 Series, extrude tube 35x2mm, FCF3 included, 45°, Vert.
    SF22 (optional)
    2-way L corner for SF22 Series, extrude tube 35x2mm, FCF3 included, 45°, Horiz.
    SF22 (optional)
    2-way L corner for SF22 Series, extrude tube 35x2mm, FCF3 included, 60°, Vert.
    SF22 (optional)
    2-way L corner for SF22 Series, extrude tube 35x2mm, FCF3 included, 60°, Horiz.
    SF22 (optional)
    2-way L corner for SF22 Series, extrude tube 35x2mm, FCF3 included, 90°, Vert.
    SF22 (optional)
    2-way L corner for SF22 Series, extrude tube 35x2mm, FCF3 included, 90°, Horiz.
    SF22 (optional)
    2-way L corner for SF22 Series, extrude tube 35x2mm, FCF3 included, 120°, Vert.
    SF22 (optional)
    2-way L corner for SF22 Series, extrude tube 35x2mm, FCF3 included, 120°, Horiz.
    SF22 (optional)
    2-way L corner for SF22 Series, extrude tube 35x2mm, FCF3 included, 135°, Vert.
    SF22 (optional)
    2-way L corner for SF22 Series, extrude tube 35x2mm, FCF3 included, 135°, Horiz.
    SF22 (optional)
    3-way L corner for SF22 Series, extrude tube 35x2mm, 2x FCF3 included, Vert.
    SF22 (optional)
    3-way L corner for SF22 Series, extrude tube 35x2mm, 2x FCF3 included, Horiz.
    SF22 (optional)
    3-way T joint for SF22 Series, extrude tube 35x2mm, 2x FCF3 included, Vert.
    SF22 (optional)
    3-way T joint for SF22 Series, extrude tube 35x2mm, 2x FCF3 included, Horiz.
    SF22 (optional)
    4-way X joint for SF22 Series, extrude tube 35x2mm, 2x FCF3 included, Vert.
    SF22 (optional)
    4-way X joint for SF22 Series, extrude tube 35x2mm, 2x FCF3 included, Horiz.
    SF22 (optional)
    4-way T joint for SF22 Series, extrude tube 35x2mm, 2x FCF3 included, Vert.
    SF22 (optional)
    4-way T joint for SF22 Series, extrude tube 35x2mm, 2x FCF3 included, Horiz.
    SF22 (optional)
    Aluminium ground base for flat section trusses, SF22
    SF22 (optional)
    SQ30 (optional)
    SQ40 (optional)
    Safety spring for Powertruss series Fast Connection kit SQ-T-F22 series
