SF30C
Share me

Immagine Principale
  • SF30C
  • SF30C
  • SF30C
  • SF30C
  • SF30C
  • SF30C
    Code Orient. Vertex D.Ext (cm) D.Int. (cm) H (cm) D (cm) Weight (kg) Arch num Color Avail.
    SF30C200V vertical - 200 190 29 5 8,60 4 AL
    SF30C200VB vertical - 200 190 29 5 8,60 4 BK
    SF30C300V vertical - 300 290 29 5 13,00 4 AL
    SF30C300VB vertical - 300 290 29 5 13,00 4 BK
    SF30C400V vertical - 400 390 29 5 17,40 4 AL
    SF30C400VB vertical - 400 390 29 5 17,40 4 BK
    SF30C500V vertical - 500 490 29 5 21,80 8 AL
    SF30C500VB vertical - 500 490 29 5 21,80 8 BK
    SF30C600V vertical - 600 590 29 5 26,20 8 AL
    SF30C600VB vertical - 600 590 29 5 26,20 8 BK
    SF30C200H horiz. - 200 142 29 5 8,60 4 AL
    SF30C200HB horiz. - 200 142 29 5 8,60 4 BK
    SF30C300H horiz. - 300 242 29 5 13,00 4 AL
    SF30C300HB horiz. - 300 242 29 5 13,00 4 BK
    SF30C400H horiz. - 400 342 29 5 17,40 4 AL
    SF30C400HB horiz. - 400 342 29 5 17,40 4 BK
    SF30C500H horiz. - 500 442 29 5 21,80 8 AL
    SF30C500HB horiz. - 500 442 29 5 21,80 8 BK
    SF30C600H horiz. - 600 542 29 5 26,20 8 AL
    SF30C600HB horiz. - 600 542 29 5 26,20 8 BK

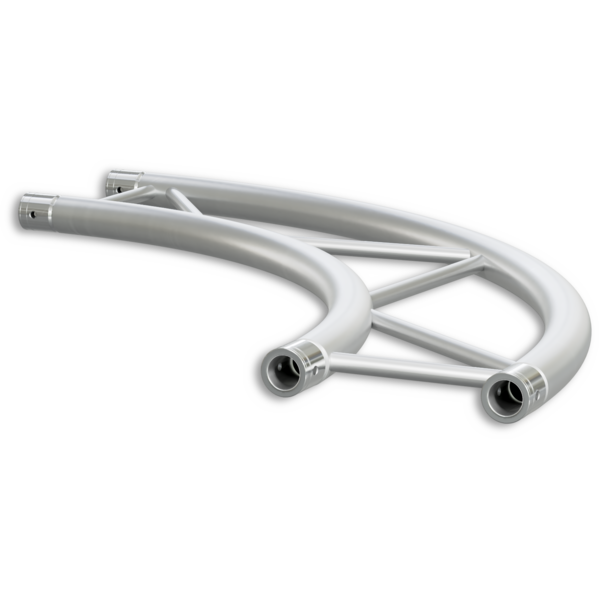

    flat section circular aluminium truss structure with 30cm sides

    Features:
    Lengthwise: extruded tubes, Ø 50x2 mm 6082 T6
    Diagonal: extruded tubes, Ø 25x2 mm 6082 T6
    Plate: conical quick-lock connectors
    x4 Fast connection kits FCF5 included

    Product Code
    Accessory Code
    Description
    SF30C (include)
    SF30 (include)
    SF30T4 (include)
    SF30L4 (include)
    SF30X4 (include)
    SF30T3 (include)
    SF30L3 (include)
    SF30L2 (include)
    SF40X4 (include)
    SF40T3 (include)
    SF40L2 (include)
    SF40C (include)
    LF5H (optional)
    Quick connection, 2 spigots, 4 pins, 4 safety spring, SF30/40
