    Code Type Way (nr) Angle Orient. Vertex W (cm) H (cm) D (cm) Avail.
    SF30L2045H L2 2 45° horiz. - 50 5 50
    SF30L2045HB L2 2 45° horiz. - 50 5 50
    SF30L2045V L2 2 45° vertical - 50 29 50
    SF30L2045VB L2 2 45° vertical - 50 29 50
    SF30L2060H L2 2 60° horiz. - 50 5 50
    SF30L2060HB L2 2 60° horiz. - 50 5 50
    SF30L2060V L2 2 60° vertical - 50 29 50
    SF30L2060VB L2 2 60° vertical - 50 29 50
    SF30L2090H L2 2 90° horiz. - 50 5 50
    SF30L2090HB L2 2 90° horiz. - 50 5 50
    SF30L2090V L2 2 90° vertical - 50 29 50
    SF30L2090VB L2 2 90° vertical - 50 29 50
    SF30L2120H L2 2 120° horiz. - 50 5 50
    SF30L2120HB L2 2 120° horiz. - 50 5 50
    SF30L2120V L2 2 120° vertical - 50 29 50
    SF30L2120VB L2 2 120° vertical - 50 29 50
    SF30L2135H L2 2 135° horiz. - 50 5 50
    SF30L2135HB L2 2 135° horiz. - 50 5 50
    SF30L2135V L2 2 135° vertical - 50 29 50
    SF30L2135VB L2 2 135° vertical - 50 29 50

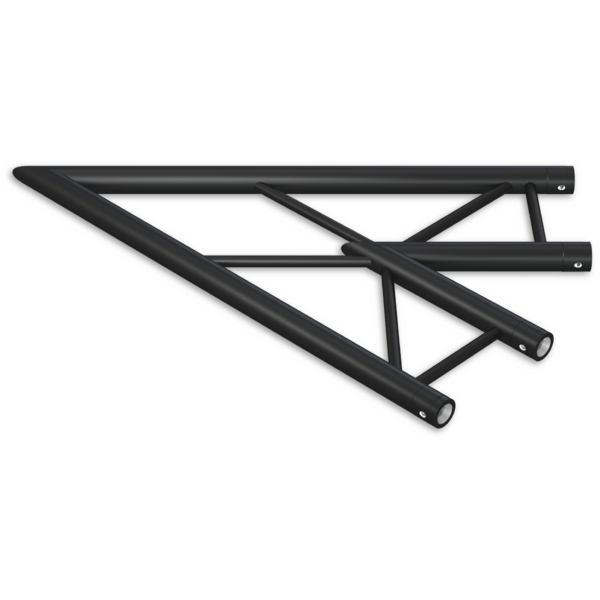

    2-way L corner for SF30 truss series.

    Features:
    Lengthwise: extruded tubes, Ø 50x2 mm 6082 T6.
    Diagonal: extruded tubes, Ø 20x2 mm 6082 T6.
    Plate: conical Quicklock connectors.
    kit Fast Connection FCF5 included.

    Product Code
    Accessory Code
    Description
    SF30L2 (include)
    SF30 (include)
    SF30T4 (include)
    SF30L4 (include)
    SF30X4 (include)
    SF30T3 (include)
    SF30L3 (include)
    SF40X4 (include)
    SF40T3 (include)
    SF40L2 (include)
    SF30C (include)
    SF40C (include)
    LF5H (optional)
    Quick connection, 2 spigots, 4 pins, 4 safety spring, SF30/40
