SF40
ORDER CODE: SF40
Share me

Immagine Principale
  • SF40
  • SF40
  • SF40
  • SF40
  • SF40
  • Code Tube (mm) Diagonal (mm) W (mm) H (mm) D (mm) Weight (kg) Volume (m³) Color Avail.
    SF40050 50x2 25x2 500 50 400 1,80 0,010 AL
    SF40050B
    DISCONTINUED
    50x2 25x2 500 50 400 1,80 0,010 BK
    SF40100 50x2 25x2 1000 50 400 3,00 0,020 AL
    SF40100B
    DISCONTINUED
    50x2 25x2 1000 50 400 3,00 0,020 BK
    SF40150 50x2 25x2 1500 50 400 4,58 0,030 AL
    SF40150B
    DISCONTINUED
    50x2 25x2 1500 50 400 4,58 0,030 BK
    SF40200 50x2 25x2 2000 50 400 5,00 0,040 AL
    SF40200B
    DISCONTINUED
    50x2 25x2 2000 50 400 5,00 0,040 BK
    SF40250 50x2 25x2 2500 50 400 6,10 0,050 AL
    SF40250B
    DISCONTINUED
    50x2 25x2 2500 50 400 6,10 0,050 BK
    SF40300 50x2 25x2 3000 50 400 7.10 0,060 AL
    SF40300B
    DISCONTINUED
    50x2 25x2 3000 50 400 7,10 0,060 BK
    SF40350 50x2 25x2 3500 50 400 9,15 0,070 AL
    SF40350B
    DISCONTINUED
    50x2 25x2 3500 50 400 9,15 0,070 BK
    SF40400 50x2 25x2 4000 50 400 9,10 0,080 AL
    SF40400B
    DISCONTINUED
    50x2 25x2 4000 50 400 9,10 0,080 BK

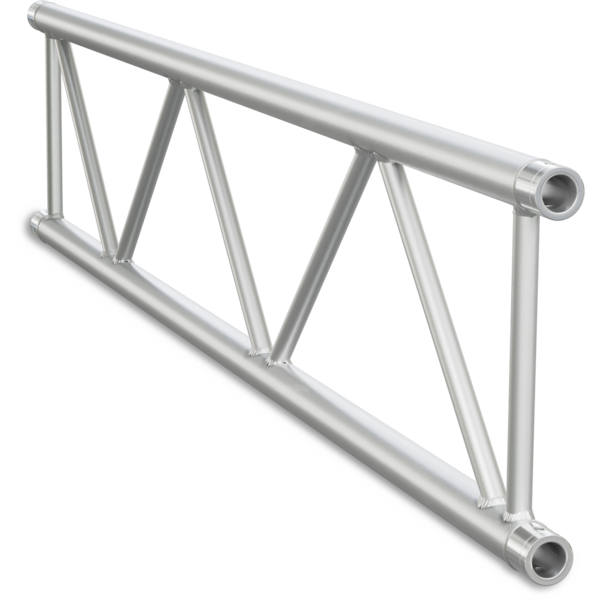

    Flat section aluminium truss with 40 cm sides.

    Features:
    Lengthwise: extruded tubes, Ø 50x2 mm, EN AW 6082 T6.
    Diagonal: extruded tubes, Ø 25x2 mm, EN AW 6082 T6.
    Plate: conical quick-lock connectors.
    Fast connection kit FCF5 included.

    Accessory Code
    Description
    include
    Quick connection, 4 spigots, 8 pins, 8 safety spring, SQ-HQ30/40
    optional
    2-way corner for SF40 Series, extrude tube 50x2mm, FCF5 included, 45°, Vert.
    optional
    2-way corner for SF40 Series, extrude tube 50x2mm, FCF5 included, 60°, Vert.
    optional
    2-way corner for SF40 Series, extrude tube 50x2mm, FCF5 included, 90°, Vert.
    optional
    2-way corner for SF40 Series, extrude tube 50x2mm, FCF5 included, 120°, Vert.
    optional
    2-way corner for SF40 Series, extrude tube 50x2mm, FCF5 included, 135°, Vert.
    optional
    3-way T joint for SF40 Series, extrude tube 50x2mm, 2x FCF5 included
    optional
    4-way X joint for SF40 Series, extrude tube 50x2mm, 2x FCF5 included
    optional
    Universal aluminium floor plate for square section trusses, dim. (WxH) 500x500mm
    optional
    Universal circular floor plate for aluminium trusses, dimensions 650mm
    optional
    Universal aluminium floor plate for square section trusses, dim. (WxH) 800x800mm
    optional
    Aluminium ground base for flat section trusses, SF40
