SF40C
Share me

Immagine Principale
  • SF40C
  • SF40C
  • SF40C
  • SF40C
  • SF40C
  • SF40C
    Code Orient. Vertex D.Ext (cm) D.Int. (cm) H (cm) D (cm) Weight (kg) Arc num Color Avail.
    SF40C150V vertical - 150 140 40 5 6,40 4 AL
    SF40C150VB vertical - 150 140 40 5 6,40 4 BK
    SF40C200V vertical - 200 190 40 5 8,60 4 AL
    SF40C200VB vertical - 200 190 40 5 8,60 4 BK
    SF40C300V vertical - 300 290 40 5 13,00 4 AL
    SF40C300VB vertical - 300 290 40 5 13,00 4 BK
    SF40C200H horiz. - 200 120 5 40 7,10 4 AL
    SF40C200HB horiz. - 200 120 5 40 7,10 4 BK
    SF40C300H horiz. - 300 220 5 40 11,50 4 AL
    SF40C300HB horiz. - 300 220 5 40 11,50 4 BK

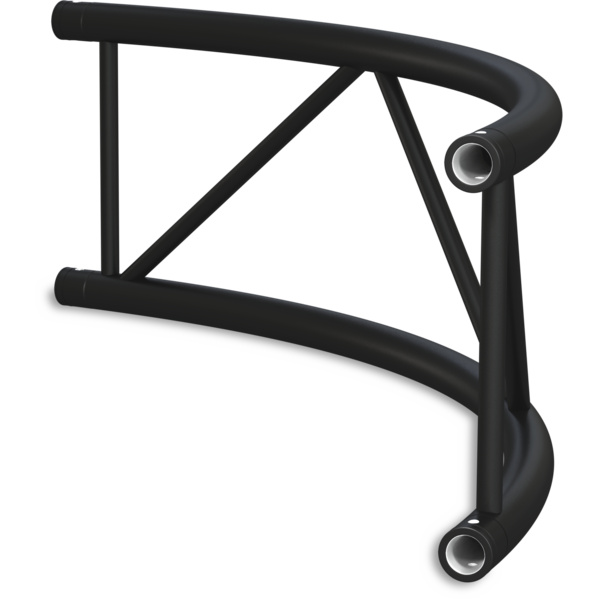

    Flat section circular aluminium truss structure with 40 cm sides.

    Features:
    Lengthwise: extruded tubes, Ø 50x2 mm, EN AW 6082 T6.
    Diagonal: extruded tubes, Ø 25x2 mm, EN AW 6082 T6.
    Plate: conical quick-lock connectors.
    x4 fast connection kits FCF5 included.

    ITEMS REF.
    Accessory Code
    Description
    SF40C (include)
    SF30 (include)
    SF30T4 (include)
    SF30L4 (include)
    SF30X4 (include)
    SF30T3 (include)
    SF30L3 (include)
    SF30L2 (include)
    SF40X4 (include)
    SF40T3 (include)
    SF40L2 (include)
    SF30C (include)
    LF5H (optional)
    Quick connection, 2 spigots, 4 pins, 4 safety spring, SF30/40
