    Code Smartbook recharging flight-case IRC AC cable Avail.
    SMARTBOOK1 1 NO NO NO

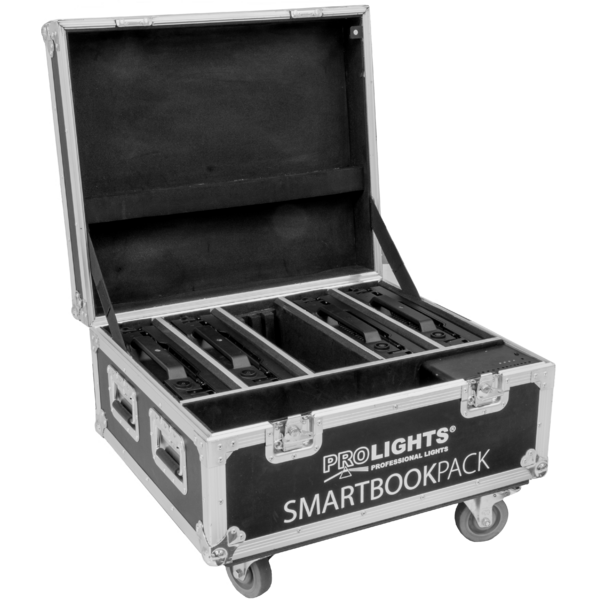

    SMARTBOOKPACK 4 1 1 1

    SMARTBOOK is a wireless battery wash light, performing high output in a super-slim foldable housing. SMARTBOOK, being IP rated, is an ideal tool for outdoor events to light up landscapes and buildings, all with a magnetic optical system (+50° included) to focus the light. SMARTBOOK comes with a quick magnetic recharge flight case and control through wireless DMX.

    Features:
    96x3 W RGBW / FC LED and with included +50° magnetic filter
    IP rated for outdoor events and with tiltable head
    Wireless DMX built-in receiver

    LIGHT SOURCE
    • Source:
      96x3
      W
      RGBW LEDs
    • Luminous flux:
      without filter: 3'019,9 lm - with 50° filter: 2'117 lm - with 60 x 10° filter: 2'261
      lm
    • Lux:
      without filter: 1'593 lx - with 50° filter: 404 lx - with 60 x 10° filter: 608
      lx
      @3 m full
    • Source life expectancy:
      > 50.000 h
    OPTICS
    • Beam angle:
      without filter: 24° - with 50° filter: 35° - with 60 x 10° filter: 40 x 24
      °
    • Field angle:
      without filter: 40° - with 50° filter: 70° - with 60 x 10° filter: 81 x 45
      °
    • Additional optics:
      magnetic 60 x 10° asymmetric filter (optional)
    • Other:
      magnetic +50° filter (included)
    COLOUR SYSTEM
    • Colour mixing:
      RGBW
    • Colour wheel:
      virtual colour wheel with presets
    DYNAMIC EFFECTS
    • Static colour mode:
      selection of static colour
    • Manual colour mode:
      manual adjustment of colour
    • Auto mode:
      built-in programs with execution speed adjustment
    BODY
    • Hardware on-board:
      foldable head to focus the beam
    • Tilt angle:
      0 - 90
      °
    • Body:
      sturdy die-cast aluminium body conceived for long-time durability
    • Body colour:
      black
    CONTROL
    • Protocols:
      W-DMX
    • DMX channels:
      4 / 6 / 10
      channel
    • W-DMX:
      included, wireless solution receiver
    • Display:
      black OLED high resolution display
    • IR:
      infrared sensor controlled by remote
    • Master/Slave:
      for synchronized operation of more units linked in a chain
    ELECTRONICS
    • Dimmer:
      linear 0 ~ 100% electronic dimmer
    • Dimmer curves:
      4
      different dimming curves available
    • Strobe / shutter:
      1 - 30
      Hz, electronic
    • Operating temperature:
      0° ~ +45°
    • Flicker:
      flicker free operation
    ELECTRICAL
    • Power consumption (at 230 V):
      424
      W
    • Power consumption (at 120 V):
      426
      W
    BATTERY
    • Battery:
      26 A h - 18,5
      V
    • Estimated battery life in colour change mode up to:
      12
      h
    • Estimated battery life in single colour mode up to:
      12
      h
    • Estimated battery life in full-mode up to:
      9
      h
    • Re-charge connection:
      magnetic fast-charge in case
    • Re-charge time:
      7
      h/max
    • Battery status:
      shown on display
    PHYSICAL
    • Cooling:
      natural cooling of the peculiar chassis and to absence of fans
    • Data connection:
      W-DMX receiver
    • Power connection:
      Seetronic powerCON waterproof IN/OUT connectors
    • IP rating:
      65
      for temporary outdoor application, not for fixed installation
    • Dimensions (WxHxD):
      395x213x101
      mm
    • Weight:
      8,4
      kg
