SMARTTORCH
Share me

IP54

Immagine Principale
  • SMARTTORCH
  • SMARTTORCH
  • SMARTTORCH
  • SMARTTORCH
  • SMARTTORCH
  • SMARTTORCH
  • SMARTTORCH
  • SMARTTORCH
  • SMARTTORCH
    Code SmartTorch IRC Recharger Avail.
    SMARTTORCH1 1 1 1x1
    SMARTTORCHPACK 6 1 1x6

    SMARTTORCH is an IP54 wireless, battery powered LED candle designed specifically for the event industry. Maintaining the aesthetic look of a candle with a simple normal flame effect, the SMARTTORCH can become part of a show with its RGBW LED and wireless DMX control.

    Features:
    Battery powered and wireless DMX control for fast deployment and accurate control
    Standard flame effect plus full RGBW control for dynamic effects

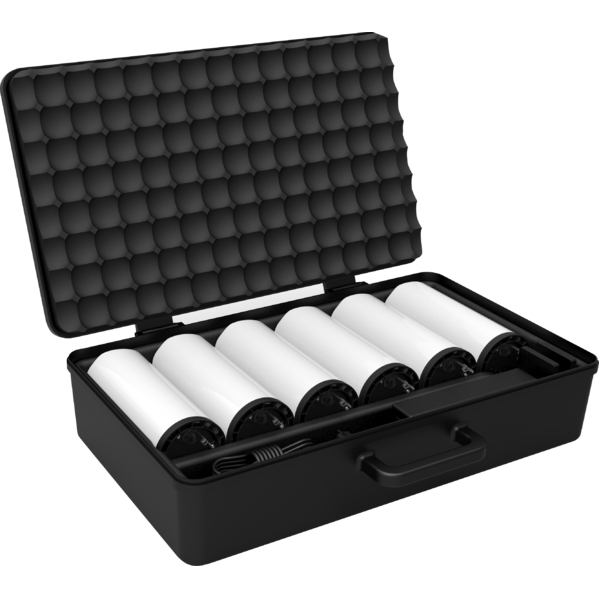

    Available in a SMARTTORCH PACK featuring 6 lights with accessories in an ABS case

    LIGHT SOURCE
    • Source:
      8x0.25
      W
      RGB + warm white
    • CT:
      2800~3200
      K
    • Source life expectancy:
      >30.000 h
    COLOUR SYSTEM
    • Colour mixing:
      RGBW/FC
    • Macros:
      several pre-build pixel macros with adjustable speed
    BODY
    • Body:
      paraffin wax
    CONTROL
    • Protocols:
      W-DMX
    • DMX channels:
      3 / 9 / 21
      channel
    • W-DMX:
      included, wireless solution receiver
    • Display:
      LED display user interface
    • Firmware upgrade:
      yes, via USB-DMX interface (UPBOX1) not included
    • IR:
      infrared sensor controlled by remote
    ELECTRONICS
    • Dimmer:
      linear 0~100% electronic dimmer
    • Dimmer curves:
      different dimming curves available
    • Strobe / shutter:
      1 - 30
      Hz, electronic
    • Operating temperature:
      -10° ~ +45°
    ELECTRICAL
    • Power supply:
      DC5V - 1.6A
    • Power consumption (at 230V):
      2.85
      W
    BATTERY
    • Battery:
      5.0 Ah - 3.7
      V
      lithium
    • Estimated battery life in colour change mode up to:
      21
      h
    • Estimated battery life in single colour mode up to:
      R - 18h, G - 18h, B - 19h, W - 18
      h
    • Estimated battery life in full-mode up to:
      8
      h
    • Re-charge connection:
      power cable fast-charge in pelican case
    • Re-charge time:
      5
      h/max
    PHYSICAL
    • Data connection:
      W-DMX receiver
    • IP rating:
      54
    • Dimensions (WxHxD):
      75x192x75
      mm
    • Weight:
      0.64
      kg
