SQ22
ORDER CODE: SQ22
Share me

Immagine Principale
  • SQ22
  • SQ22
  • SQ22
  • SQ22
  • Code Tube (mm) Diagonal (mm) W (mm) H (mm) D (mm) Weight (kg) Volume (m³) Avail.
    SQ22050
    END OF LIFE
    35x1,5 8x4 500 220 220 1,63 0,024
    SQ22100
    DISCONTINUED
    35x1,5 8x4 1000 220 220 2,90 0,048
    SQ22150
    END OF LIFE
    35x1,5 8x4 1500 220 220 4,10 0,073
    SQ22200
    DISCONTINUED
    35x1,5 8x4 2000 220 220 5,30 0,097
    SQ22250 35x1,5 8x4 2500 220 220 6,50 0,121
    SQ22300 35x1,5 8x4 3000 220 220 7,80 0,145
    SQ22350
    DISCONTINUED
    35x1,5 8x4 3500 220 220 8,99 0,169
    SQ22400
    DISCONTINUED
    35x1,5 8x4 4000 220 220 10,18 0,194

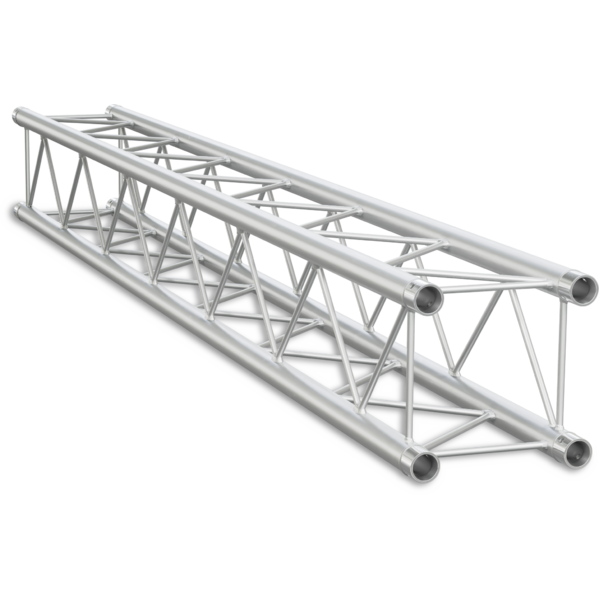

    Square section aluminium truss with 22 cm long sides

    Features:
    Lengthwise: extruded tubes, Ø 35x1,5 mm, EN AW 6060 T6.
    Diagonal: extruded tubes, Ø 8x4 mm, EN AW 6060 T6.
    Plate: conical quick-lock connectors.
    Fast connection kit FCQ3 included.

    Accessory Code
    Description
    include
    Quick connection, 4 spigots, 8 pins, 8 safety spring, SQ22
    optional
    2-way corner for SQ22 Series, extrude tube 35x2mm, FCQ3 included, 45°
    optional
    2-way corner for SQ22 Series, extrude tube 35x2mm, FCQ3 included, 60°
    optional
    2-way corner for SQ22 Series, extrude tube 35x2mm, FCQ3 included, 90°
    optional
    2-way corner for SQ22 Series, extrude tube 35x2mm, FCQ3 included, 120°
    optional
    2-way corner for SQ22 Series, extrude tube 35x2mm, FCQ3 included, 135°
    optional
    3-way L corner for SQ22 Series, extrude tube 35x2mm, 2x FCQ3 included
    optional
    3-way T joint for SQ22 Series, extrude tube 35x2mm, 2x FCQ3 included
    optional
    4-way X joint for SQ22 Series, extrude tube 35x2mm, 2x FCQ3 included
    optional
    4-way T joint for SQ22 Series, extrude tube 35x2mm, 2x FCQ3 included
    optional
    5-way T joint for SQ22 Series, extrude tube 35x2mm, 2x FCQ3 included
    optional
    6 way DADO module, SQ22 series compatible, 2x FCQ3K8 included
    optional
    Aluminium ground base for square section trusses, SQ22 Series
