SQ22C
Share me

Immagine Principale
  • SQ22C
  • SQ22C
  • SQ22C
    Code Orient. Vertex D.Ext (cm) D.Int. (cm) H (cm) D (cm) Weight (kg) Arch num Avail.
    SQ22C200 - - 200 156 22 22 7,90 4
    SQ22C300 - - 300 256 22 22 12,30 4
    SQ22C400 - - 400 356 22 22 16,60 4
    SQ22C500 - - 500 456 22 22 21,00 8
    SQ22C600 - - 600 556 22 22 25,40 8

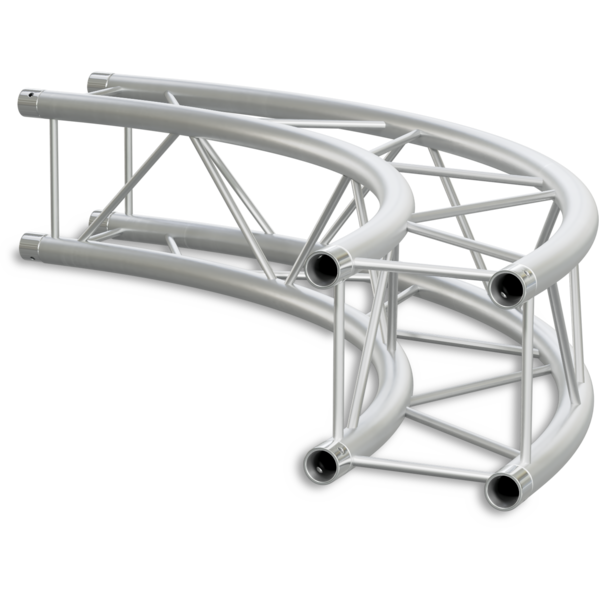

    Square section circular aluminium truss structure with 22cm sides

    Features:
    Lengthwise: extruded tubes, Ø 35x2 mm 6082 T6
    Diagonal: extruded tubes, Ø 8 mm 6082 T6
    Plate: conical quick-lock connectors
    x4 Fast connection kits FCQ3 included

    Product Code
    Accessory Code
    Description
    SQ22C (include)
    SQ22 (include)
    SQ22T4 (include)
    SQ22X4 (include)
    SQ22T3 (include)
    SQ22L3 (include)
    SQ22L2 (include)
    SQ22T5 (include)
    Quick connection, 4 spigots, 8 pins, 8 safety spring, SQ22
