SQ30
|
Code |
Tube (mm) |
Diagonal (mm) |
W (cm) |
H (cm) |
D (cm) |
Weight (kg) |
Volume (mc) |
Color |
|
|
Avail. |
|
|
SQ30021 |
50x2 |
20x2 |
21 |
29 |
29 |
1,70 |
0,017 |
AL |
|
|
|
|
|
SQ30021B |
50x2 |
20x2 |
21 |
29 |
29 |
1,70 |
0,017 |
BK |
|
|
|
|
|
SQ30025 |
50x2 |
20x2 |
25 |
29 |
29 |
2 |
0,021 |
AL |
|
|
|
|
|
SQ30025B |
50x2 |
20x2 |
25 |
29 |
29 |
2 |
0,021 |
BK |
|
|
|
|
|
SQ30029 |
50x2 |
20x2 |
29 |
29 |
29 |
2,3 |
0,024 |
AL |
|
|
|
|
|
SQ30029B |
50x2 |
20x2 |
29 |
29 |
29 |
2,3 |
0,024 |
BK |
|
|
|
|
|
SQ30050 |
50x2 |
20x2 |
50 |
29 |
29 |
4 |
0,042 |
AL |
|
|
|
|
|
SQ30050B |
50x2 |
20x2 |
50 |
29 |
29 |
4 |
0,042 |
BK |
|
|
|
|
|
SQ30100 |
50x2 |
20x2 |
100 |
29 |
29 |
6 |
0,084 |
AL |
|
|
|
|
|
SQ30100B |
50x2 |
20x2 |
100 |
29 |
29 |
6 |
0,084 |
BK |
|
|
|
|
|
SQ30150 |
50x2 |
20x2 |
150 |
29 |
29 |
8,5 |
0,126 |
AL |
|
|
|
|
|
SQ30150B |
50x2 |
20x2 |
150 |
29 |
29 |
8,5 |
0,126 |
BK |
|
|
|
|
|
SQ30200 |
50x2 |
20x2 |
200 |
29 |
29 |
10,9 |
0,168 |
AL |
|
|
|
|
|
SQ30200B |
50x2 |
20x2 |
200 |
29 |
29 |
10,9 |
0,168 |
BK |
|
|
|
|
|
SQ30250 |
50x2 |
20x2 |
250 |
29 |
29 |
13,1 |
0,210 |
AL |
|
|
|
|
|
SQ30250B |
50x2 |
20x2 |
250 |
29 |
29 |
13,1 |
0,210 |
BK |
|
|
|
|
|
SQ30300 |
50x2 |
20x2 |
300 |
29 |
29 |
15,5 |
0,252 |
AL |
|
|
|
|
|
SQ30300B |
50x2 |
20x2 |
300 |
29 |
29 |
15,5 |
0,252 |
BK |
|
|
|
|
|
SQ30350 |
50x2 |
20x2 |
350 |
29 |
29 |
17,8 |
0,294 |
AL |
|
|
|
|
|
SQ30350B |
50x2 |
20x2 |
350 |
29 |
29 |
17,8 |
0,294 |
BK |
|
|
|
|
|
SQ30500B |
50x2 |
20x2 |
500 |
29 |
29 |
24,3 |
0,421 |
BK |
|
|
|
|
|
SQ30400 |
50x2 |
20x2 |
400 |
29 |
29 |
19,6 |
0,336 |
AL |
|
|
|
|
|
SQ30400B |
50x2 |
20x2 |
400 |
29 |
29 |
19,6 |
0,336 |
BK |
|
|
|
|
|
SQ30450 |
50x2 |
20x2 |
450 |
29 |
29 |
22 |
0,378 |
AL |
|
|
|
|
|
SQ30450B |
50x2 |
20x2 |
450 |
29 |
29 |
22 |
0,378 |
BK |
|
|
|
|
|
SQ30500 |
50x2 |
20x2 |
500 |
29 |
29 |
24,3 |
0,421 |
AL |
|
|
|
|

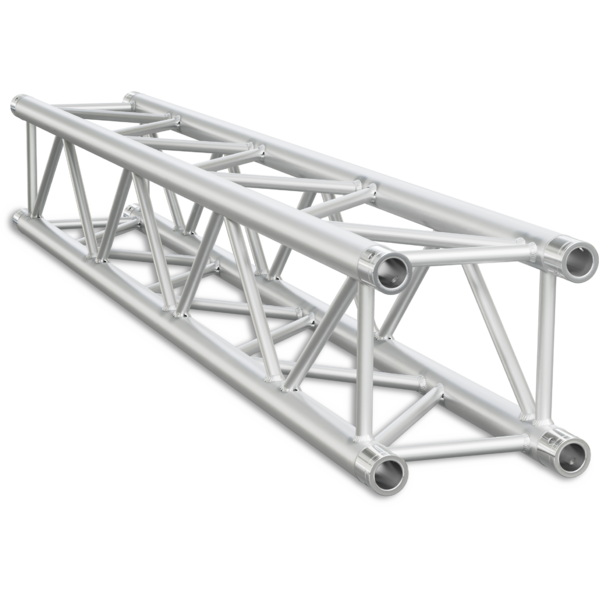

Square section aluminium truss with 29cm long sides
Features:Lengthwise: extruded tubes, Ø 50x2 mm 6082 T6
Diagonal: extruded tubes, Ø 20x2 mm 6082 T6
Plate: conical quick-lock connectors
Fast connection kit FCQ5 included
Product Code
Accessory Code
Description
Flexible truss cover, for triangle/square section 29cm
Quick connection, 4 spigots, 8 pins, 8 safety spring, SQ-HQ30/40
6 way DADO module, HQ30 series compatible, 2x FCQ5K8 included
2-way corner for SQ30 Series, extrude tube 50x2mm, FCQ5 included, 45°
2-way corner for SQ30 Series, extrude tube 50x2mm, FCQ5 included, 60°
2-way corner for SQ30 Series, extrude tube 50x2mm, FCQ5 included, 90°
2-way corner for SQ30 Series, extrude tube 50x2mm, FCQ5 included, 120°
2-way corner for SQ30 Series, extrude tube 50x2mm, FCQ5 included, 135°
3-way L corner for SQ30 Series, extrude tube 50x2mm, 2x FCQ5 included
3-way T joint for SQ30 Series, extrude tube 50x2mm, 2x FCQ5 included
4-way X joint for SQ30 Series, extrude tube 50x2mm, 2x FCQ5 included
4-way T joint for SQ30 Series, extrude tube 50x2mm, 2x FCQ5 included
5-way T joint for SQ30 Series, extrude tube 50x2mm, 2x FCQ5 included
Universal aluminium floor plate for square section trusses, dim. (WxH) 500x500mm
Universal circular floor plate for aluminium trusses, dimensions 650mm
Universal aluminium floor plate for square section trusses, dim. (WxH) 800x800mm
Aluminium ground base for square section trusses, SQ-HQ30,
Trolley stack for S-HQ-ST30
Top for trolley for S-HQ-ST30
Safety spring for Powertruss series Fast Connection kit SQ-T-F22 series
