SQ30
ORDER CODE: SQ30
Share me

Immagine Principale
  • SQ30
  • SQ30
  • SQ30
  • SQ30
  • SQ30
  • Code Tube (mm) Diagonal (mm) W (mm) H (mm) D (mm) Weight (kg) Volume (m³) Color Avail.
    SQ30021 50x2 20x2 210 290 290 1,70 0,017 AL
    SQ30021B
    DISCONTINUED
    50x2 20x2 210 290 290 1,70 0,017 BK
    SQ30025 50x2 20x2 250 290 290 2 0,021 AL
    SQ30025B
    DISCONTINUED
    50x2 20x2 250 290 290 2 0,021 BK
    SQ30029 50x2 20x2 290 290 290 2,3 0,024 AL
    SQ30029B
    DISCONTINUED
    50x2 20x2 290 290 290 2,3 0,024 BK
    SQ30050 50x2 20x2 500 290 290 3,5 0,042 AL
    SQ30050B
    END OF LIFE
    50x2 20x2 500 290 290 3,5 0,042 BK
    SQ30100 50x2 20x2 1000 290 290 5,6 0,084 AL
    SQ30100B
    DISCONTINUED
    50x2 20x2 1000 290 290 5,6 0,084 BK
    SQ30150 50x2 20x2 1500 290 290 8,3 0,126 AL
    SQ30150B
    DISCONTINUED
    50x2 20x2 1500 290 290 8,3 0,126 BK
    SQ30200 50x2 20x2 2000 290 290 10,6 0,168 AL
    SQ30200B
    END OF LIFE
    50x2 20x2 2000 290 290 10,6 0,168 BK
    SQ30250 50x2 20x2 2500 290 290 12,8 0,210 AL
    SQ30250B
    END OF LIFE
    50x2 20x2 2500 290 290 12,8 0,210 BK
    SQ30300 50x2 20x2 3000 290 290 14,2 0,252 AL
    SQ30300B
    END OF LIFE
    50x2 20x2 3000 290 290 14,2 0,252 BK
    SQ30350 50x2 20x2 3500 290 290 17,5 0,294 AL
    SQ30350B
    DISCONTINUED
    50x2 20x2 3500 290 290 17,5 0,294 BK
    SQ30400 50x2 20x2 4000 290 290 18,6 0,336 AL
    SQ30400B
    END OF LIFE
    50x2 20x2 4000 290 290 18,6 0,336 BK

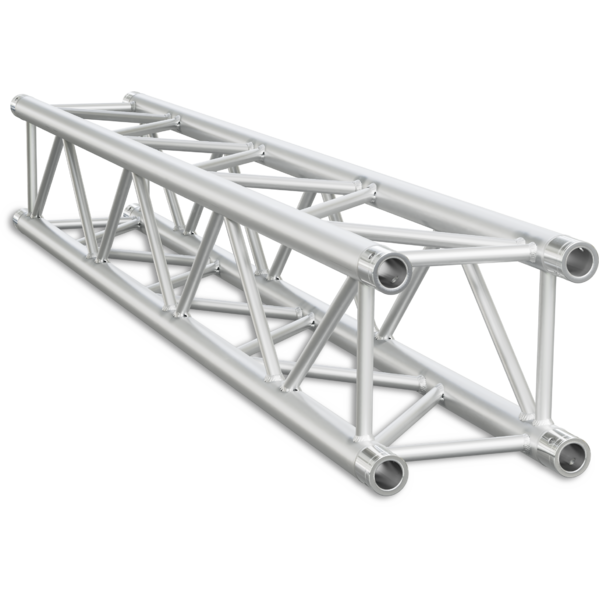

    Square section aluminium truss with 29cm long sides

    Features:
    Lengthwise: extruded tubes, Ø 50x2 mm, EN AW 6082 T6.
    Diagonal: extruded tubes, Ø 20x2 mm, EN AW 6082 T6.
    Plate: conical quick-lock connectors.
    Fast connection kit FCQ5 included.

    Accessory Code
    Description
    optional
    Flexible truss cover, for triangle/square section 29cm
    include
    Quick connection, 4 spigots, 8 pins, 8 safety spring, SQ-HQ30/40
    optional
    6 way DADO module, HQ30 series compatible, 2x FCQ5K8 included
    optional
    2-way corner for SQ30 Series, extrude tube 50x2mm, FCQ5 included, 45°
    optional
    2-way corner for SQ30 Series, extrude tube 50x2mm, FCQ5 included, 60°
    optional
    2-way corner for SQ30 Series, extrude tube 50x2mm, FCQ5 included, 90°
    optional
    2-way corner for SQ30 Series, extrude tube 50x2mm, FCQ5 included, 120°
    optional
    2-way corner for SQ30 Series, extrude tube 50x2mm, FCQ5 included, 135°
    optional
    3-way L corner for SQ30 Series, extrude tube 50x2mm, 2x FCQ5 included
    optional
    3-way T joint for SQ30 Series, extrude tube 50x2mm, 2x FCQ5 included
    optional
    4-way X joint for SQ30 Series, extrude tube 50x2mm, 2x FCQ5 included
    optional
    4-way T joint for SQ30 Series, extrude tube 50x2mm, 2x FCQ5 included
    optional
    5-way T joint for SQ30 Series, extrude tube 50x2mm, 2x FCQ5 included
    optional
    Universal aluminium floor plate for square section trusses, dim. (WxH) 500x500mm
    optional
    Universal circular floor plate for aluminium trusses, dimensions 650mm
    optional
    Universal aluminium floor plate for square section trusses, dim. (WxH) 800x800mm
    optional
    Aluminium ground base for square section trusses, SQ-HQ30,
    optional
    Trolley for S-HQ-ST30
    optional
    Trolley stack for S-HQ-ST30
    optional
    Top for trolley for S-HQ-ST30
    optional
    Conical pin for Powertruss series Fast Connection kit SQ-T-F22 series
    optional
    Safety spring for Powertruss series Fast Connection kit SQ-T-F22 series
