SQ40
Share me

Immagine Principale
  • SQ40
  • SQ40
  • SQ40
  • SQ40
  • SQ40
  • SQ40
    Code Tube (mm) Diagonal (mm) W (cm) H (cm) D (cm) Weight (kg) Volume (mc) Color Avail.
    SQ40050 50x2 20x2 50 40 40 4,9 0,080 AL
    SQ40050B 50x2 20x2 50 40 40 4,9 0,080 BK
    SQ40100 50x2 20x2 100 40 40 8,1 0,160 AL
    SQ40100B 50x2 20x2 100 40 40 8,1 0,160 BK
    SQ40150 50x2 20x2 150 40 40 12 0,240 AL
    SQ40150B 50x2 20x2 150 40 40 12 0,240 BK
    SQ40200 50x2 20x2 200 40 40 15,4 0,320 AL
    SQ40200B 50x2 20x2 200 40 40 15,4 0,320 BK
    SQ40250 50x2 20x2 250 40 40 19,1 0,400 AL
    SQ40250B 50x2 20x2 250 40 40 19,1 0,400 BK
    SQ40300 50x2 20x2 300 40 40 21,7 0,480 AL
    SQ40300B 50x2 20x2 300 40 40 21,7 0,480 BK
    SQ40350 50x2 20x2 350 40 40 25 0,560 AL
    SQ40350B 50x2 20x2 350 40 40 25 0,560 BK
    SQ40400 50x2 20x2 400 40 40 28 0,640 AL
    SQ40400B 50x2 20x2 400 40 40 28 0,640 BK
    SQ40450 50x2 20x2 450 40 40 31,1 0,720 AL
    SQ40450B 50x2 20x2 450 40 40 31,1 0,720 BK
    SQ40500 50x2 20x2 500 40 40 34.4 0,800 AL
    SQ40500B 50x2 20x2 500 40 40 34,4 0,800 BK

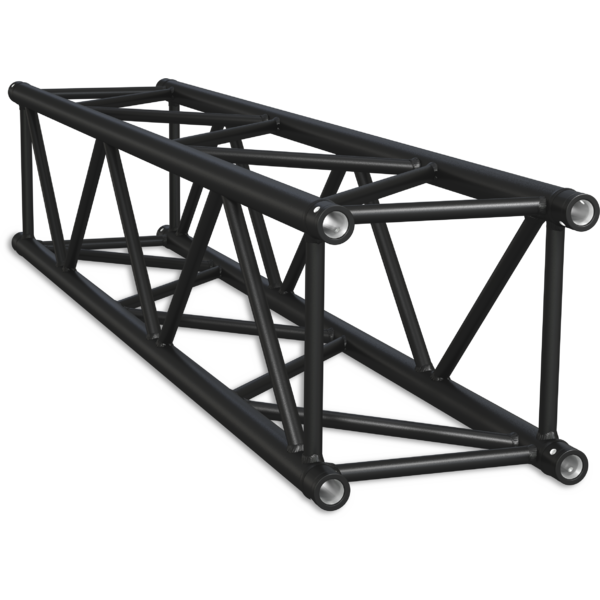

    Square section aluminium truss with 40cm sides

    Features:
    Lengthwise: extruded tubes, Ø 50x2 mm 6082 T6
    Diagonal: extruded tubes, Ø 20x2 mm 6082 T6
    Plate: conical quick-lock connectors
    Fast connection kit FCQ5 included

    Product Code
    Accessory Code
    Description
    SQ40 (include)
    HQ40 (include)
    HQ30L3 (include)
    HQ30L2 (include)
    SQ40X6 (include)
    SQ40T5 (include)
    SQ40T4 (include)
    SQ40X4 (include)
    SQ40T3 (include)
    SQ40L3 (include)
    HQ30T3 (include)
    HQ30X4 (include)
    SQ30T4 (include)
    SQ30X4 (include)
    SQ30T3 (include)
    SQ30L3 (include)
    SQ30L2 (include)
    HQ30X6 (include)
    HQ30T5 (include)
    HQ30T4 (include)
    SQ40L2 (include)
    HQ40X6 (include)
    HQ30 (include)
    SQ30 (include)
    ST40 (include)
    SF40 (include)
    HQ40C (include)
    SQ40C (include)
    HQ30C (include)
    SQ30C (include)
    HQ40T5 (include)
    HQ40T4 (include)
    HQ40X4 (include)
    SQ30T5 (include)
    HQ40T3 (include)
    HQ40L3 (include)
    HQ40L2 (include)
    Quick connection, 4 spigots, 8 pins, 8 safety spring, SQ-HQ30/40
    SQ40 (optional)
    2-way corner for SQ40 Series, extrude tube 50x2mm, FCQ5 included, 45°
    SQ40 (optional)
    2-way corner for SQ40 Series, extrude tube 50x2mm, FCQ5 included, 60°
    SQ40 (optional)
    2-way corner for SQ40 Series, extrude tube 50x2mm, FCQ5 included, 90°
    SQ40 (optional)
    2-way corner for SQ40 Series, extrude tube 50x2mm, FCQ5 included, 120°
    SQ40 (optional)
    2-way corner for SQ40 Series, extrude tube 50x2mm, FCQ5 included, 135
    SQ40 (optional)
    3-way L corner for SQ40 Series, extrude tube 50x2mm, 2x FCQ5 included
    SQ40 (optional)
    3-way T joint for SQ40 Series, extrude tube 50x2mm, 2x FCQ5 included
    SQ40 (optional)
    4-way T joint for SQ40 Series, extrude tube 50x2mm, 2x FCQ5 included
    SQ40 (optional)
    5-way T joint for SQ40 Series, extrude tube 50x2mm, 2x FCQ5 included
    SQ40 (optional)
    4-way X joint for SQ40 Series, extrude tube 50x2mm, 2x FCQ5 included
    SQ40 (optional)
    6-way X joint for SQ40 Series, extrude tube 50x2mm, 2x FCQ5 included
    SQ40 (optional)
    SF40 (optional)
    SQ30 (optional)
    HQ40 (optional)
    HQ30 (optional)
    SF30 (optional)
    ST30 (optional)
    ST40 (optional)
    Universal aluminium floor plate for square section trusses, dim. (WxH) 800x800mm
    SQ40 (optional)
    SF40 (optional)
    SQ30 (optional)
    HQ30 (optional)
    HQ40 (optional)
    SF30 (optional)
    ST30 (optional)
    ST40 (optional)
    Universal aluminium floor plate for square section trusses, dim. (WxH) 500x500mm
    SQ40 (optional)
    SF40 (optional)
    SQ30 (optional)
    HQ30 (optional)
    HQ40 (optional)
    SF30 (optional)
    ST30 (optional)
    ST40 (optional)
    Universal circular floor plate for aluminium trusses, dimensions 650mm
    SQ40 (optional)
    HQ40 (optional)
    Aluminium ground base for square section trusses, SQ-HQ40,
    SQ40 (optional)
    Trolley for S-HQ-ST40
    SQ40 (optional)
    Trolley stack for S-HQ-ST40
    SQ40 (optional)
    Top for trolley for S-HQ-ST40
    SQ40 (optional)
    SQ30 (optional)
    SF22 (optional)
    Safety spring for Powertruss series Fast Connection kit SQ-T-F22 series
