SQ40C
Share me

Immagine Principale
  • SQ40C
  • SQ40C
  • SQ40C
    Code Orient. Vertex D.Ext (cm) D.Int. (cm) H (cm) D (cm) Weight (kg) Arc num Color Avail.
    SQ40C300 - - 300 220 40 40 11,50 4 AL
    SQ40C300B - - 300 220 40 40 11,5 4 BK
    SQ40C400 - - 400 320 40 40 15,90 4 AL
    SQ40C400B - - 400 320 40 40 15,90 4 BK
    SQ40C500 - - 500 420 40 40 20,20 8 AL
    SQ40C500B - - 500 420 40 40 20,20 8 BK
    SQ40C600 - - 600 520 40 40 24,60 8 AL
    SQ40C600B - - 600 520 40 40 24,60 8 BK
    SQ40C700 - - 700 620 40 40 29,00 8 AL
    SQ40C700B - - 700 620 40 40 29,00 8 BK
    SQ40C800 - - 800 720 40 40 33,40 8 AL
    SQ40C800B - - 800 720 40 40 33,40 8 BK

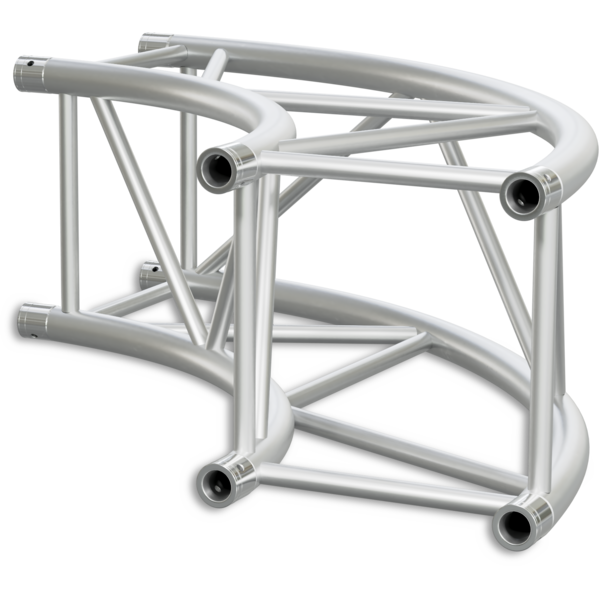

    Square section circular aluminium truss structure with 40cm sides

    Features:
    Lengthwise: extruded tubes, Ø 50x2 mm 6082 T6
    Diagonal: extruded tubes, Ø 25x2 mm 6082 T6
    Plate: conical quick-lock connectors
    x4 Fast connection kits FCQ5 included

    Product Code
    Accessory Code
    Description
    SQ40C (include)
    HQ40 (include)
    HQ30L3 (include)
    HQ30L2 (include)
    SQ40X6 (include)
    SQ40T5 (include)
    SQ40T4 (include)
    SQ40X4 (include)
    SQ40T3 (include)
    SQ40L3 (include)
    HQ30T3 (include)
    HQ30X4 (include)
    SQ30T4 (include)
    SQ30X4 (include)
    SQ30T3 (include)
    SQ30L3 (include)
    SQ30L2 (include)
    HQ30X6 (include)
    HQ30T5 (include)
    HQ30T4 (include)
    SQ40L2 (include)
    HQ40X6 (include)
    SQ40 (include)
    HQ30 (include)
    SQ30 (include)
    ST40 (include)
    SF40 (include)
    HQ40C (include)
    HQ30C (include)
    SQ30C (include)
    HQ40T5 (include)
    HQ40T4 (include)
    HQ40X4 (include)
    SQ30T5 (include)
    HQ40T3 (include)
    HQ40L3 (include)
    HQ40L2 (include)
    Quick connection, 4 spigots, 8 pins, 8 safety spring, SQ-HQ30/40
