ST22
Share me

Immagine Principale
  • ST22
  • ST22
  • ST22
  • ST22
  • ST22
    Code Tube (mm) Diagonal (mm) W (cm) H (cm) D (cm) Weight (kg) Volume (mc) Avail.
    ST22050 35x1,5 8 50 22 22 1.8 0,010
    ST22100 35x1,5 8 100 22 22 2,10 0,021
    ST22150 35x1,5 8 150 22 22 3 0,031
    ST22200 35x1,5 8 200 22 22 4,0 0,042
    ST22250 35x1,5 8 250 22 22 4.8 0,052
    ST22300 35x1,5 8 300 22 22 5,80 0,063
    ST22350 35x1,5 8 350 22 22 6,70 0,073
    ST22400 35x1,5 8 400 22 22 7,60 0,084

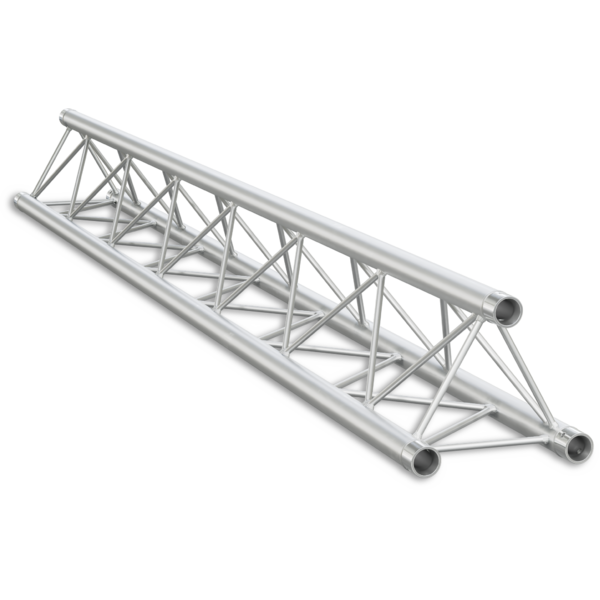

    triangle section aluminium truss with 22cm long sides

    Features:
    Lengthwise: extruded tubes, Ø 35x1,5 mm 6082 T6
    Diagonal: extruded tubes, Ø 8mm 6082 T6
    Plate: conical quick-lock connectors
    Fast connection kit FCT3 included

    Product Code
    Accessory Code
    Description
    ST22 (include)
    ST22C (include)
    ST22L2 (include)
    ST22L3 (include)
    ST22T3 (include)
    ST22X4 (include)
    ST22T4 (include)
    ST22T5 (include)
    ST22X5 (include)
    Quick connection, 3 spigots, 6 pins, 6 safety spring, ST22
    ST22 (optional)
    2-way corner for ST22 Series, extrude tube 35x2mm, FCT3 included, 45°, V.Up
    ST22 (optional)
    2-way corner for ST22 Series, extrude tube 35x2mm, FCT3 included, 60°, V.Up
    ST22 (optional)
    2-way corner for ST22 Series, extrude tube 35x2mm, FCT3 included, 90°, V.Up
    ST22 (optional)
    2-way corner for ST22 Series, extrude tube 35x2mm, FCT3 included, 90°, V.Ext
    ST22 (optional)
    2-way corner for ST22 Series, extrude tube 35x2mm, FCT3 included, 90°, V.Int
    ST22 (optional)
    2-way corner for ST22 Series, extrude tube 35x2mm, FCT3 included, 120°, V.Up
    ST22 (optional)
    2-way corner for ST22 Series, extrude tube 35x2mm, FCT3 included, 135°, V.Up
    ST22 (optional)
    3-way L corner for ST22 Series, tube 35x2mm, 2x FCT3 included, Left, V.Up
    ST22 (optional)
    3-way L corner for ST22 Series, tube 35x2mm, 2x FCT3 included, Left, V.Down
    ST22 (optional)
    3-way L corner for ST22 Series, tube 35x2mm, 2x FCT3 included, Right, V.Up
    ST22 (optional)
    3-way L corner for ST22 Series, tube 35x2mm, 2x FCT3 included, Right, V.Down
    ST22 (optional)
    3-way T joint for ST22 Series, tube 35x2mm, 2x FCT3 included, V.Up
    ST22 (optional)
    3-way T joint for ST22 Series, tube 35x2mm, 2x FCT3 included, V.Down
    ST22 (optional)
    3-way T joint for ST22 Series, tube 35x2mm, 2x FCT3 included, Left, V.Up
    ST22 (optional)
    3-way T joint for ST22 Series, tube 35x2mm, 2x FCT3 included, Left, V.Down
    ST22 (optional)
    3-way T joint for ST22 Series, tube 35x2mm, 2x FCT3 included, Left, V.Ext
    ST22 (optional)
    4-way X joint for ST22 Series, tube 35x2mm, 2x FCT3 included, V.Up
    ST22 (optional)
    4-way X joint for ST22 Series, tube 35x2mm, 2x FCT3 included, Left, V.Down
    ST22 (optional)
    4-way X joint for ST22 Series, tube 35x2mm, 2x FCT3 included, Right, V.Down
    ST22 (optional)
    4-way T joint for ST22 Series, extrude tube 35x2mm, 2x FCT3 included, V.Up
    ST22 (optional)
    4-way T joint for ST22 Series, extrude tube 35x2mm, 2x FCT3 included, V.Down
    ST22 (optional)
    5-way T joint for ST22 Series, extrude tube 35x2mm, 2x FCT3 included, V.Up
    ST22 (optional)
    Aluminium ground base for triangular section trusses, ST22
