ST22
ORDER CODE: ST22
Share me

Immagine Principale
  • ST22
  • ST22
  • ST22
  • ST22
  • Code Tube (mm) Diagonal (mm) W (cm) H (cm) D (cm) Weight (kg) Volume (mc) Avail.
    ST22050
    END OF LIFE
    35x1,5 8x4 50 22 22 1.8 0,010
    ST22100
    DISCONTINUED
    35x1,5 8x4 100 22 22 2,10 0,021
    ST22150
    DISCONTINUED
    35x1,5 8x4 150 22 22 3 0,031
    ST22200
    DISCONTINUED
    35x1,5 8x4 200 22 22 4,0 0,042
    ST22250
    DISCONTINUED
    35x1,5 8x4 250 22 22 4.8 0,052
    ST22300
    DISCONTINUED
    35x1,5 8x4 300 22 22 5,80 0,063
    ST22350
    END OF LIFE
    35x1,5 8x4 350 22 22 6,70 0,073
    ST22400
    DISCONTINUED
    35x1,5 8x4 400 22 22 7,60 0,084

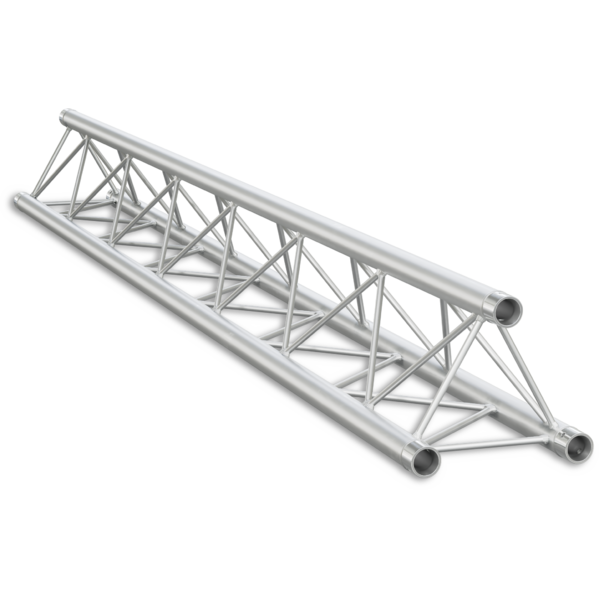

    Triangle section aluminium truss with 22 cm long sides.

    Features:
    Lengthwise: extruded tubes, Ø 35x1,5 mm EN AW 6060 T6.
    Diagonal: extruded tubes, Ø 8x4 mm EN AW 6060 T6.
    Plate: conical Quick-Lock connectors.
    Fast connection kit FCT3 included.

    Accessory Code
    Description
    include
    Quick connection, 3 spigots, 6 pins, 6 safety spring, ST22
    optional
    2-way corner for ST22 Series, extrude tube 35x2mm, FCT3 included, 45°, V.Up
    optional
    2-way corner for ST22 Series, extrude tube 35x2mm, FCT3 included, 60°, V.Up
    optional
    2-way corner for ST22 Series, extrude tube 35x2mm, FCT3 included, 90°, V.Up
    optional
    2-way corner for ST22 Series, extrude tube 35x2mm, FCT3 included, 90°, V.Ext
    optional
    2-way corner for ST22 Series, extrude tube 35x2mm, FCT3 included, 90°, V.Int
    optional
    2-way corner for ST22 Series, extrude tube 35x2mm, FCT3 included, 120°, V.Up
    optional
    2-way corner for ST22 Series, extrude tube 35x2mm, FCT3 included, 135°, V.Up
    optional
    3-way L corner for ST22 Series, tube 35x2mm, 2x FCT3 included, Left, V.Up
    optional
    3-way L corner for ST22 Series, tube 35x2mm, 2x FCT3 included, Left, V.Down
    optional
    3-way L corner for ST22 Series, tube 35x2mm, 2x FCT3 included, Right, V.Up
    optional
    3-way L corner for ST22 Series, tube 35x2mm, 2x FCT3 included, Right, V.Down
    optional
    3-way T joint for ST22 Series, tube 35x2mm, 2x FCT3 included, V.Up
    optional
    3-way T joint for ST22 Series, tube 35x2mm, 2x FCT3 included, V.Down
    optional
    3-way T joint for ST22 Series, tube 35x2mm, 2x FCT3 included, Left, V.Up
    optional
    3-way T joint for ST22 Series, tube 35x2mm, 2x FCT3 included, Left, V.Down
    optional
    3-way T joint for ST22 Series, tube 35x2mm, 2x FCT3 included, Left, V.Ext
    optional
    4-way X joint for ST22 Series, tube 35x2mm, 2x FCT3 included, V.Up
    optional
    4-way X joint for ST22 Series, tube 35x2mm, 2x FCT3 included, Left, V.Down
    optional
    4-way X joint for ST22 Series, tube 35x2mm, 2x FCT3 included, Right, V.Down
    optional
    4-way T joint for ST22 Series, extrude tube 35x2mm, 2x FCT3 included, V.Up
    optional
    4-way T joint for ST22 Series, extrude tube 35x2mm, 2x FCT3 included, V.Down
    optional
    5-way T joint for ST22 Series, extrude tube 35x2mm, 2x FCT3 included, V.Up
    optional
    Aluminium ground base for triangular section trusses, ST22
