    Code Tube (mm) Diagonal (mm) W (cm) H (cm) D (cm) Weight (kg) Volume (mc) Avail.
    ST22050 35x1,5 8x4 50 22 22 1.8 0,010
    ST22100 35x1,5 8x4 100 22 22 2,10 0,021
    ST22150 35x1,5 8x4 150 22 22 3 0,031
    ST22200 35x1,5 8x4 200 22 22 4,0 0,042
    ST22250 35x1,5 8x4 250 22 22 4.8 0,052
    ST22300 35x1,5 8x4 300 22 22 5,80 0,063
    ST22350 35x1,5 8x4 350 22 22 6,70 0,073
    ST22400 35x1,5 8x4 400 22 22 7,60 0,084

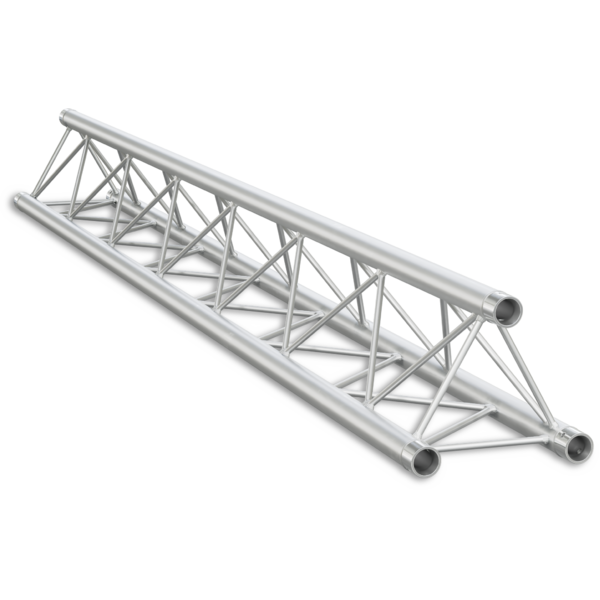

    Triangle section aluminium truss with 22 cm long sides.

    Features:
    Lengthwise: extruded tubes, Ø 35x1,5 mm EN AW 6060 T6.
    Diagonal: extruded tubes, Ø 8x4 mm EN AW 6060 T6.
    Plate: conical Quick-Lock connectors.
    Fast connection kit FCT3 included.

    ITEMS REF.
    Accessory Code
    Description
    ST22 (include)
    ST22C (include)
    ST22L2 (include)
    ST22L3 (include)
    ST22T3 (include)
    ST22X4 (include)
    ST22T4 (include)
    ST22T5 (include)
    ST22X5 (include)
    Quick connection, 3 spigots, 6 pins, 6 safety spring, ST22
    ST22 (optional)
    2-way corner for ST22 Series, extrude tube 35x2mm, FCT3 included, 45°, V.Up
    ST22 (optional)
    2-way corner for ST22 Series, extrude tube 35x2mm, FCT3 included, 60°, V.Up
    ST22 (optional)
    2-way corner for ST22 Series, extrude tube 35x2mm, FCT3 included, 90°, V.Up
    ST22 (optional)
    2-way corner for ST22 Series, extrude tube 35x2mm, FCT3 included, 90°, V.Ext
    ST22 (optional)
    2-way corner for ST22 Series, extrude tube 35x2mm, FCT3 included, 90°, V.Int
    ST22 (optional)
    2-way corner for ST22 Series, extrude tube 35x2mm, FCT3 included, 120°, V.Up
    ST22 (optional)
    2-way corner for ST22 Series, extrude tube 35x2mm, FCT3 included, 135°, V.Up
    ST22 (optional)
    3-way L corner for ST22 Series, tube 35x2mm, 2x FCT3 included, Left, V.Up
    ST22 (optional)
    3-way L corner for ST22 Series, tube 35x2mm, 2x FCT3 included, Left, V.Down
    ST22 (optional)
    3-way L corner for ST22 Series, tube 35x2mm, 2x FCT3 included, Right, V.Up
    ST22 (optional)
    3-way L corner for ST22 Series, tube 35x2mm, 2x FCT3 included, Right, V.Down
    ST22 (optional)
    3-way T joint for ST22 Series, tube 35x2mm, 2x FCT3 included, V.Up
    ST22 (optional)
    3-way T joint for ST22 Series, tube 35x2mm, 2x FCT3 included, V.Down
    ST22 (optional)
    3-way T joint for ST22 Series, tube 35x2mm, 2x FCT3 included, Left, V.Up
    ST22 (optional)
    3-way T joint for ST22 Series, tube 35x2mm, 2x FCT3 included, Left, V.Down
    ST22 (optional)
    3-way T joint for ST22 Series, tube 35x2mm, 2x FCT3 included, Left, V.Ext
    ST22 (optional)
    4-way X joint for ST22 Series, tube 35x2mm, 2x FCT3 included, V.Up
    ST22 (optional)
    4-way X joint for ST22 Series, tube 35x2mm, 2x FCT3 included, Left, V.Down
    ST22 (optional)
    4-way X joint for ST22 Series, tube 35x2mm, 2x FCT3 included, Right, V.Down
    ST22 (optional)
    4-way T joint for ST22 Series, extrude tube 35x2mm, 2x FCT3 included, V.Up
    ST22 (optional)
    4-way T joint for ST22 Series, extrude tube 35x2mm, 2x FCT3 included, V.Down
    ST22 (optional)
    5-way T joint for ST22 Series, extrude tube 35x2mm, 2x FCT3 included, V.Up
    ST22 (optional)
    Aluminium ground base for triangular section trusses, ST22
