ST30
Share me

Immagine Principale
  • ST30
  • ST30
  • ST30
  • ST30
  • ST30
  • ST30
    Code Tube (mm) Diagonal (mm) W (mm) H (mm) D (mm) Weight (kg) Volume (m³) Color Avail.
    ST30050 50x2 20x2 500 258 290 3,5 0,018 AL
    ST30100 50x2 20x2 1000 258 290 5,6 0,036 AL
    ST30100B 50x2 20x2 1000 258 290 5,7 0,036 BK
    ST30150 50x2 20x2 1500 258 290 8 0,055 AL
    ST30150B 50x2 20x2 1500 258 290 8 0,055 BK
    ST30200 50x2 20x2 2000 258 290 11,5 0,073 AL
    ST30200B 50x2 20x2 2000 258 290 11,5 0,073 BK
    ST30250 50x2 20x2 2500 258 290 12,6 0,091 AL
    ST30250B 50x2 20x2 2500 258 290 12,6 0,091 BK
    ST30300 50x2 20x2 3000 258 290 14,9 0,109 AL
    ST30300B 50x2 20x2 3000 258 290 14,9 0,109 BK
    ST30350 50x2 20x2 3500 258 290 17,2 0,127 AL
    ST30350B 50x2 20x2 3500 258 290 17,2 0,127 BK
    ST30400 50x2 20x2 4000 258 290 19,5 0,146 AL
    ST30400B 50x2 20x2 4000 258 290 19,5 0,146 BK
    ST30450 50x2 20x2 4500 258 290 21,8 0,164 AL
    ST30450B 50x2 20x2 4500 258 290 21,8 0,164 BK
    ST30500 50x2 20x2 5000 258 290 24,1 0,182 AL
    ST30500B 50x2 20x2 5000 258 290 24,1 0,182 BK
    ST30050B 50x2 20x2 50 25,8 29 3,4 0,018 BK

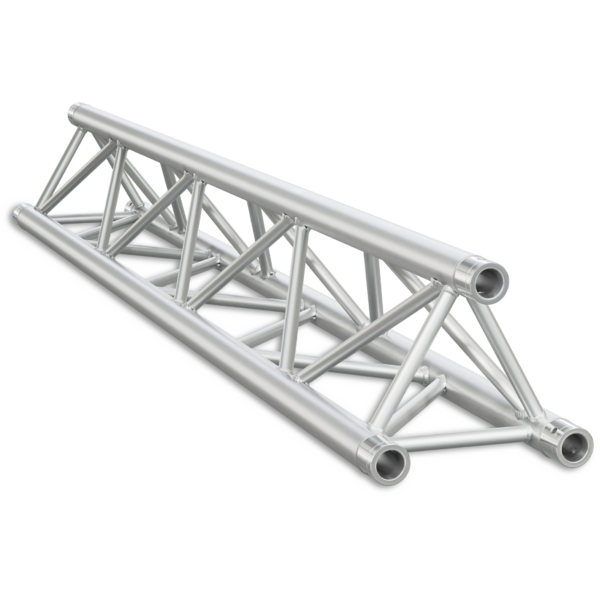

    Triangular section aluminium truss with 29 cm long sides

    Features:
    Lengthwise: extruded tubes, Ø 50x2 mm, EN AW 6082 T6.
    Diagonal: extruded tubes, Ø 20x2 mm, EN AW 6082 T6.
    Plate: conical quick-lock connectors.
    Fast connection kit FCT5 included.

    CODICE_PRODOTTO
    Accessory Code
    Description
    ST30 (optional)
    ALSQ30 (optional)
    SQ30 (optional)
    Flexible truss cover, for triangle/square section 29cm
    ST30 (include)
    ST30T3 (include)
    ST30X4 (include)
    ST30T4 (include)
    ST30T5 (include)
    ST30X5 (include)
    ST30X6 (include)
    ST22L2 (include)
    ST22L3 (include)
    ST22T3 (include)
    ST22X4 (include)
    ST22T4 (include)
    ST22T5 (include)
    ST30L3 (include)
    ST30L2 (include)
    ST22 (include)
    ST40C (include)
    ST30C (include)
    ST22C (include)
    ST40L2 (include)
    ST40L3 (include)
    ST40T3 (include)
    ST40X4 (include)
    ST40T4 (include)
    ST40T5 (include)
    ST40X5 (include)
    ST40X6 (include)
    ST22X5 (include)
    FCTFCT
    Quick connection, 3 spigots, 6 pins, 6 safety spring
    ST30 (optional)
    2-way corner for ST30 Series, extrude tube 50x2mm, FCT5 included, 45°, V.Up
    ST30 (optional)
    2-way corner for ST30 Series, extrude tube 50x2mm, FCT5 included, 60°, V.Up
    ST30 (optional)
    2-way corner for ST30 Series, extrude tube 50x2mm, FCT5 included, 90°, V.Up
    ST30 (optional)
    2-way corner for ST30 Series, extrude tube 50x2mm, FCT5 included, 90°, V.Ext
    ST30 (optional)
    2-way corner for ST30 Series, extrude tube 50x2mm, FCT5 included, 90°, V.Int
    ST30 (optional)
    2-way corner for ST30 Series, extrude tube 50x2mm, FCT5 included, 120°, V.Up
    ST30 (optional)
    2-way corner for ST30 Series, extrude tube 50x2mm, FCT5 included, 135°, V.Up
    ST30 (optional)
    3-way L corner for ST30 Series, tube 50x2mm, 2x FCT5 included, Left, V.Up
    ST30 (optional)
    3-way L corner for ST30 Series, tube 50x2mm, 2x FCT5 included, Left, V.Down
    ST30 (optional)
    3-way L corner for ST30 Series, tube 50x2mm, 2x FCT5 included, Right, V.Up
    ST30 (optional)
    3-way L corner for ST30 Series, tube 50x2mm, 2x FCT5 included, Right, V.Down
    ST30 (optional)
    3-way T joint for ST30 Series, tube 50x2mm, 2x FCT5 included, V.Down
    ST30 (optional)
    3-way T joint for ST30 Series, tube 50x2mm, 2x FCT5 included, Left, V.Down
    ST30 (optional)
    3-way T joint for ST30 Series, tube 50x2mm, 2x FCT5 included, Left, V.Ext
    ST30 (optional)
    3-way T joint for ST30 Series, tube 50x2mm, 2x FCT5 included, Left, V.Up
    ST30 (optional)
    4-way X joint for ST30 Series, tube 50x2mm, 2x FCT5 included, V.Up
    ST30 (optional)
    4-way X joint for ST30 Series, tube 50x2mm, 2x FCT5 included, Left, V.Down
    ST30 (optional)
    4-way X joint for ST30 Series, tube 50x2mm, 2x FCT5 included, Right, V.Down
    ST30 (optional)
    4-way T joint for ST30 Series, tube 50x2mm, 2x FCT5 included, V.Up
    ST30 (optional)
    4-way T joint for ST30 Series, tube 50x2mm, 2x FCT5 included, V.Down
    ST30 (optional)
    5-way T joint for ST30 Series, extrude tube 50x2mm, 2x FCT5 included, V.Up
    ST30 (optional)
    5-way X joint for ST30 Series, extrude tube 50x2mm, 2x FCT5 included, V.Up
    ST30 (optional)
    5-way X joint for ST30 Series, extrude tube 50x2mm, 2x FCT5 included, V.Down
    ST30 (optional)
    6-way X joint for ST30 Series, extrude tube 50x2mm, 2x FCT5 included, V.Down
    ST30 (optional)
    SF40 (optional)
    SQ30 (optional)
    HQ30 (optional)
    SQ40 (optional)
    HQ40 (optional)
    SF30 (optional)
    ST40 (optional)
    Universal aluminium floor plate for square section trusses, dim. (WxH) 500x500mm
    ST30 (optional)
    SF40 (optional)
    SQ30 (optional)
    HQ30 (optional)
    HQ40 (optional)
    SQ40 (optional)
    SF30 (optional)
    ST40 (optional)
    Universal circular floor plate for aluminium trusses, dimensions 650mm
    ST30 (optional)
    SF40 (optional)
    SQ30 (optional)
    SQ40 (optional)
    HQ40 (optional)
    HQ30 (optional)
    SF30 (optional)
    ST40 (optional)
    Universal aluminium floor plate for square section trusses, dim. (WxH) 800x800mm
    ST30 (optional)
    ST22 (optional)
    ST40 (optional)
    Aluminium ground base for triangular section trusses

    Firmware

    Accomplish more with our product updates
    Make sure you always get your product updated to the most recent software/hardware versions to obtain the best result out of your fixture and your show.
    Collecting feedbacks from users, we constantly add new capabilities, and improve customer experience and  technical endurance.
    Get in touch with our team for any questions or assistance.

    Drawings

    St30100_CAD_2D.dwgDownload
    St30400_CAD_2D.dwgDownload
    St30300_CAD_2D.dwgDownload
    St30150_CAD_2D.dwgDownload
    St30400_CAD_3D.dwgDownload
    St30300_CAD_3D.dwgDownload
    St30150_CAD_3D.dwgDownload
    St30100_CAD_3D.dwgDownload
    St30100_TECHNICAL_DRAWING.pdfDownload
    St30400_TECHNICAL_DRAWING.pdfDownload
    St30300_TECHNICAL_DRAWING.pdfDownload
    St30150_TECHNICAL_DRAWING.pdfDownload
