    Code Tube (mm) Diagonal (mm) W (mm) H (mm) D (mm) Weight (kg) Volume (m³) Color Avail.
    ST40050 50x2 25x2 500 353 400 3,2 0,035 AL
    ST40050B 50x2 25x2 500 353 400 3,2 0,035 BK
    ST40100 50x2 25x2 1000 353 400 4,9 0,069 AL
    ST40100B 50x2 25x2 1000 353 400 4,9 0,069 BK
    ST40150 50x2 25x2 1500 353 400 6,7 0,104 AL
    ST40150B 50x2 25x2 1500 353 400 6,7 0,104 BK
    ST40200 50x2 25x2 2000 353 400 8,5 0,139 AL
    ST40200B 50x2 25x2 2000 353 400 8,5 0,139 BK
    ST40250 50x2 25x2 2500 353 400 10,4 0,173 AL
    ST40250B 50x2 25x2 2500 353 400 10,4 0,173 BK
    ST40300 50x2 25x2 3000 353 400 12,2 0,208 AL
    ST40300B 50x2 25x2 3000 353 400 12,2 0,208 BK
    ST40350 50x2 25x2 3500 353 400 14 0,242 AL
    ST40350B 50x2 25x2 3500 353 400 14 0,242 BK
    ST40400 50x2 25x2 4000 353 400 15,8 0,277 AL
    ST40400B 50x2 25x2 4000 353 400 15,8 0,277 BK
    ST40450 50x2 25x2 4500 353 400 17,6 0,312 AL
    ST40450B 50x2 25x2 4500 353 400 17,6 0,312 BK
    ST40500 50x2 25x2 5000 353 400 19,4 0,346 AL
    ST40500B 50x2 25x2 5000 353 400 19,4 0,346 BK

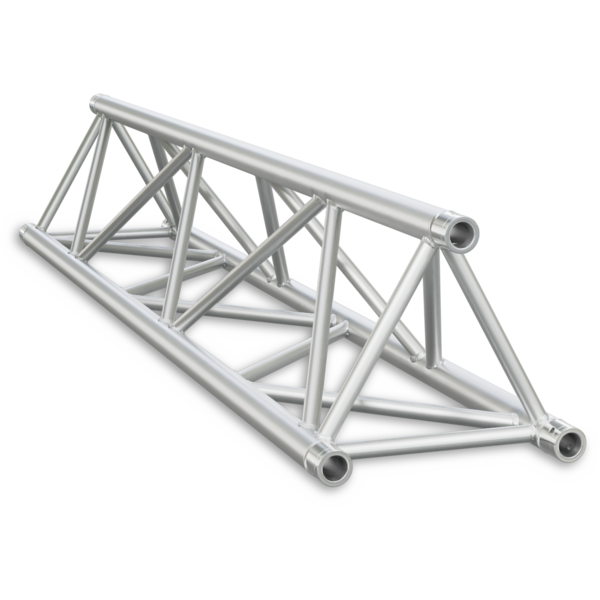

    Triangle section aluminium truss with 40 cm sides.

    Features:
    Lengthwise: extruded tubes, Ø 50x2 mm, EN AW 6082 T6.
    Diagonal: extruded tubes, Ø 25x2 mm, EN AW 6082 T6.
    Plate: conical quick-lock connectors.
    Fast connection kit FCT5 included.

    CODICE PRODOTTO
    Accessory Code
    Description
    ST40 (include)
    HQ40 (include)
    HQ30L3 (include)
    HQ30L2 (include)
    SQ40X6 (include)
    SQ40T5 (include)
    SQ40T4 (include)
    SQ40X4 (include)
    SQ40T3 (include)
    SQ40L3 (include)
    HQ30T3 (include)
    HQ30X4 (include)
    SQ30T4 (include)
    SQ30X4 (include)
    SQ30T3 (include)
    SQ30L3 (include)
    SQ30L2 (include)
    HQ30X6 (include)
    HQ30T5 (include)
    HQ30T4 (include)
    SQ40L2 (include)
    HQ40X6 (include)
    SQ40 (include)
    HQ30 (include)
    SQ30 (include)
    SF40 (include)
    HQ40C (include)
    SQ40C (include)
    HQ30C (include)
    SQ30C (include)
    HQ40T5 (include)
    HQ40T4 (include)
    HQ40X4 (include)
    SQ30T5 (include)
    HQ40T3 (include)
    HQ40L3 (include)
    HQ40L2 (include)
    Quick connection, 4 spigots, 8 pins, 8 safety spring, SQ-HQ30/40
    ST40 (optional)
    2-way corner for ST40 Series, extrude tube 50x2mm, FCT5 included, 45°, V.Up
    ST40 (optional)
    2-way corner for ST40 Series, extrude tube 50x2mm, FCT5 included, 60°, V.Up
    ST40 (optional)
    2-way corner for ST40 Series, extrude tube 50x2mm, FCT5 included, 90°, V.Up
    ST40 (optional)
    2-way corner for ST40 Series, extrude tube 50x2mm, FCT5 included, 90°, V.Int
    ST40 (optional)
    2-way corner for ST40 Series, extrude tube 50x2mm, FCT5 included, 90°, V.Ext
    ST40 (optional)
    2-way corner for ST40 Series, extrude tube 50x2mm, FCT5 included, 120°, V.Up
    ST40 (optional)
    2-way corner for ST40 Series, extrude tube 50x2mm, FCT5 included, 135°, V.Up
    ST40 (optional)
    3-way L corner for ST40 Series, tube 50x2mm, 2x FCT5 included, Right, V.Up
    ST40 (optional)
    3-way L corner for ST40 Series, tube 50x2mm, 2x FCT5 included, Right, V.Down
    ST40 (optional)
    3-way L corner for ST40 Series, tube 50x2mm, 2x FCT5 included, Left, V.Up
    ST40 (optional)
    3-way L corner for ST40 Series, tube 50x2mm, 2x FCT5 included, Left, V.Down
    ST40 (optional)
    3-way T joint for ST40 Series, tube 50x2mm, 2x FCT5 included, Left, V.Down
    ST40 (optional)
    3-way T joint for ST40 Series, tube 50x2mm, 2x FCT5 included, Left, V.Ext
    ST40 (optional)
    3-way T joint for ST40 Series, tube 50x2mm, 2x FCT5 included, Left, V.Up
    ST40 (optional)
    3-way T joint for ST40 Series, tube 50x2mm, 2x FCT5 included, V.Down
    ST40 (optional)
    4-way X joint for ST40 Series, tube 50x2mm, 2x FCT5 included, V.Up
    ST40 (optional)
    4-way X joint for ST40 Series, tube 50x2mm, 2x FCT5 included, Left
    ST40 (optional)
    4-way X joint for ST40 Series, tube 50x2mm, 2x FCT5 included, Right
    ST40 (optional)
    4-way T joint for ST40 Series, tube 50x2mm, 2x FCT5 included, V.Up
    ST40 (optional)
    4-way T joint for ST40 Series, tube 50x2mm, 2x FCT5 included, V.Down
    ST40 (optional)
    5-way T joint for ST40 Series, extrude tube 50x2mm, 2x FCT5 included
    ST40 (optional)
    5-way X joint for ST40 Series, extrude tube 50x2mm, 2x FCT5 included, V.Up
    ST40 (optional)
    5-way X joint for ST40 Series, extrude tube 50x2mm, 2x FCT5 included, V.Down
    ST40 (optional)
    6-way X joint for ST40 Series, extrude tube 50x2mm, 2x FCT5 included
    ST40 (optional)
    SF40 (optional)
    SQ30 (optional)
    HQ30 (optional)
    SQ40 (optional)
    HQ40 (optional)
    SF30 (optional)
    ST30 (optional)
    Universal aluminium floor plate for square section trusses, dim. (WxH) 500x500mm
    ST40 (optional)
    SF40 (optional)
    SQ30 (optional)
    HQ30 (optional)
    HQ40 (optional)
    SQ40 (optional)
    SF30 (optional)
    ST30 (optional)
    Universal circular floor plate for aluminium trusses, dimensions 650mm
    ST40 (optional)
    SF40 (optional)
    SQ30 (optional)
    SQ40 (optional)
    HQ40 (optional)
    HQ30 (optional)
    SF30 (optional)
    ST30 (optional)
    Universal aluminium floor plate for square section trusses, dim. (WxH) 800x800mm
    ST40 (optional)
    Aluminium ground base for triangular section trusses, ST4
