ST40
Share me

Immagine Principale
  • ST40
  • ST40
  • ST40
  • ST40
  • ST40
  • ST40
    Code Tube (mm) Diagonal (mm) W (cm) H (cm) D (cm) Weight (kg) Volume (mc) Color Avail.
    ST40050 50x3 25x3 50 40 40 3,20 0,035 AL
    ST40050B 50x3 25x3 50 40 40 3,20 0,035 BK
    ST40100 50x3 25x3 100 40 40 4,90 0,069 AL
    ST40100B 50x3 25x3 100 40 40 4,90 0,069 BK
    ST40150 50x3 25x3 150 40 40 6,70 0,104 AL
    ST40150B 50x3 25x3 150 40 40 6,70 0,104 BK
    ST40200 50x3 25x3 200 40 40 8,50 0,139 AL
    ST40200B 50x3 25x3 200 40 40 8,50 0,139 BK
    ST40250 50x3 25x3 250 40 40 10,40 0,173 AL
    ST40250B 50x3 25x3 250 40 40 10,40 0,173 BK
    ST40300 50x3 25x3 300 40 40 12,20 0,208 AL
    ST40300B 50x3 25x3 300 40 40 12,20 0,208 BK
    ST40350 50x3 25x3 350 40 40 14,0 0,242 AL
    ST40350B 50x3 25x3 350 40 40 14,0 0,242 BK
    ST40400 50x3 25x3 400 40 40 15,80 0,277 AL
    ST40400B 50x3 25x3 400 40 40 15,80 0,277 BK
    ST40450 50x3 25x3 450 40 40 17,60 0,312 AL
    ST40450B 50x3 25x3 450 40 40 17,60 0,312 BK
    ST40500 50x3 25x3 500 40 40 19,40 0,346 AL
    ST40500B 50x3 25x3 500 40 40 19,40 0,346 BK

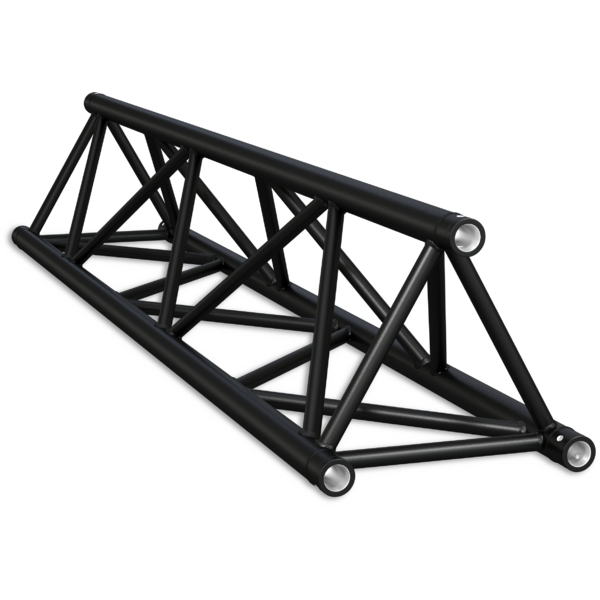

    Triangle section aluminium truss with 40cm sides

    Features:
    Lengthwise: extruded tubes, Ø 50x3 mm 6082 T6
    Diagonal: extruded tubes, Ø 25x3 mm 6082 T6
    Plate: conical quick-lock connectors
    Fast connection kit FCT5 included

    Product Code
    Accessory Code
    Description
    ST40 (include)
    HQ40 (include)
    HQ30L3 (include)
    HQ30L2 (include)
    SQ40X6 (include)
    SQ40T5 (include)
    SQ40T4 (include)
    SQ40X4 (include)
    SQ40T3 (include)
    SQ40L3 (include)
    HQ30T3 (include)
    HQ30X4 (include)
    SQ30T4 (include)
    SQ30X4 (include)
    SQ30T3 (include)
    SQ30L3 (include)
    SQ30L2 (include)
    HQ30X6 (include)
    HQ30T5 (include)
    HQ30T4 (include)
    SQ40L2 (include)
    HQ40X6 (include)
    SQ40 (include)
    HQ30 (include)
    SQ30 (include)
    SF40 (include)
    HQ40C (include)
    SQ40C (include)
    HQ30C (include)
    SQ30C (include)
    HQ40T5 (include)
    HQ40T4 (include)
    HQ40X4 (include)
    SQ30T5 (include)
    HQ40T3 (include)
    HQ40L3 (include)
    HQ40L2 (include)
    Quick connection, 4 spigots, 8 pins, 8 safety spring, SQ-HQ30/40
    ST40 (optional)
    2-way corner for ST40 Series, extrude tube 50x2mm, FCT5 included, 45°, V.Up
    ST40 (optional)
    2-way corner for ST40 Series, extrude tube 50x2mm, FCT5 included, 60°, V.Up
    ST40 (optional)
    2-way corner for ST40 Series, extrude tube 50x2mm, FCT5 included, 90°, V.Up
    ST40 (optional)
    2-way corner for ST40 Series, extrude tube 50x2mm, FCT5 included, 90°, V.Int
    ST40 (optional)
    2-way corner for ST40 Series, extrude tube 50x2mm, FCT5 included, 90°, V.Ext
    ST40 (optional)
    2-way corner for ST40 Series, extrude tube 50x2mm, FCT5 included, 120°, V.Up
    ST40 (optional)
    2-way corner for ST40 Series, extrude tube 50x2mm, FCT5 included, 135°, V.Up
    ST40 (optional)
    3-way L corner for ST40 Series, tube 50x2mm, 2x FCT5 included, Right, V.Up
    ST40 (optional)
    3-way L corner for ST40 Series, tube 50x2mm, 2x FCT5 included, Right, V.Down
    ST40 (optional)
    3-way L corner for ST40 Series, tube 50x2mm, 2x FCT5 included, Left, V.Up
    ST40 (optional)
    3-way L corner for ST40 Series, tube 50x2mm, 2x FCT5 included, Left, V.Down
    ST40 (optional)
    3-way T joint for ST40 Series, tube 50x2mm, 2x FCT5 included, Left, V.Down
    ST40 (optional)
    3-way T joint for ST40 Series, tube 50x2mm, 2x FCT5 included, Left, V.Ext
    ST40 (optional)
    3-way T joint for ST40 Series, tube 50x2mm, 2x FCT5 included, Left, V.Up
    ST40 (optional)
    3-way T joint for ST40 Series, tube 50x2mm, 2x FCT5 included, V.Down
    ST40 (optional)
    4-way X joint for ST40 Series, tube 50x2mm, 2x FCT5 included, V.Up
    ST40 (optional)
    4-way X joint for ST40 Series, tube 50x2mm, 2x FCT5 included, Left
    ST40 (optional)
    4-way X joint for ST40 Series, tube 50x2mm, 2x FCT5 included, Right
    ST40 (optional)
    4-way T joint for ST40 Series, tube 50x2mm, 2x FCT5 included, V.Up
    ST40 (optional)
    4-way T joint for ST40 Series, tube 50x2mm, 2x FCT5 included, V.Down
    ST40 (optional)
    5-way T joint for ST40 Series, extrude tube 50x2mm, 2x FCT5 included
    ST40 (optional)
    5-way X joint for ST40 Series, extrude tube 50x2mm, 2x FCT5 included, V.Up
    ST40 (optional)
    5-way X joint for ST40 Series, extrude tube 50x2mm, 2x FCT5 included, V.Down
    ST40 (optional)
    6-way X joint for ST40 Series, extrude tube 50x2mm, 2x FCT5 included
    ST40 (optional)
    SF40 (optional)
    SQ30 (optional)
    HQ30 (optional)
    SQ40 (optional)
    HQ40 (optional)
    SF30 (optional)
    ST30 (optional)
    Universal aluminium floor plate for square section trusses, dim. (WxH) 500x500mm
    ST40 (optional)
    SF40 (optional)
    SQ30 (optional)
    HQ30 (optional)
    HQ40 (optional)
    SQ40 (optional)
    SF30 (optional)
    ST30 (optional)
    Universal circular floor plate for aluminium trusses, dimensions 650mm
    ST40 (optional)
    SF40 (optional)
    SQ30 (optional)
    SQ40 (optional)
    HQ40 (optional)
    HQ30 (optional)
    SF30 (optional)
    ST30 (optional)
    Universal aluminium floor plate for square section trusses, dim. (WxH) 800x800mm
    ST40 (optional)
    Aluminium ground base for triangular section trusses, ST4
