ST40C
Share me

Immagine Principale
  • ST40C
  • ST40C
  • ST40C
  • ST40C
  • ST40C
  • ST40C
  • ST40C
  • ST40C
    Code Orient. Vertex D.Ext (mm) D.Int. (mm) H (mm) D (mm) Weight (kg) Arc num Color Avail.
    ST40C300U - up 3000 2200 353 400 11,50 4 AL
    ST40C300UB - up 2200 2200 353 400 11,50 4 BK
    ST40C300E - external 3000 2200 400 353 11,50 4 AL
    ST40C300EB - external 3000 2200 400 353 11,50 4 BK
    ST40C300I - internal 3000 2200 400 353 11,50 4 AL
    ST40C300IB - internal 3000 2200 400 353 11,50 4 BK
    ST40C400U - up 4000 3200 353 400 15,90 4 AL
    ST40C400UB - up 3200 3200 353 400 15,90 4 BK
    ST40C400E - external 4000 3200 400 353 15,90 4 AL
    ST40C400EB - external 4000 3200 400 353 15,90 4 BK
    ST40C400I - internal 4000 3200 400 353 15,90 4 AL
    ST40C400IB - internal 4000 3200 400 353 15,90 4 BK
    ST40C500U - up 5000 4200 353 400 20,20 8 AL
    ST40C500UB - up 5000 4200 353 400 20,20 8 BK
    ST40C500E - external 5000 4200 400 353 20,20 8 AL
    ST40C500EB - external 5000 4200 400 353 20,20 8 BK
    ST40C500I - internal 5000 4200 400 353 20,20 8 AL
    ST40C500IB - internal 5000 4200 400 353 20,20 8 BK
    ST40C600U - up 6000 5200 353 400 24,60 8 AL
    ST40C600UB - up 6000 5200 353 400 24,60 8 BK
    ST40C600E - external 6000 5200 400 353 24,60 8 AL
    ST40C600EB - external 6000 5200 400 353 24,60 8 BK
    ST40C600I - internal 6000 5200 400 353 24,60 8 AL
    ST40C600IB - internal 6000 5200 400 353 24,60 8 BK

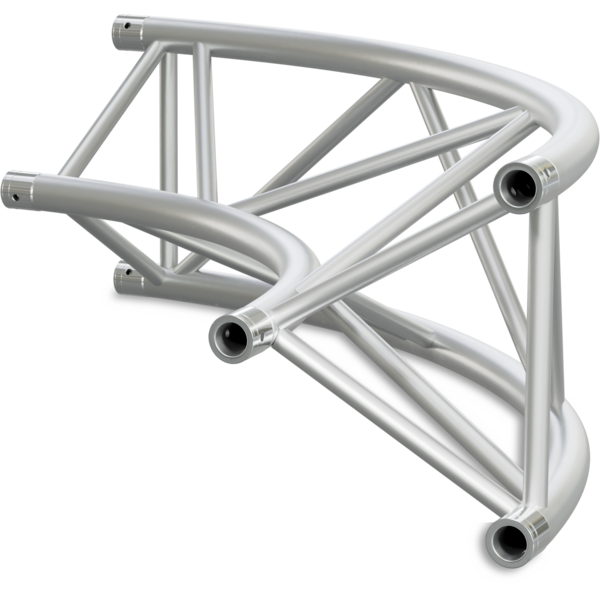

    Triangle section circular aluminium truss structure with 40 cm sides.

    Features:
    Lengthwise: extruded tubes, Ø 50x2 mm, EN AW 6082 T6.
    Diagonal: extruded tubes, Ø 25x2 mm, EN AW 6082 T6.
    Plate: conical quick-lock connectors.
    x4 Fast connection kits FCT5 included.

    CODICE_PRODOTTO
    Accessory Code
    Description
    ST40C (include)
    ST30X5 (include)
    ST30T5 (include)
    ST30T4 (include)
    ST30X4 (include)
    ST30T3 (include)
    ST30L3 (include)
    ST30L2 (include)
    ST40X6 (include)
    ST40X5 (include)
    ST40T5 (include)
    ST40T4 (include)
    ST40X4 (include)
    ST40T3 (include)
    ST40L3 (include)
    ST40L2 (include)
    ST30C (include)
    ST30X6 (include)
    Quick connection, 3 spigots, 6 pins, 6 safety spring, ST30/40
