SU22
ORDER CODE: SU22
Share me

Immagine Principale
  • SU22
  • Code Tube (mm) W (mm) H (mm) D (mm) Weight (kg) Volume (m³) Avail.
    SU22050 35x2 500 35 35 0,35 0,000
    SU22100 35x2 1000 35 35 0,49 0,001
    SU22150 35x2 1500 35 35 0,7 0,001
    SU22200 35x2 2000 35 35 0,91 0,002
    SU22250 35x2 2500 35 35 1,21 0,002
    SU22300 35x2 3000 35 35 1,34 0,003

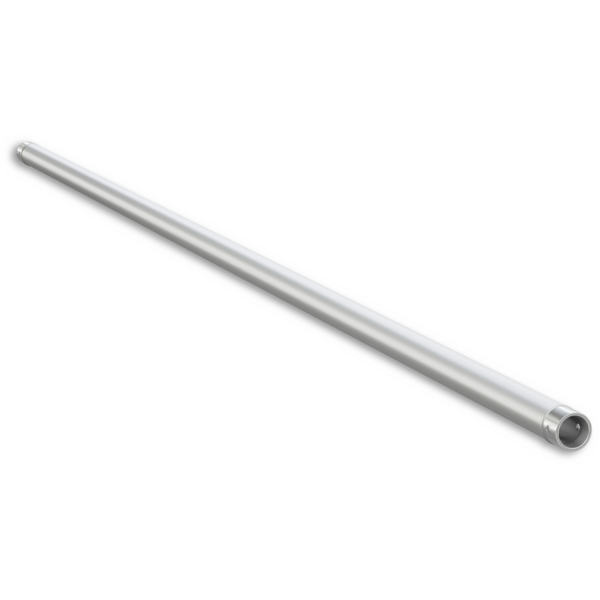

    Aluminium extruded tubes, Ø 35X2 mm, EN AW 6060 T6.

    Features:
    Plate: conical quick-lock connectors.
    Fast connection kit FCU3 included.

    ITEMS REF.
    Accessory Code
    Description
    SU22 (include)
    SU22L2 (include)
    SU22T3 (include)
    Quick connection, 1 spigot, 2 pins, 2 safety spring, SU22
    SU22 (optional)
    2-way corner for SU22, extrude tube 35x2mm, FCU3 included, 45°
    SU22 (optional)
    2-way corner for SU22, extrude tube 35x2mm, FCU3 included, 60°
    SU22 (optional)
    2-way corner for SU22, extrude tube 35x2mm, FCU3 included, 90°
    SU22 (optional)
    2-way corner for SU22, extrude tube 35x2mm, FCU3 included, 120°
    SU22 (optional)
    2-way corner for SU22, extrude tube 35x2mm, FCU3 included, 135°
    SU22 (optional)
    3-way joint for SU22 Series, extrude tube 35x2mm, x2 FCU3 included
