  • SWIXMG51
  • SWIXMG51

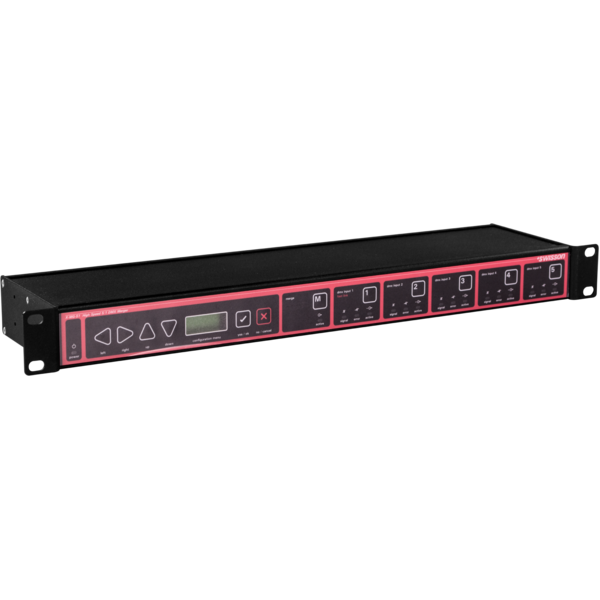

  • The XMG-51 DMX Merger combines up to five DMX lines together into one. This allows multiple DMX lighting control systems are used simultaneously on a single light installation. The DMX data is merged together according to the complex combination that you can configure. The operating modes and rules can be combined. This allows for a variety of possibilities of operation: multiple lighting controllers can share one of the 512 DMX channels. For example, controller A controls the channels 1-48, controller B controls the channel 50-74 and the channels 200-400 are controlled by controller C. Several light controllers can operate on the same channels. For example, a single Lamp can be controlled by all controllers at the same time. Which controller has priority is configurable (HTTP, LTP). A mobile lighting controller could be plugged in different places of the venue. The merger recognizes where the controller is plugged in and switches automatically the corresponding port to the output.
    A backup lighting controller can be used at the same time as the main lighting controller by using the XMG-51Merger. The merger will automatically switch to the backup controller in the case of a failure of the main controller. It can also be switched manually at any time. The XMG-51 has a built-in bypass relay which connects the output with a dedicated input in event of a power supply failure.



    Features:
    5 DMX512 inputs
    1 DMX512 output
    Only 50us latency
    Bypass relay
    Manual switch
    HTTP, LTP channel, LTP line modes
    Channel offset for each input
