SWIXPD28
Share me

Immagine Principale
  • SWIXPD28
  • SWIXPD28
  • SWIXPD28
  • SWIXPD28
    Code Model Input (pin) Output (pin) Conn. Avail.
    SWIXPD285R rack 2x 5p 8x 5p XLR
    SWIXPD283R rack 2x 3p 8x 3p XLR
    SWIXPD288R rack 2x RJ45 8x RJ45 RJ45
    SWIXPD285R8 rack 2x 5p 8x 3p XLR
    SWIXPD285R2 rack 2x 5p 6x 5p + 2x 3 XLR
    SWIXPD285R4 rack 2x 5p 4x 5p + 4x 3 XLR
    SWIXPD285R6 rack 2x 5p 2x 5p + 6x 3 XLR

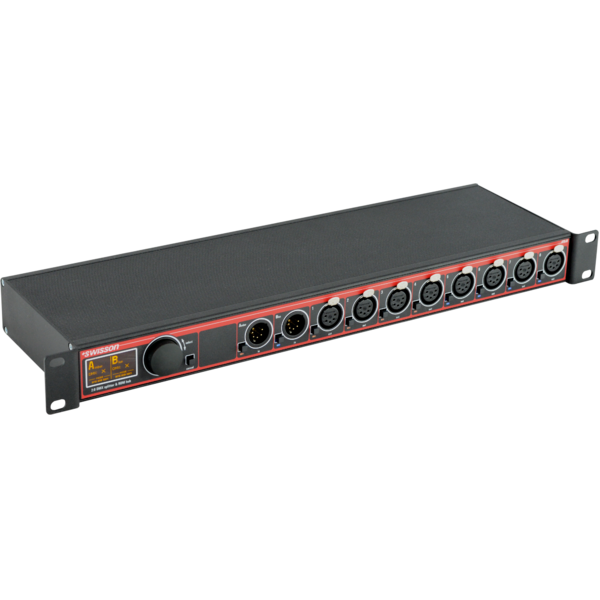

    The Swisson XPD-28 series are reliable DMX and RDM splitters that process DMX and RDM signals with a high level of reliability for professional applications. The XPD-28 has a specially designed power supply which ensures safe operation even under harsh mains conditions. All ports are individually optically isolated and well protected against transient overvoltages.

    Different configurations available
    Configuration with 5-pin XLR
    Configuration with 3-pin XLR
    Configuration with 8-pin RJ45 (EtherCON)
    Mixed configurations with 5-pin and 3-pin

    Features:
    2 Inputs with 8 selectable outputs
    OLED display
    Metal button/potentiometer
    Amplifies/boosts DMX
    Splits and cleans DMX signal
    RDM protocol
    Synchronized DMX forwarding
    Enhanced DMX data regeneration
    Individual optical isolation on all ports
    Real-time DMX monitoring
    DMX framerate display
    DMX channel overview
    Signal activity and error LED
    Power supply: 100-240V 50/60Hz
    Connections: powerCON IN/OUT (max 20A)
    Weight: 1,6 kg
    Dimensions (WxHxD): 19"x 1unit x 138 mm

    For the product no accessories are related, for more information please consult the catalogue or the relevant user manual

    Firmware

    Accomplish more with our product updates
    Make sure you always get your product updated to the most recent software/hardware versions to obtain the best result out of your fixture and your show.
    Collecting feedbacks from users, we constantly add new capabilities, and improve customer experience and  technical endurance.
    Get in touch with our team for any questions or assistance.

    Drawings

    Catalogues

    #0Not available

    Fixture Libraries / DMX Charts

    Photometrics

    Software Upgrades

    Docs

    ManualDownload
