SWIXSH
Share me

Immagine Principale
  • SWIXSH
  • SWIXSH
    Code Model In (pin) Powercon Out (pin) Powercon Protocol Avail.
    SWIXSH3BD1P4 box 3p IN 4x 3p OUT (x4) DMX
    SWIXSH5BD1P4 box 5p IN 4x 5p OUT (x4) DMX
    SWIXSH3BR1P4 box 3p IN 4x 3p OUT (x4) RDM
    SWIXSH5BR1P4 box 5p IN 4x 5p OUT (x4) RDM
    SWIXSH3RD1P4 rack 3p IN 4x 3p OUT (x4) DMX
    SWIXSH3RR1P4 rack 3p IN 4x 3p OUT (x4) RDM
    SWIXSH5RR1P4 rack 5p IN 4x 5p OUT (x4) RDM

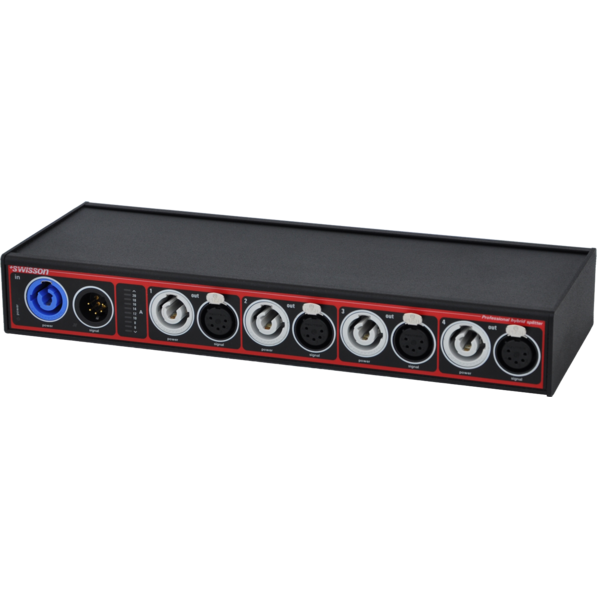

    The XSH hybrid splitter allows for distributing power and a DMX signal within one single unit. The XSH features a powerCon 20A input and an XLR input and four pairs of powerCon 20A and XLR outputs. This combination comes especially handy with modern DMX setups, where so-called 'hybrid cables' with XLR and powerCon connectors are frequently used. The XSH comes with a built-in amp meter which makes it a breeze to keep track of the amount of power that is consumed, allowing its user to take action before the cables are operated at their limits. With the RDM option, it is also possible to remotely monitor the current draw.

    Features:
    DMX input with built-in termination
    4 optically isolated DMX outputs
    1 powerCon 20A input
    4 powerCon 20A outputs
    Neutrik XLR and powerCon connectors
    With 5-pin XLR or 3-pin XLR connectors available
    Amp meter (0 - 20A)
    High level of reliability
    Boosts and regenerates DMX
    Reduces reflection problems
    RDM (optional)
    19"-rack mounting kit (optional)
