    Code Tabled Extensions Recharger IRC Avail.
    TABLED-C x1 NO 1x1 NO
    TABLED-CPACK x4 x2 1x4 x1
    TABLED-CPACKWH x4 x2 1x4 x1

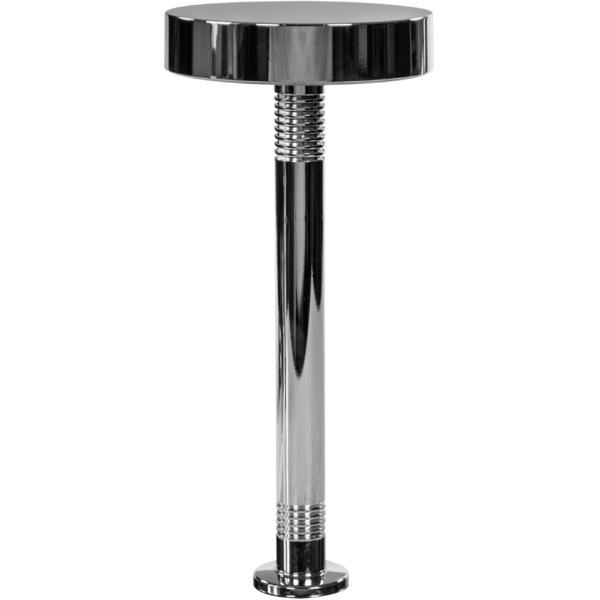

    TABLED is an ingenious product which offers beautiful table lighting for events whilst keeping the atmosphere of the room. Based on a stunning aesthetic design, it is not only a stylish centerpiece but fast to deploy and easy to use. With local control and wireless DMX, it can either act as a standalone table light or be part of a spectacular event lighting package.

    Features:
    Battery powered and wireless DMX control for fast deployment and accurate control
    RGBW LED source with 360° coverage for standard catering round tables of 1,8 m
    Available in a TABLEDPACK featuring 4 lights with accessories in an ABS case

    LIGHT SOURCE
    • Source:
      6x3 W + 6x1
      W
      RGB + Neutral White
    • CT:
      NW 4.000
      K
    • CRI:
      80
    • Source life expectancy:
      > 50.000 h
    OPTICS
    • Beam angle:
      360
      °
      designed to light up standard 160/180 cm ceremony tables
    DYNAMIC EFFECTS
    • Static colour mode:
      selection of static colour
    • Manual colour mode:
      manual adjustment of colour
    BODY
    • Hardware on-board:
      magnetic base
    • Body:
      sturdy die-cast aluminium body conceived for long-time durability
    • Body colour:
      mirror and white finishing
    CONTROL
    • Protocols:
      W-DMX
    • DMX channels:
      4 / 7 / 10
      channel
    • W-DMX:
      included, wireless solution receiver
    • Display:
      black OLED high resolution display
    • Firmware upgrade:
      yes, via USB - DMX interface (UPBOX1) not included
    • IR:
      infrared sensor controlled by remote
    ELECTRONICS
    • Dimmer:
      linear 0 ~ 100% electronic dimmer
    • Dimmer curves:
      4
      different dimming curves available
    • Strobe / shutter:
      1 - 30
      Hz, electronic
    • Operating temperature:
      -10° ~ +45°
    ELECTRICAL
    • Power supply:
      DC 24 V - 1 A
    • Power consumption (at 230 V):
      8,8
      W
    BATTERY
    • Battery:
      2,20 Ah - 14,8
      V
      lithium
    • Estimated battery life in colour change mode up to:
      14,5
      h
    • Estimated battery life in single colour mode up to:
      R: 19h - G: 17,5h - B: 17,5h - W: 17,5
      h
    • Estimated battery life in full-mode up to:
      9
      h
    • Re-charge connection:
      power cable fast-charge in pelican case
    • Re-charge time:
      4
      h/max
    • Battery status:
      shown on display
    PHYSICAL
    • Sospension and fixing:
      magnetic base to attach on every metal surface
    • Data connection:
      W-DMX receiver
    • IP rating:
      30
    • Dimensions (WxHxD):
      140x307x220
      mm
    • Weight:
      1,18
      kg
