Tabled C
ORDER CODE: TABLEDC
Share me

Immagine Principale
  • TABLEDC
  • TABLEDC
  • TABLEDC
  • TABLEDC
  • TABLEDC
  • TABLEDC
  • TABLEDC
  • TABLEDC
  • TABLEDC
  • TABLEDC
    • Tabled C
    Code Tabled Extensions Bases Recharger IRC Certifications Avail.
    TABLED-C x1 No x1 TABLEDDSK22W 1x1 No CE, cTUVus, UKCA
    TABLED-CPACK x4 x2 TABLEDEXT-027 x4 TABLEDDSK22W 1x4 x1 CE, UKCA
    TABLED-CPACKWH x4 x2 TABLEDEXT-027WH x4 TABLEDDSK22W 1x4 x1 CE, UKCA

    Tabled C is an ingenious product which offers beautiful table lighting for events whilst keeping the atmosphere of the room. Based on a stunning aesthetic design, it is not only a stylish centerpiece but fast to deploy and easy to use. With local control and wireless DMX, it can either act as a standalone table light or be part of a spectacular event lighting package.

    Features:
    Battery powered and wireless DMX control for fast deployment and accurate control
    RGBW LED source with 360° coverage for standard catering round tables of 1,8 m
    Available in a TABLEDPACK featuring 4 lights with accessories in an ABS case

    LIGHT SOURCE
    • Source:
      6x3 W + 6x1
      W
      RGB + Neutral White
    • CCT:
      NW 4.000
    • CRI:
      80
    • Source life expectancy:
      > 50.000 h
    OPTICS
    • Beam angle:
      360
      °
      designed to light up standard 160/180 cm ceremony tables
    DYNAMIC EFFECTS
    • Static mode:
      selection of static colour
    • Manual mode:
      manual adjustment of colour
    BODY
    • Hardware on-board:
      magnetic base
    • Body:
      sturdy die-cast aluminium body
    • Body colour:
      mirror and white finishing
    • Other:
      1 x TABLEDDSK22W and 1x1 recharger included inside single unit box
    CONTROL
    • Protocols:
      W-DMX
    • DMX channels:
      4 / 7 / 10 / 12
      channel
    • Wireless Control:
      included, wireless solution receiver
    • Display:
      Graphic User Interface
    • Firmware upgrade:
      yes, via USB - DMX interface (UPBOX1) not included
    • IR:
      infrared sensor controlled by remote (included in the pack, not included in single unit)
    ELECTRONICS
    • Dimmer:
      linear 0 ~ 100% electronic dimmer
    • Dimmer curves:
      4
      selectable dimming modes available
    • Strobe / shutter:
      1 - 30
      Hz, electronic
    • Operating temperature:
      0° ~ +45°
    ELECTRICAL
    • Mains power supply:
      DC 24 V - 1 A
    • Max power consumption:
      8,8
      W
    BATTERY
    • Battery:
      2,20 Ah - 14,8
      V
      lithium
    • Estimated battery life in colour change mode up to:
      14,5
      h
    • Estimated battery life in single colour mode up to:
      R: 19 h - G: 17,5 h - B: 17,5 h - W: 17,5
      h
    • Estimated battery life in full-mode up to:
      9
      h
    • Re-charge connection:

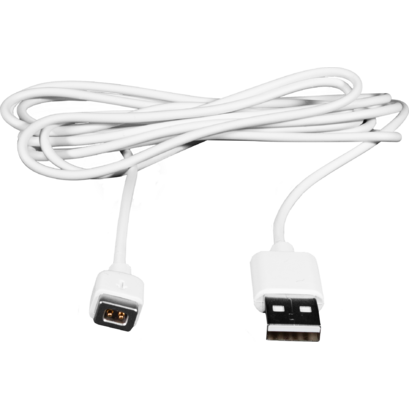

      power cable fast-charge in pelican case
    • Re-charge time:
      4
      h/max
    • Battery status:
      shown on display
    PHYSICAL
    • IP rating:
      30
    • Suspension and fixing:
      magnetic base to attach on every metal surface
    • Data connection:
      W-DMX receiver
    • Dimensions (WxHxD):
      140x307x220
      mm
    • Weight:
      1,18
      kg
    CERTIFICATIONS / APPROVALS
    • Certifications / Approvals:
      CE, UKCA, RCM
    ITEMS REF.
    Accessory Code
    Description
    TABLEDC (optional)
    {ProdottiDaAccessorio}
    LRLUNALRLUNA
    Single Universe DMX transceiver with Bluetooth
    TABLEDC (optional)
    {ProdottiDaAccessorio}
    RSR0630BRSR0630B
    Steel security cable for hanging bodies, inox steel shackle, L=60 cm, black
    TABLEDC (optional)
    {ProdottiDaAccessorio}
    C6002BC6002B
    Slim aluminum clamp, 200kg loading, 48-51mm tubes, M10 bolt, Black
    TABLEDC (optional)
    {ProdottiDaAccessorio}
    FCLTABLEDFCLTABLED
    RoadCase with internal compartments designed to contain 16 pcs of TABLED.
    TABLEDC (optional)
    {ProdottiDaAccessorio}
    PRL-IRCPRL-IRC

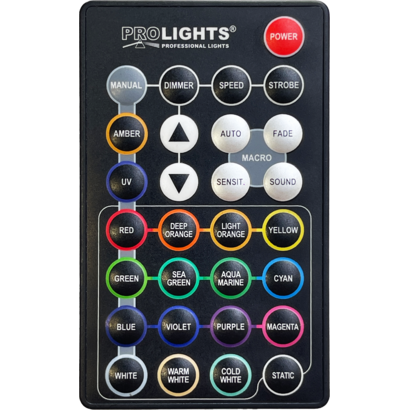

    RGBWA IR controller, 29 buttons, manual/static colours, auto programs, fade
    TABLEDC (include)
    {ProdottiDaAccessorio}
    TABLEDDSK22WTABLEDDSK22W

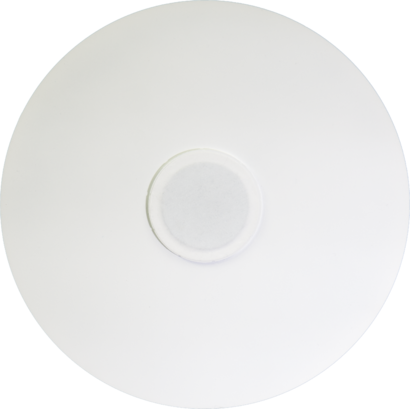

    White disk for TABLED, D 220 mm
    TABLEDC (optional)
    {ProdottiDaAccessorio}
    TABLEDDSK22MTTABLEDDSK22MT
    Transparent disk with magnet for TABLED, D 220 mm
    TABLEDC (optional)
    {ProdottiDaAccessorio}
    TABLEDDSK28MWTABLEDDSK28MW

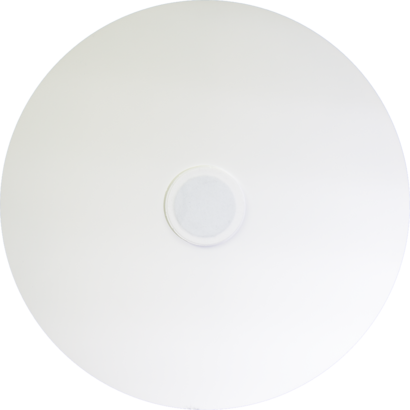

    White disk with magnet for TABLED, D 280 mm
    TABLEDC (optional)
    {ProdottiDaAccessorio}
    TABLEDDSK40MWTABLEDDSK40MW
    White disk with magnet for TABLED, D 400 mm
    TABLEDC (optional)
    {ProdottiDaAccessorio}
    TABLEDEXTTABLEDEXT

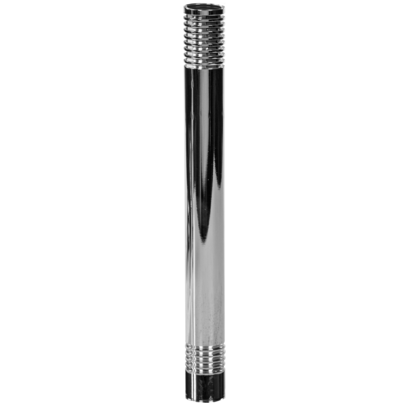

    Extension tube for Tabled
    TABLEDC (optional)
    {ProdottiDaAccessorio}
    TABUPBOXITABUPBOXI
    Interface used between UPBOX1U and TABLED for make firmware upgrade
    TABLEDC (optional)
    {ProdottiDaAccessorio}
    WDBBOXWDBBOX
    WDMX battery transmitter, mini 5p DMX and WIFI IN, 2.4 GHz, 0.4 kg
    TABLEDC (optional)
    {ProdottiDaAccessorio}
    UPBOX1UP5UPBOX1UP5
    Firmware uploader kit, USB IN, 5pin XLR DMX OUT, USB OUT

    Data sheet & specs

    File name File size Download
    Letter datasheet Tabledc_A4_DATASHEET_(EN).pdf 257KB
    Letter datasheet Tabledc_A4_DATASHEET_(IT).pdf 256KB
    Letter datasheet Tabled-cpack_A4_DATASHEET_(IT).pdf 256KB
    Letter datasheet Tabled-cpack_A4_DATASHEET_(EN).pdf 257KB

    User manual

    File name File size Download
    User manual Tabled-c_USER_MANUAL_ITEN.pdf 1MB
    User manual GENERAL_BATTERY_SAFETY_INFO.pdf 3MB
    User manual GENERAL_BATTERY_SAFETY_INFO.pdf 3MB
    User manual Tabledc_GENERAL_SAFETY_INFO_SCEG.pdf 9MB
    User manual Tabledc_USER_MANUAL_ITEN.pdf 1MB
    User manual Tabled-cpack_GENERAL_SAFETY_INFO_SCEG.pdf 9MB
    User manual Tabledc_Wireless_Protocol_Compatibilit_EN.pdf 4MB
    User manual Tabled-cwh_Wireless_Protocol_Compatibilit_EN.pdf 4MB

    DMX chart & personalities

    File name File size Download
    DMX chart Tabled-c_DMX_CHARTS.pdf 46KB
    VectorWorks PROLIGHTS_VECTORWORKS_v23_LIBRARY.vwx 304MB
    VectorWorks VECTORWORKS_SYMBOLS.vwx 181KB
    VectorWorks PROLIGHTS_VECTORWORKS_v18_LIBRARY.vwx 444MB
    TABLEDC Firmware rev. 1.2
    manufacturer fixture library (Link) Link
    prolights_tabled-c.d4Download
    manufacturer fixture library (Link) Link
    prolights_tabled_basic.hedDownload
    prolights_tabled_ext.hedDownload
    prolights_tabled_std.hedDownload
    prolights@tabledc@10ch.xmlDownload
    manufacturer fixture library (Link) Link

    Photometrics

    File name File size Download
    PDF Photometrics Tabledc_PHOTOMETRICS.pdf 528KB
    Dialux Download DIALux product catalogue -

    CAD symbols & drawings

    File name File size Download
    3D RFA Tabledc_3D_REVIT.rvt 394KB
    3D SKP Tabledc_3D_SKETCHUP.skp 230KB
    2D Tabled-c_2D.dwg 570KB
    3D Tabled-c_3D.dwg 1MB
    2D cad symbols Tabledc_2DSYMBOLS.dwg 81KB
    Technical drawing TABLEDC_TECHNICAL DRAWINGS.zip 352KB

    Tech docs

    File name File size Download

    Software

    File name File size Download

    Firmware

    Only the latest firmware versions for each hardware revision are available for download.
    To download previous firmware versions, log in to the customer care section.
    Update Tool: UPBOX1UP5 {CodiceUpBox}
    Check hardware changelog before downloading firmware
    Revision Release date Firmware changelog HW Compatibility
    1.2 STABLE 24/10/2019 Added new dmx mode ADV@12ch The new mode include: - crossfade channel trought 2 layers to achive linear crossfade form any RGB colors (mixed, presets or effects) to White channel. - CTO on Colors Rev. 2
    Rev. 1
    Rev. 1.0
