Tabled W
ORDER CODE: TABLEDW
Share me

Immagine Principale
  • TABLEDW
  • TABLEDW
  • TABLEDW
  • TABLEDW
  • TABLEDW
  • Tabled W
    Code Tabled Extensions Bases Recharger IRC Avail.
    TABLED-W x1 No x1 TABLEDDSK22W 1x1 No
    TABLED-WPACK
    x4 x2 TABLEDEXT-027 x4 TABLEDDSK22W 1x4 x1

    Tabled W is an ingenious product which offers beautiful table lighting for events whilst keeping with the atmosphere in the room. Based on a stunning aesthetic design, it is not only a stylish centerpiece but fast to deploy and easy to use. With local control it can either act as a standalone table light or part of a spectacular event lighting package.

    Features:
    Battery powered for fast deployment and accurate control
    Tunable white LED source with 360° coverage for standard catering round tables of 1.8m

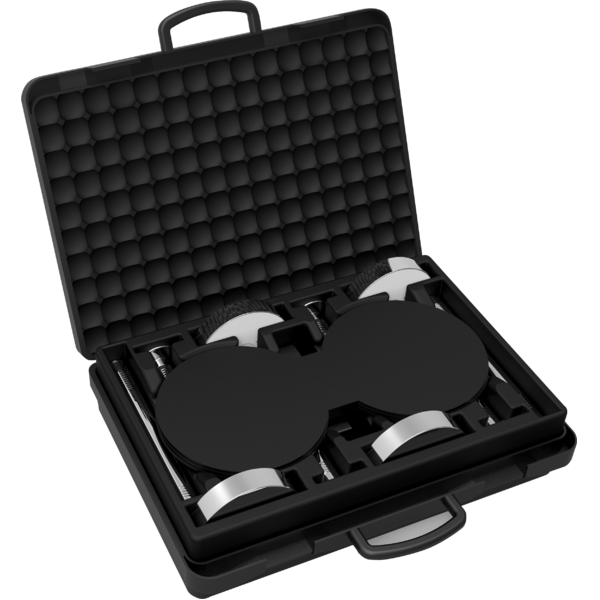

    Available in a TABLED-W PACK featuring 4 lights with accessories in an ABS case

    LIGHT SOURCE
    • Source:
      6x1 W + 6x1
      W
      Warm White + Cold White LEDs
    • CCT:
      3.200 K - 5.600
    • CRI:
      80
    • Source life expectancy:
      > 50.000 h
    OPTICS
    • Beam angle:
      360
      °
      designed to light up standard 160/180 cm ceremony tables
    COLOUR SYSTEM
    • Colour mixing:
      tunable white
    DYNAMIC EFFECTS
    • Static mode:
      selection of static colour
    • Manual mode:
      manual adjustment of colour
    BODY
    • Hardware on-board:
      magnetic base
    • Body:
      sturdy die-cast aluminium body
    • Body colour:
      mirror finishing
    • Other:
      1 x TABLEDDSK22W and 1x1 recharger included inside single unit box
    CONTROL
    • Firmware upgrade:
      yes, via USB - DMX interface (UPBOX1) not included
    • IR:
      infrared sensor controlled by remote (included in the pack, not included in single unit)
    ELECTRONICS
    • Dimmer:
      linear 0 ~ 100% electronic dimmer
    • Strobe / shutter:
      1 - 30
      Hz, electronic
    • Operating temperature:
      0° ~ +35°
    ELECTRICAL
    • Mains power supply:
      DC 24 V, 1 A, 24 W
    • Max power consumption:
      9
      W
    BATTERY
    • Battery:
      2.200 m Ah - 14,8
      V
      lithium
    • Estimated battery life in single colour mode up to:
      W: 14h - A: 14,5
      h
    • Estimated battery life in full-mode up to:
      8
      h
    • Re-charge connection:
      power supply
    • Re-charge time:
      4
      h/max
    • Battery status:
      LED battery status indicator
    PHYSICAL
    • IP rating:
      30
    • Suspension and fixing:
      magnetic base to attach on every metal surface
    • Data connection:
      infrared sensor controlled
    • Dimensions (WxHxD):
      140x307x220
      mm
    • Weight:
      1,16
      kg
    CERTIFICATIONS / APPROVALS
    • Certifications / Approvals:
      CE, UKCA, RCM
    ITEMS REF.
    Accessory Code
    Description
    TABLEDW (optional)
    {ProdottiDaAccessorio}
    Steel security cable for hanging bodies, inox steel shackle
    TABLEDW (optional)
    {ProdottiDaAccessorio}
    Slim aluminium clamp, 200 kg loading, 48-51 mm tubes, M10 bolt
    TABLEDW (optional)
    {ProdottiDaAccessorio}
    RoadCase with internal compartments designed to contain 16 pcs of TABLED.
    TABLEDW (optional)
    {ProdottiDaAccessorio}
    Extension tube for Tabled
    TABLEDW (optional)
    {ProdottiDaAccessorio}
    RGBWA IR controller, 29 buttons, manual/static colours, auto programs, fade
    TABLEDW (include)
    {ProdottiDaAccessorio}
    Disks for TABLED
    TABLEDW (optional)
    {ProdottiDaAccessorio}
    Disks for TABLED
    TABLEDW (optional)
    {ProdottiDaAccessorio}
    Disks for TABLED
    TABLEDW (optional)
    {ProdottiDaAccessorio}
    Disks for TABLED
    TABLEDW (optional)
    {ProdottiDaAccessorio}
    Firmware uploader kit, USB IN, 5p XLR DMX OUT, DMX OUT
    TABLEDW (optional)
    {ProdottiDaAccessorio}
    Interface used between UPBOX1U and TABLED for make firmware upgrade
