TOURING15A discontinued

ORDER CODE: TOURING15A

Share me

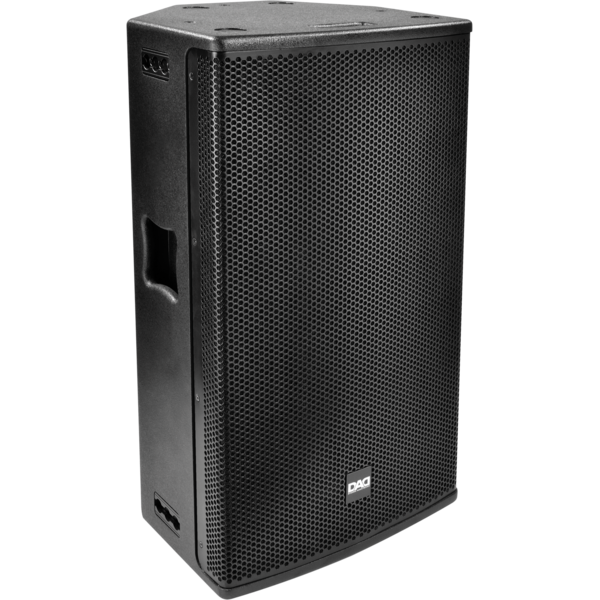

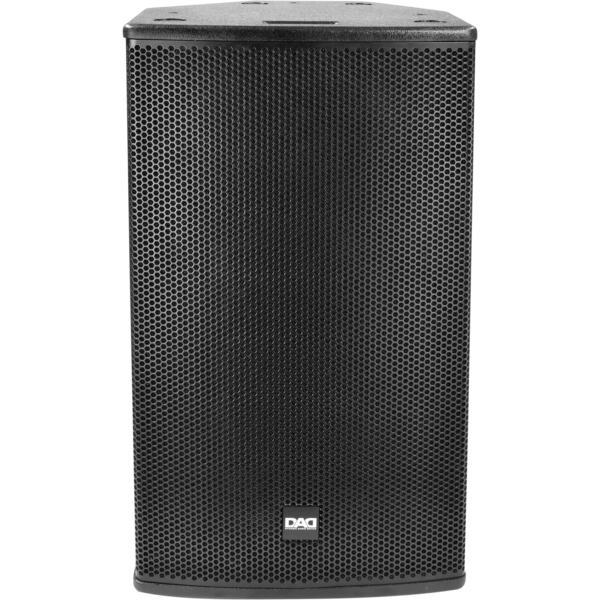

Active loudspeaker, D-class bi-amp, 2-way 1000 W+400 W, 131dB SPL

Features:
Low frequency: 15'' neodymium woofer/3''v.c.
High frequency: 2'' driver/3''v.c.
Frequency response: 45-18000 Hz (±3dB)
Excellent clarity in the reproduction of voice and music for live and recorded performances
Installed into theatres and congress halls owing to excellent acoustic performance

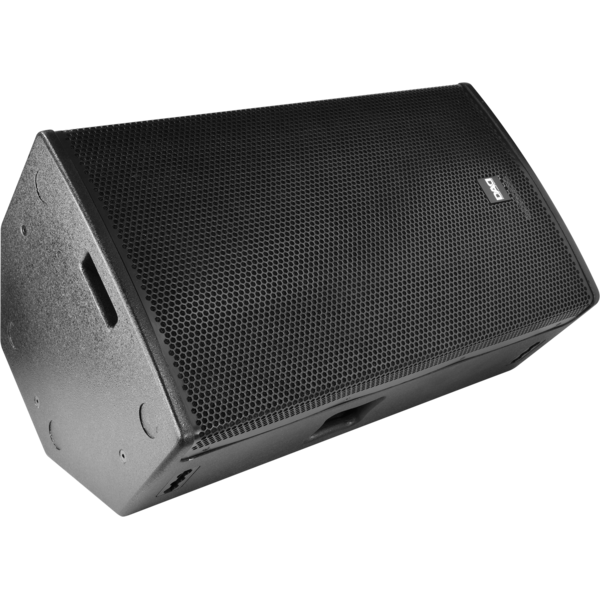

Birch plywood enclosure, designed for stage-monitor application
DSP with 4 presets (full range-HPF-coupling-monitor) for selection of optimal frequency response

LOUDSPEAKER

System type:

active 2 way

COMPONENTS

Low frequency:

15
''

neodymium woofer / 3'' v.c.
High frequency:

2
''

driver/3''v.c.

FEATURES

Built-in amp LF/HF:

1000+400
W
SPL max:

131
dB

@1m (free field)

ACOUSTICAL SPECIFICATIONS

SPL cont/peak:

125/131
dB

@1m (free field)
Frequency response:

45-18000
Hz

(±3dB)
Coverage angle HxV:

90x60
°
Cross over frequency:

1100
Hz

ELECTRONICS SPECIFICATIONS

Amplifier:

digital
Input sensitivity:

4 dBu (1,228Vrms) adjustable
Protection:

RMS limiter, fast limiter, temp.
User controls:

full range-HPF-coupling-monitor
Processor:

DSP
Operating voltage/frequency:

220 V ±10%, 50 Hz

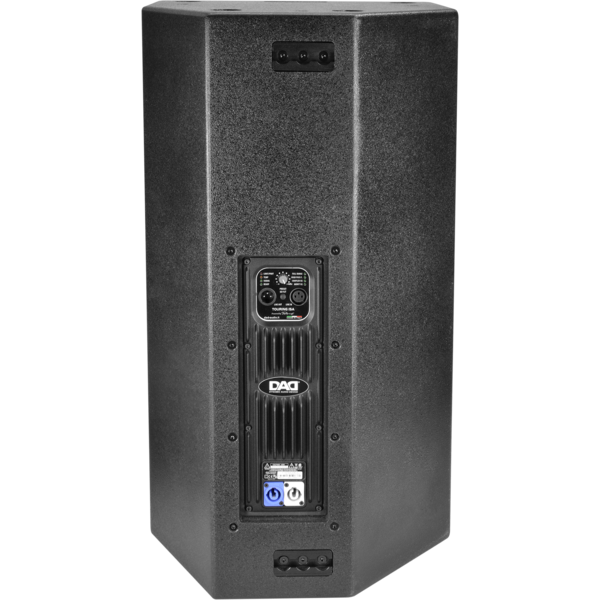

INPUT/OUTPUT CONNECTORS

Input signal:

XLR IN/OUT
Power connection:

powerCON IN/OUT

CABINET CONSTRUCTION

Cabinet material:

18
mm

birchplywood
Sospension system:

eyebolt, fly track, 35 mm pole mount
Angle:

45-30
°

monitor applications
Handles:

4 on side

PHYSICAL

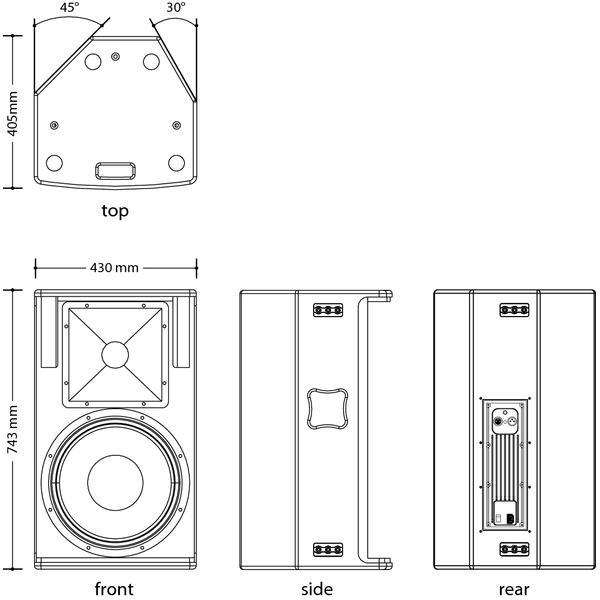

Dimensions (WxHxD):

430x755x405
mm
Weight:

34
kg

ITEMS REF.

Accessory Code

Description

TOURING15A (optional)

BAGTOURING15
