WIZARD
ORDER CODE: WIZARD
Share me

Immagine Principale
  • WIZARD
  • WIZARD
  • WIZARD
  • WIZARD
  • WIZARD
  • WIZARD
  • WIZARD

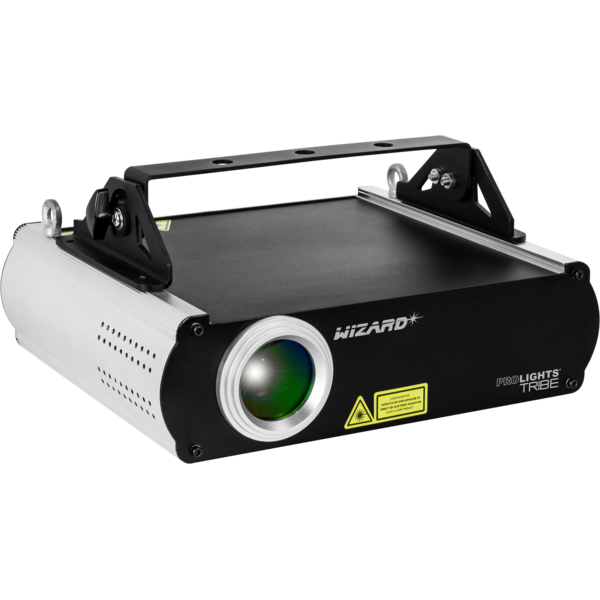

  • WIZARD is a professional graphics laser projector designed to create amazing laser shows in large venues. RGB additive colour mixing allows the generation of 7 colours with a sharp bright output, relying on total 820 mW power (100 mW green + 120 mW red + 600 mW blue) projecting images, sceneries and visible beams up to a long distance. WIZARD can be controlled through ILDA-compatible software, DMX protocol, sound show, pre-programmed auto shows, show uploaded through an SD card memory.

    Features:
    Light source: 100 mW 532 nm green + 120 mW 638 nm red + 600mW 450nm blue diodes
    DMX/ILDA protocol compatible
    SD slot to play laser shows saved to an SD memory card
    Visual effects: creation and reproduction of 3D animations, texts, logos, beams and waves

    LIGHT SOURCE
    • Light source:
      diode 100 mW 532 nm green + 120 mW 638 nm red + 600 mW 450 nm blue
    • Scan frequency:
      20
      KHz
    • Laser radiation class:
      4
    OPTICS
    • Beam angle:
      1 - 36
      °
    COLOUR SYSTEM
    • Colour mixing:
      7 colours (red, green, blue, yellow, cyan, magenta, white)
    DYNAMIC EFFECTS
    • Auto mode:
      built-in programs with execution speed adjustment
    • Sound mode:
      music activation through internal microphone and sensitivity control
    BODY
    • Body colour:
      black
    CONTROL
    • Protocols:
      DMX, ILDA
    • DMX channels:
      2 DMX mode up to 24
      channel
    • Display:
      LCD display
    ELECTRICAL
    • Mains power supply:
      AC 230 V, 50 - 60 Hz
    • Max power consumption:
      30
      W
    PHYSICAL
    • Suspension and fixing:
      bracket for hanging and positioning
    • Signal connection:

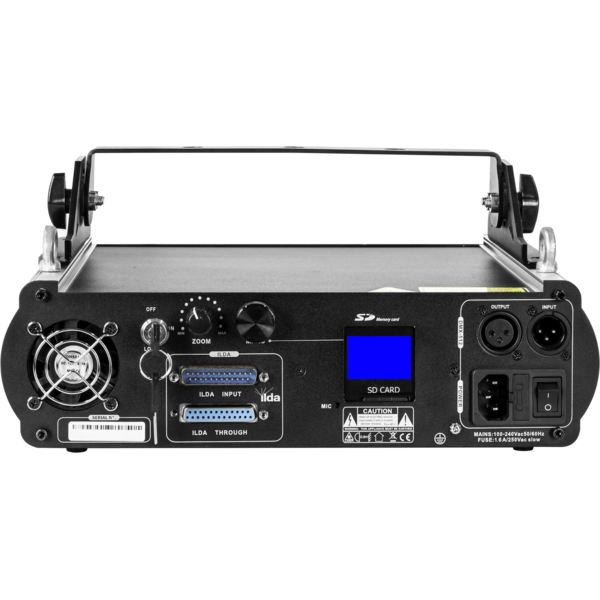

      ILDA input, ILDA trough, DMX 3p IN/OUT, SD memory slot
    • Power connection:
      IEC 10 A IN
    • Dimensions (WxHxD):
      320x260x160
      mm
    • Weight:
      3,75
      kg
    CERTIFICATIONS / APPROVALS
    • Certifications / Approvals:
      CE, UKCA
    BOX CONTENT
    • 1 x WIZARD
    • 1 x 1,5 meters BARE END - IEC power cable
    • 1 x key for switch on/off
    • 1 x SD card
    • User Manual
    ITEMS REF.
    Accessory Code
    Description
    WIZARD (optional)
    {ProdottiDaAccessorio}
    Slim aluminum clamp, 200kg loading, 48-51mm tubes, M10 bolt, Black
    WIZARD (optional)
    {ProdottiDaAccessorio}
    Steel security cable for hanging bodies, inox steel shackle, L=60 cm, black
    WIZARD (optional)
    {ProdottiDaAccessorio}
    Power cable VDE socket, Shuko plug
    WIZARD (optional)
    {ProdottiDaAccessorio}
    Dmx cable HC5340. CANC3MXX XLR 3p->CANC3FXX XLR (f) 3p, L.3m

    Data sheet & specs

    File name File size Download

    User manual

    File name File size Download
    Wizard_USER_MANUAL_ITEN.pdf 3MB

    DMX chart & personalities

    File name File size Download

    manufacturer fixture library (Link) Link
    prolights_wizard.d4Download
    manufacturer fixture library (Link) Link
    manufacturer fixture library (Link) Link
    wizard_24ch.fdf Download

    Photometrics

    File name File size Download

    CAD symbols & drawings

    File name File size Download

    Tech docs

    File name File size Download

    Software

    File name File size Download

    Firmware

    Only the latest firmware versions for each hardware revision are available for download.
    To download previous firmware versions, log in to the customer care section.
    Update Tool:
    Check hardware changelog before downloading firmware
    Revision Release date Firmware changelog HW Compatibility
    0.1 STABLE 23/07/2018
