WSBBF1G5 discontinued
ORDER CODE: WSBBF1G5
Share me

Immagine Principale
  • WSBBF1G5
  • WSBBF1G5
  • WSBBF1G5
  • WSBBF1G5
  • WSBBF1G5

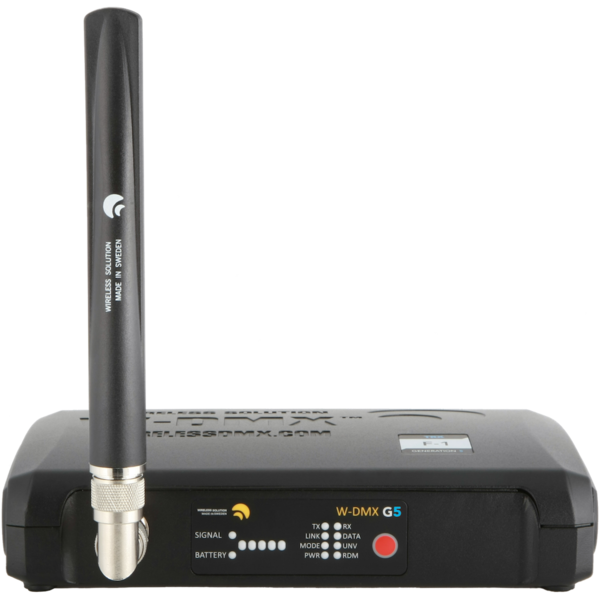

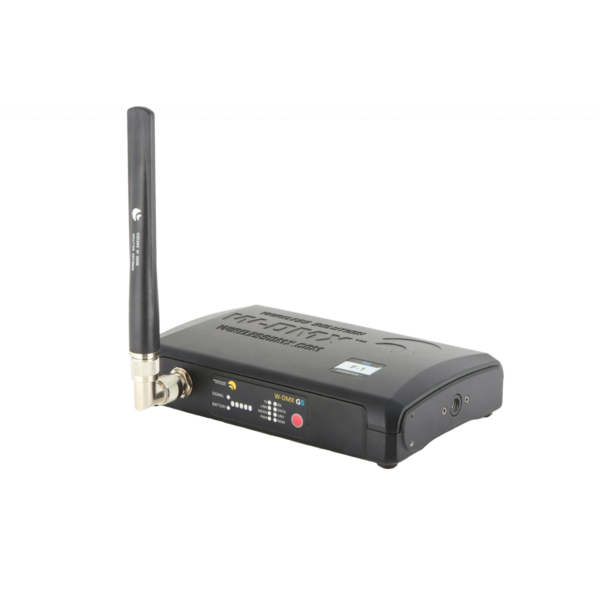

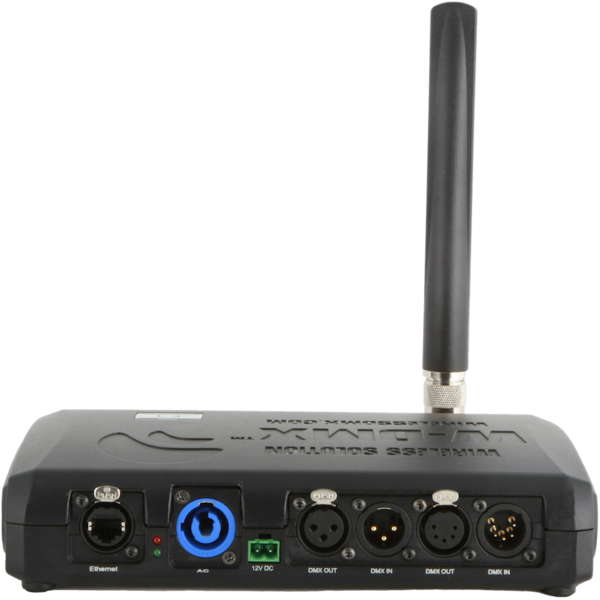

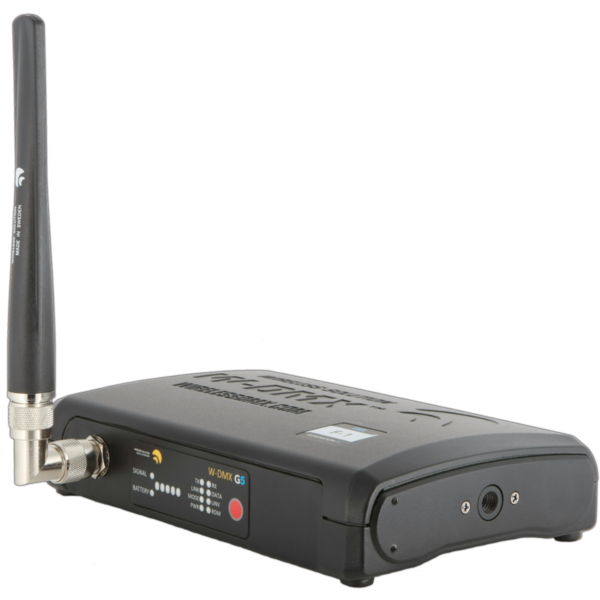

  • The W-DMX™ Black&White& WhiteBox F-1 G5 transceiver is the perfect single universe wireless DMX solution for theatre and concert touring. The unit supports both transmit and receive modes of DMX and RDM signals, and uses 2.4 GHz, 5.2 GHz and 5.8 GHz frequency bands, giving access to more channels, and alternatives to crowded wireless environments.

    It also offers an optional Ethernet protocol support, be it Art-Net, sACN or ETC Net, on both incoming and outgoing streams.



    * Triple band function with 5GHz may not be available in all countries, please contact your local dealer or Wireless Solution for more information.

    Features:
    Single universe DMX/RDM transmitter & receiver
    W-DMX™ G5 protocol – backward compatible with G3 and G4S
    Double-Up mode in G5: two universes in one box
    Tough die-cast metal casing with M10 connector for clamp or spigot
    Invisi-wire high-fidelity technology – output matches input
    Datasafe technology – wireless fidelity and error correction
    Less than 5 ms latency
    Complete DMX512 support
    Full RDM support
    One-button-to-go technology for ease of use
    Adaptive frequency hopping radio
    2.4 GHz – license-free worldwide
    5.2 GHz – new, exclusive to W-DMX™ *
    5.8 GHz – provides access to ‘virgin’ spectrum *
    Expandable with Ethernet lighting protocol support (with WSA40309G5 Op.)
    90v – 250v AC input or 12V DC input
    Interchangeable antennas – easily expand your range
    Ships standard with 3dBi indoor antenna
    Compatible with all W-DMX™ OEM products

    ITEMS REF.
    Accessory Code
    Description
    optional
    WI-FI co-existence tool incl. software
    optional
    WIRELESS SOLUTION, ethernet card for Black&White& WhiteBoxG5, WhiteBoxG5 and ProBoxG5
    include
    WDMX, Antenna Outdoor 3, OMNI, Dual Band, 3dBi. Black&White& White

    Data sheet & specs

    File name File size Download

    User manual

    DMX chart & personalities

    File name File size Download

    Photometrics

    File name File size Download

    CAD symbols & drawings

    File name File size Download

    Tech docs

    File name File size Download

    Software

    File name File size Download

    Firmware

    Firmware update instructions

    1 Download the firmware (only the latest version is available - contact support@prolights.it for more info)

    2 Download the updater software UpBox_Tool

    3 Follow the instructions in the following guide
    -------------------------------------------------------------------------------
    Notes:
    • Firmware updates require the UPBOXPRO compatible with all Prolights products
    • It's possible to use UPBOX1 and UPBOX2 *DISCONTINUED* checking the compatibility in the below tab
    • UpBox_Tool  software is compatible with all UPBOX interfaces
    • To update NET boards with .EHEX files a network cable and Professional Uploader software it's needed. It's possible to follow this guide
    Update Tool: {Upbox}
    Check hardware changelog before downloading firmware
    Revision Release date Firmware changelog HW Compatibility
    3.5.20 STABLE 01/07/2021
    1 STABLE 06/11/2019 ADDED DOUBLE UP MODE
