IKOS12A
ORDER CODE: IKOS12A

Share me

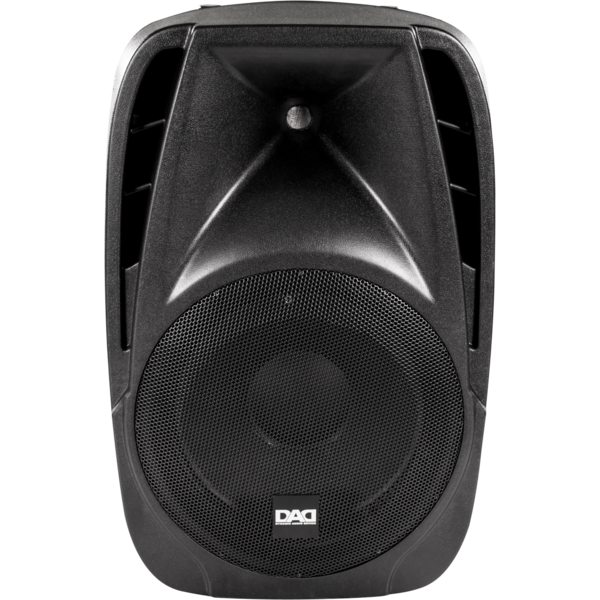

Active loudspeaker, bi-amp, 2-way 250+50 W, 126dB SPL

Features:
Low frequency: 12'' woofer/2''v.c.
High frequency: 1'' driver/1.4''v.c.
Frequency response: 60/20000 Hz (±3dB)
Media player: MP3-SD card with remote controller
Reproduction of voice and music for live and recorded performances
Cabinet designed for stage-monitor applications
Polypropylene box equipped with two side handles, one in the upper side and two wheels for the transport integrated
For portable PA systems, mobile DJ sets and voice/multimedia applications

LOUDSPEAKER

System type:

active 2 way

COMPONENTS

Low frequency:

12
''

woofer/2''v.c.
High frequency:

1
''

driver/1.4''v.c.

FEATURES

Built-in amp LF/HF:

250+50

/4/8Ohm
Media player:

MP3-SD card with remote controller

ACOUSTICAL SPECIFICATIONS

SPL cont/peak:

120/126
dB

@1m (free field)
Frequency response:

60/20000
Hz

(±3dB)
Coverage angle HxV:

90x45
°
Cross over frequency:

2500
Hz

ELECTRONICS SPECIFICATIONS

Amplifier:

AB class
Power:

250+50
W

/4/8Ohm
Input sensitivity:

4 dBu (1,228Vrms) adjustable
Protection:

limiter temp.
User controls:

mic, line, master, eq LF-HF
Media player:

MP3-SD card with remote controller
Operating voltage/frequency:

230 V - 50 Hz

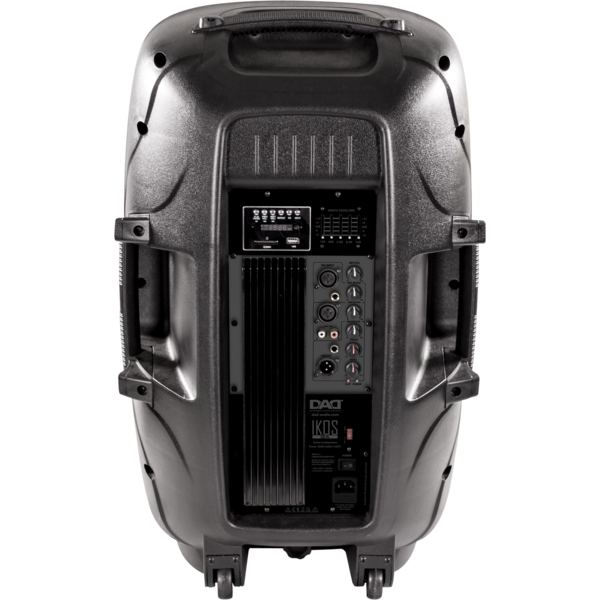

INPUT/OUTPUT CONNECTORS

Input signal:

XLR/jack bal. pin RCA unbal
Data:

USB port
Power connection:

VDE

CABINET CONSTRUCTION

Cabinet material:

3
mm

polypropilene
Sospension system:

35 mm mounting pole
Angle:

45
°

monitor applications
Handles:

2 on side

PHYSICAL

Dimensions (WxHxD):

380x590x315
mm
Weight:

12.2
kg

ITEMS REF.

Accessory Code

Description

IKOS12A (optional)

ACCA5462
